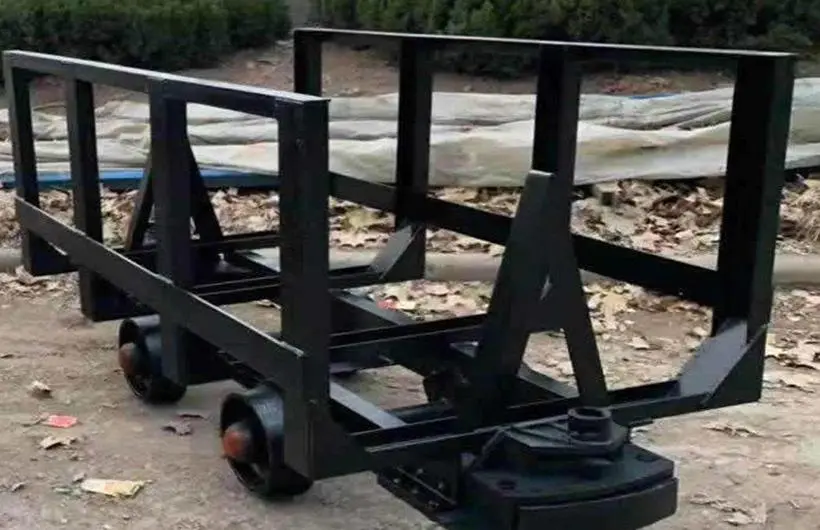

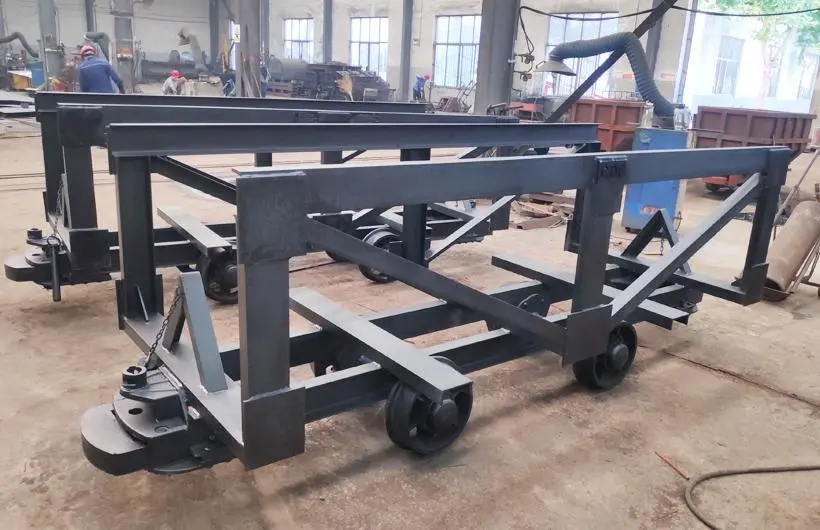

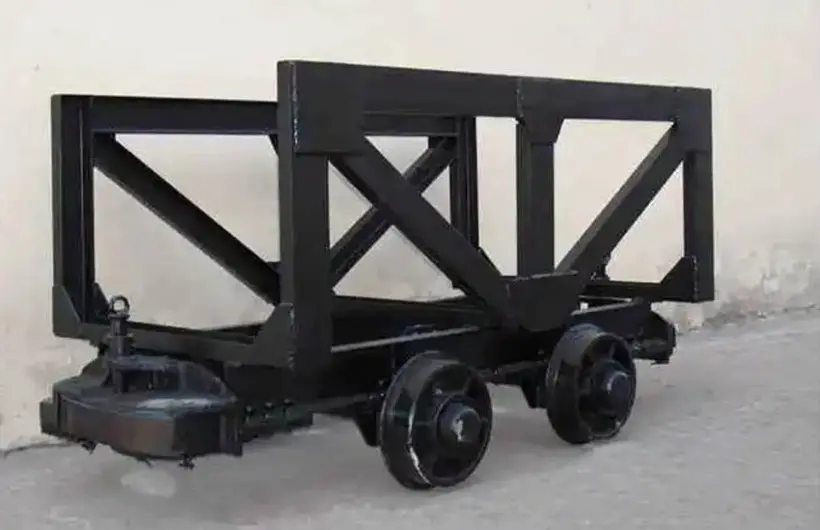

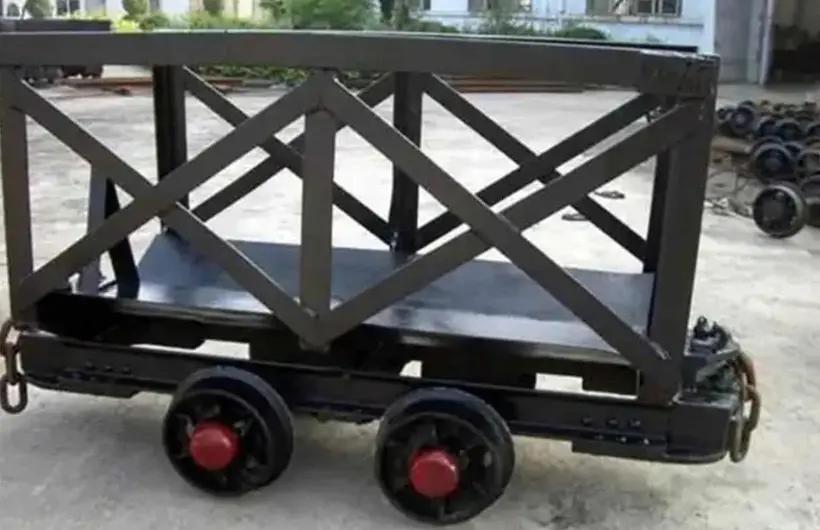

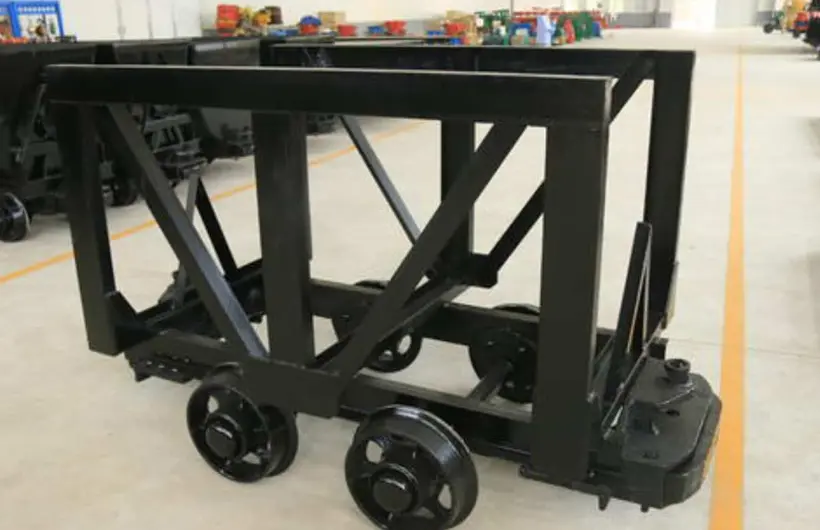

It is suitable for underground mining, transporting supporting materials and other materials along underground tunnels and surface industrial sites. The structure of the mining material vehicle is a vehicle without end walls, fixed on the frame, and the carriage is generally frame-type.
It is suitable for underground mining, transporting supporting materials and other materials along underground tunnels and surface industrial sites. The structure of the mining material vehicle is a vehicle without end walls, fixed on the frame, and the carriage is generally frame-type.
| supply mine car Technical Parameters | ||||||||||
| parameter | Loading capacity（T) | gaugeG(mm) | Dimensions(mm) | WheelbaseC | Wheel diameterD | Traction high H | Traction（kn） | Deadweight（kg） | ||
| model | L | B | H | |||||||
| YLC1-6 | 1 | 600 | 1900 | 1050 | 1200 | 600 | 300 | 320 | 60 | ≤580 |
| YLC1-7 | 1 | 762 | 1900 | 1050 | 1200 | 600 | 300 | 320 | 60 | ≤590 |
| YLC3-6 | 3 | 600 | 3000 | 1200 | 1200 | 1000 | 400 | 320 | 60 | ≤990 |
| YLC3-7 | 3 | 762 | 3000 | 1200 | 1200 | 1000 | 400 | 320 | 60 | ≤1040 |
| YLC3-9 | 3 | 900 | 3000 | 1200 | 1200 | 1000 | 400 | 320 | 60 | ≤1060 |
| MLC2-6 | 2 | 600 | 2000 | 880 | 1150 | 550 | 300 | 320 | 60 | ≤520 |
| MLC3-6 | 3 | 600 | 2400 | 1050 | 1200 | 750 | 300 | 320 | 60 | ≤570 |
| MLC5-6 | 5 | 600 | 3450 | 1200 | 1200 | 1100 | 350 | 320 | 60 | ≤920 |
| MLC5-9 | 5 | 900 | 3250 | 1320 | 1300 | 1100 | 350 | 320 | 60 | ≤940 |
| MLC10-6 | 10 | 600 | 3000 | 1150 | 1300 | 1000 | 300 | 320 | 60 | ≤870 |
