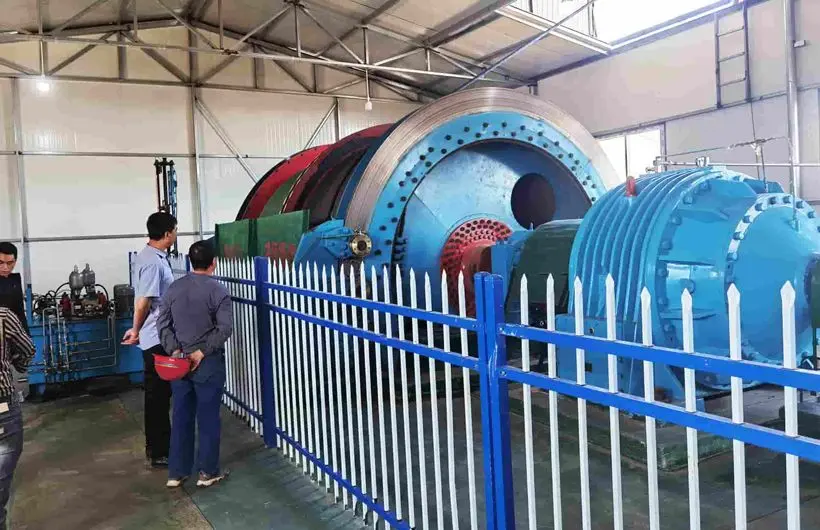

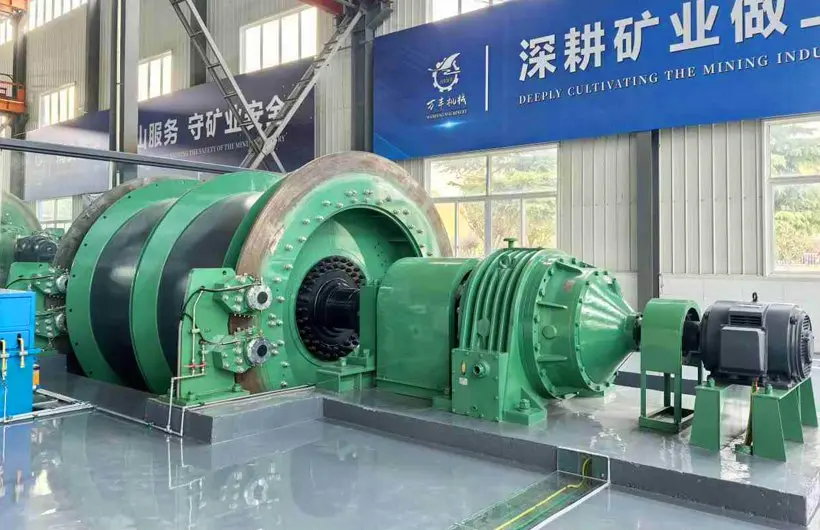

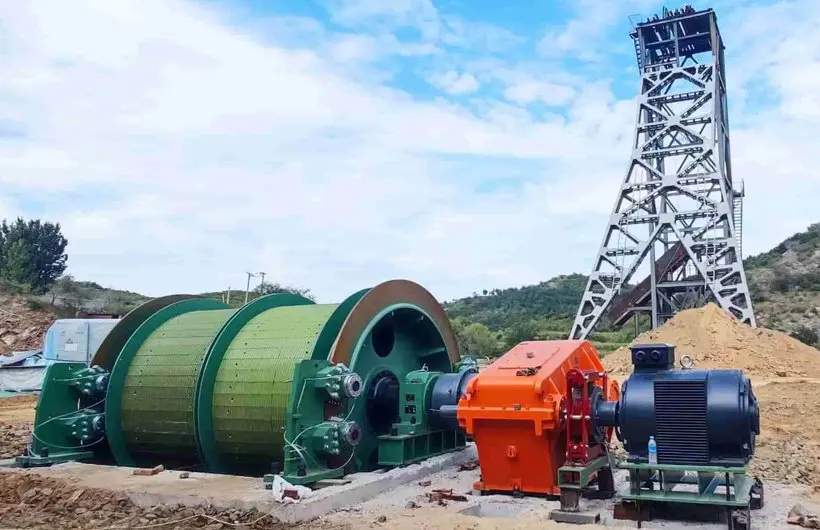

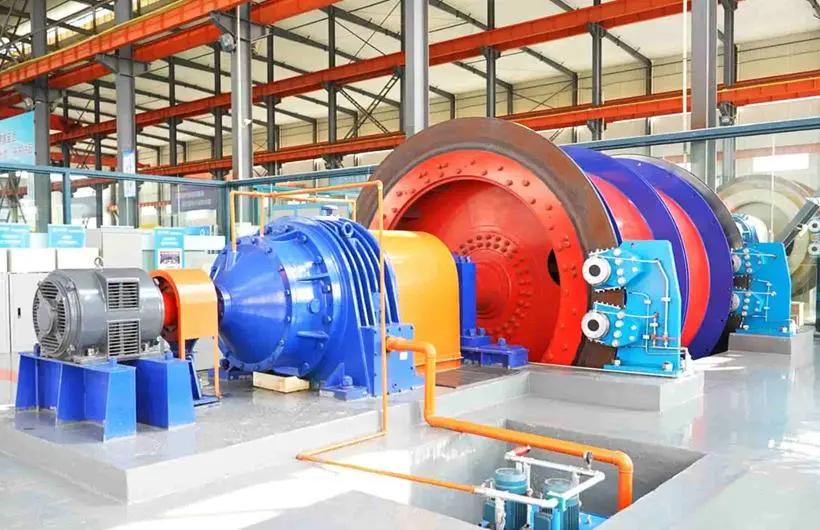

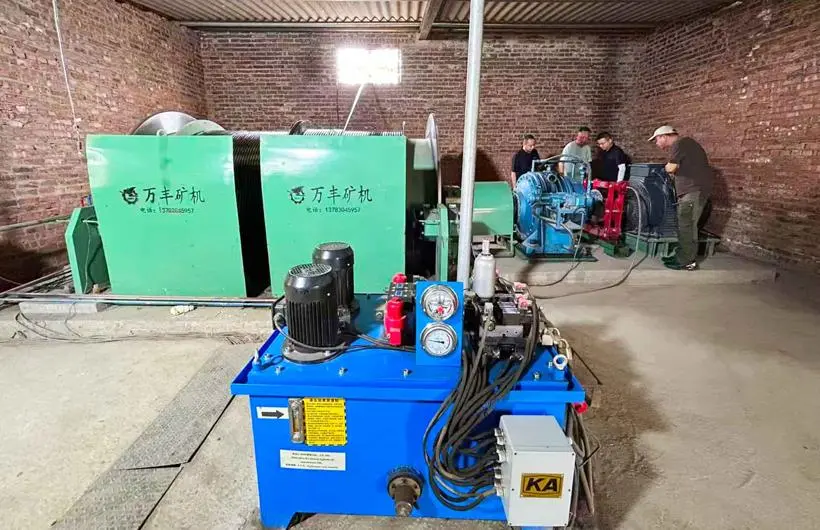

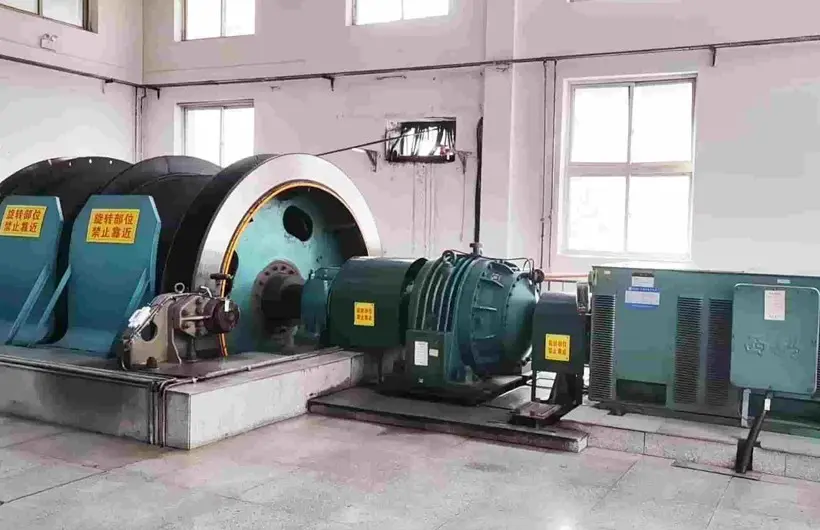

The 2JK mining hoisting winch features a double-drum structure and is primarily used in small and medium-sized metal and non-metal mines. It is suitable for hoisting ore in underground vertical and inclined shafts, removing waste rock, and lifting personnel and equipment. It can also be used for transporting materials on open-pit slopes or trenches. It excels in complex working conditions requiring simultaneous hoisting and lowering operations and can operate stably in dusty, high-humidity environments.
Product implementation standards
JK and 2JK series products are designed and manufactured according to the enterprise standard Q/HBWF003 "Single Rope Wrapped Mine Hoist", the industry standard AQ1035-2007 "Safety Inspection Specifications for Single Rope Wrapped Mine Hoists for Coal Mines", the national standard GB/T20961-2007 "Single Rope Wrapped Mine Hoists" and the "Coal Mine Safety Specifications".
Working principle
The motor transmits power to the drum of the wound wire rope through the reducer to achieve the lifting and lowering of the container; the speed is adjusted through electrical control; the disc brake is braked by hydraulic and electrical control; various position indication systems are used to indicate the depth of the lifting container; the whole machine is monitored and protected by a mechanical, electrical and hydraulic joint control system composed of various transmission sensors and control elements; and information transmission inside and outside the hoist is achieved through computer and network technology.
| 2JK Technical Parameters of Single-Rope Winding Mine Hoist | |||||||||||
| Model | Drum |
Max static tension |
Max static tension diff. |
Max wire rope diameter |
Hoisting Height / Transport Length | Maximum hoisting speed |
|||||
| Unit | Diameter | Width |
Double drum distance |
1st layer |
2nd layer |
3rd layer |
|||||
| m | mm | KN | KN | mm | m | m/s | |||||
| 2JK-2×1P | 2 | 2.0 | 1.00 | 1090 | 60 | 40 | 25 | 163 | 369 | 605 | 7.0 |
| 2JK-2×1.25P | 1.25 | 1340 | 222 | 487 | 784 | ||||||
| 2JK-2×1.5P | 1.50 | 1590 | 245 | 554 | 908 | ||||||
| 2JK-2.5×1.2P | 2.5 | 1.20 | 1290 | 90 | 55 | 31 | 205 | 453 | 738 | 9.0 | |
| 2JK-2.5×1.5P | 1.50 | 1590 | 276 | 595 | 953 | ||||||
| 2JK-2.5×1.8P | 1.80 | 1890 | 332 | 715 | 1145 | ||||||
| 2JK-3×1.5P | 3.0 | 1.50 | 1590 | 130 | 80 | 37 | 270 | 584 | 942 | 12.0 | |
| 2JK-3×1.8P | 1.80 | 1890 | 341 | 727 | 1159 | ||||||
| 2JK-3×2P | 2.00 | 2090 | 378 | 807 | 1286 | ||||||
| 2JK-3×2.2P | 2.20 | 2290 | 416 | 888 | 1415 | ||||||
| 2JK-3.5×1.7P | 3.5 | 1.70 | 1790 | 170 | 115 | 43 | 312 | 667 | 1074 | ||
| 2JK-3.5×2.1P | 2.10 | 2190 | 407 | 858 | 1364 | ||||||
| 2JK-3.5×2.4P | 2.40 | 2490 | 464 | 978 | 1555 | 14.0 | |||||
| 2JK-3.5×2.6P | 2.60 | 2690 | 502 | 1056 | 1680 | ||||||
| 2JK-4×1.7P | 4.5 | 1.70 | 1790 | 245 | 165 | 50 | 318 | 670 | 1072 | ||
| 2JK-4×2.1P | 2.10 | 2190 | 392 | 828 | 1324 | ||||||
| 2JK-4.5×2.2P | 2.20 | 2290 | 280 | 185 | 56 | 410 | 864 | 1385 | |||
| 2JK-5×2.3P | 5.0 | 2.30 | 2390 | 350 | 230 | 62 | 429 | 900 | 1446 | ||
| 2JK-5.5×2.4P | 5.5 | 2.40 | 2490 | 425 | 280 | 68 | 447 | 936 | 1506 | ||
| 2JK-6×2.5P | 6.0 | 2.50 | 2590 | 500 | 320 | 75 | 457 | 957 | 1543 | ||
|
Note 1: Maximum lifting height or inclined length is a reference value calculated based on the maximum wire rope diameter. |
|||||||||||
