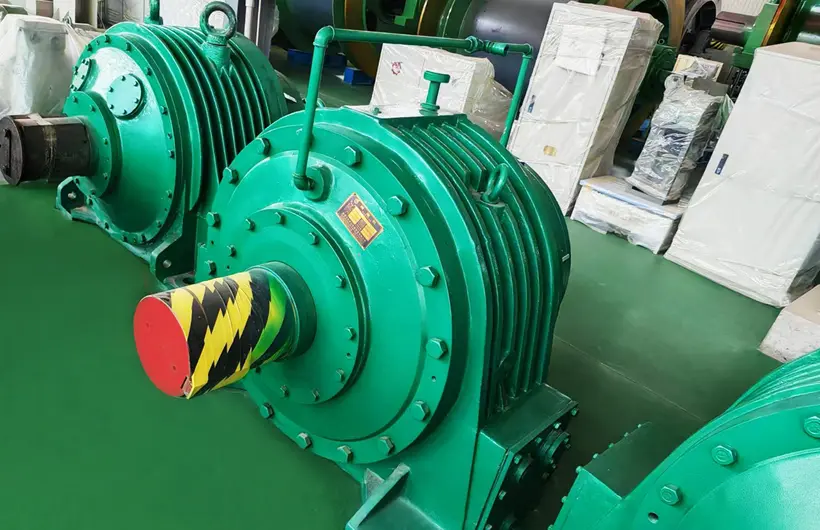

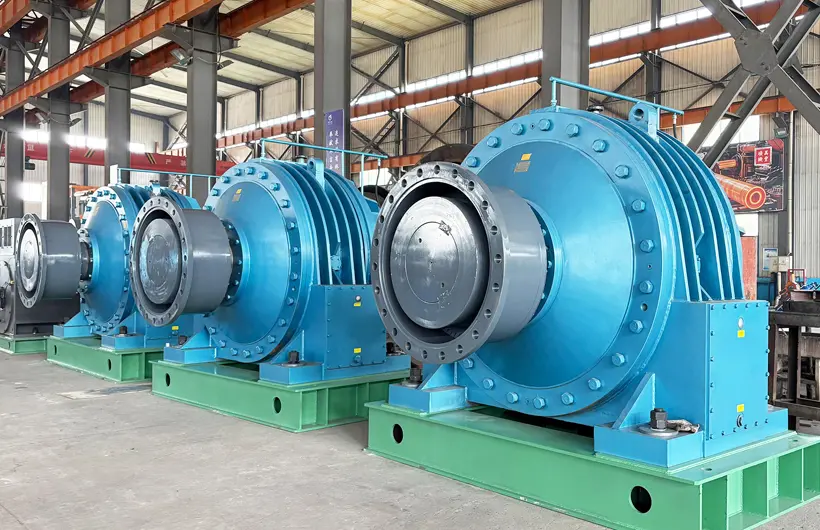

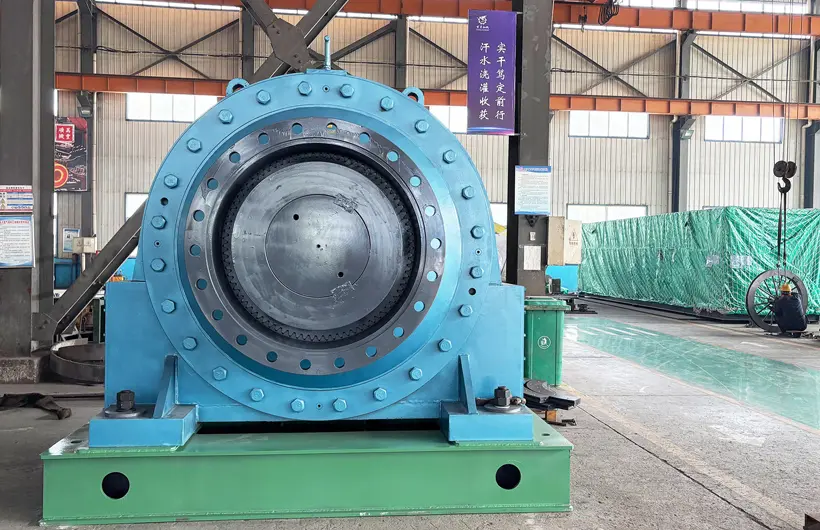

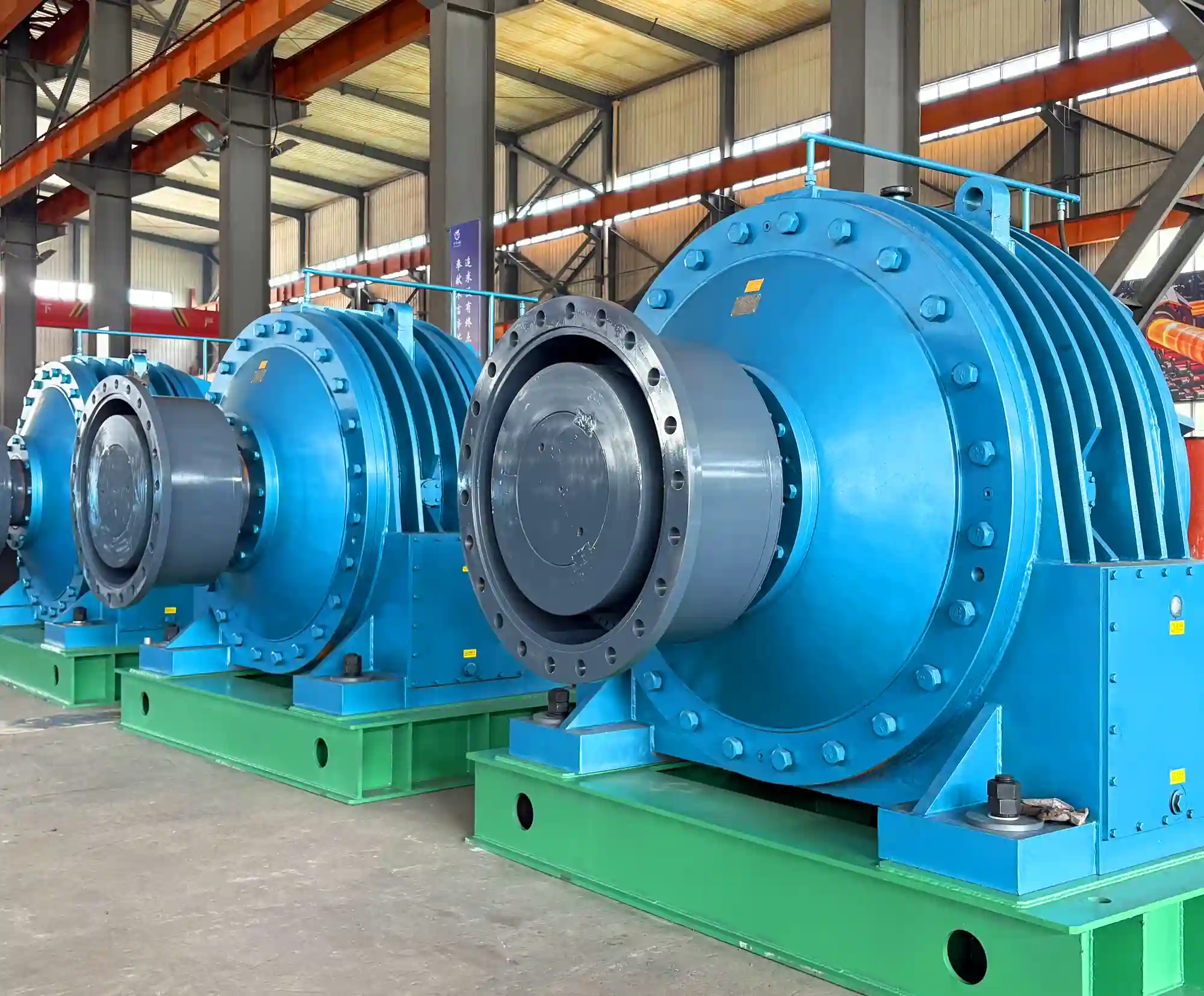

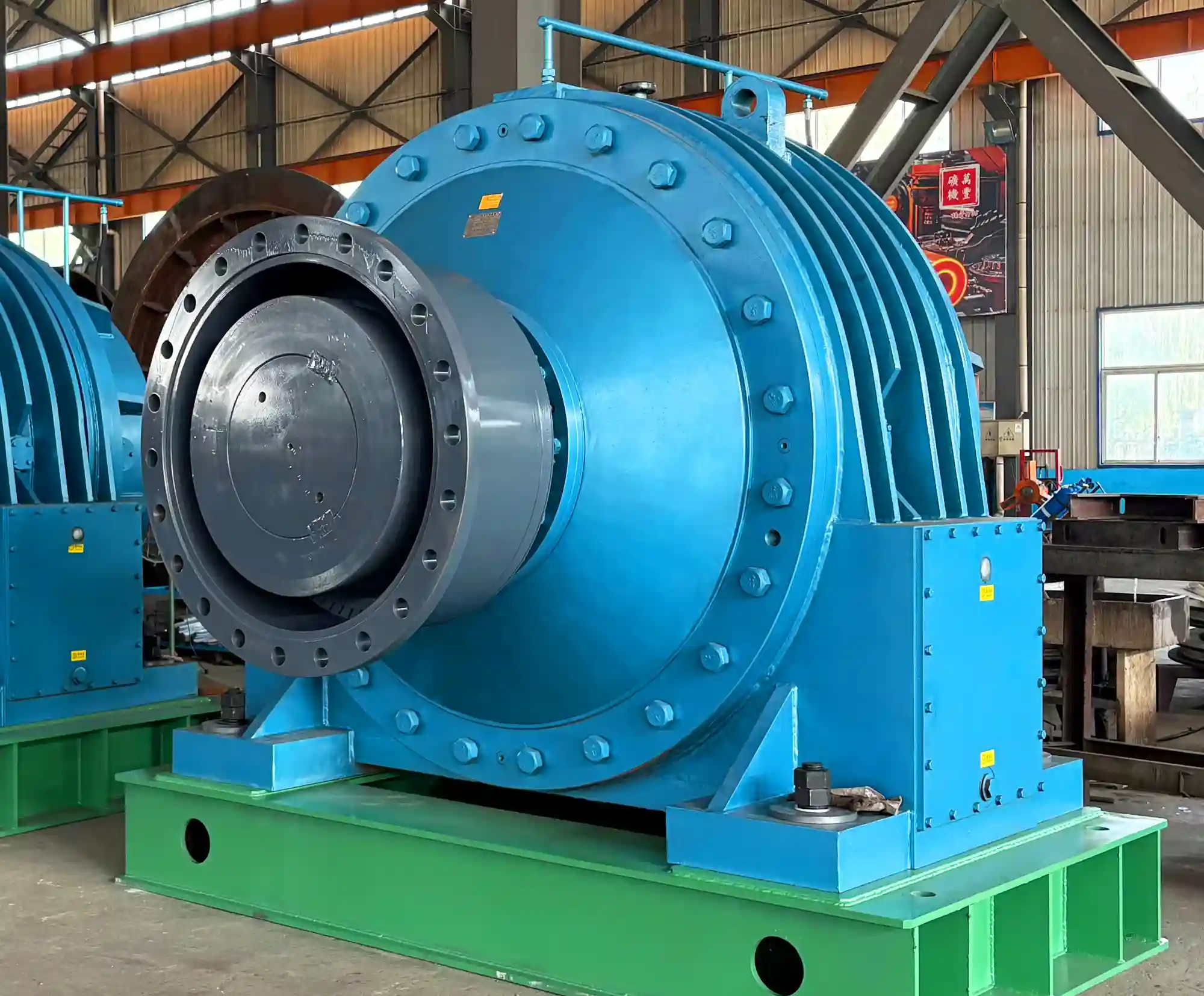

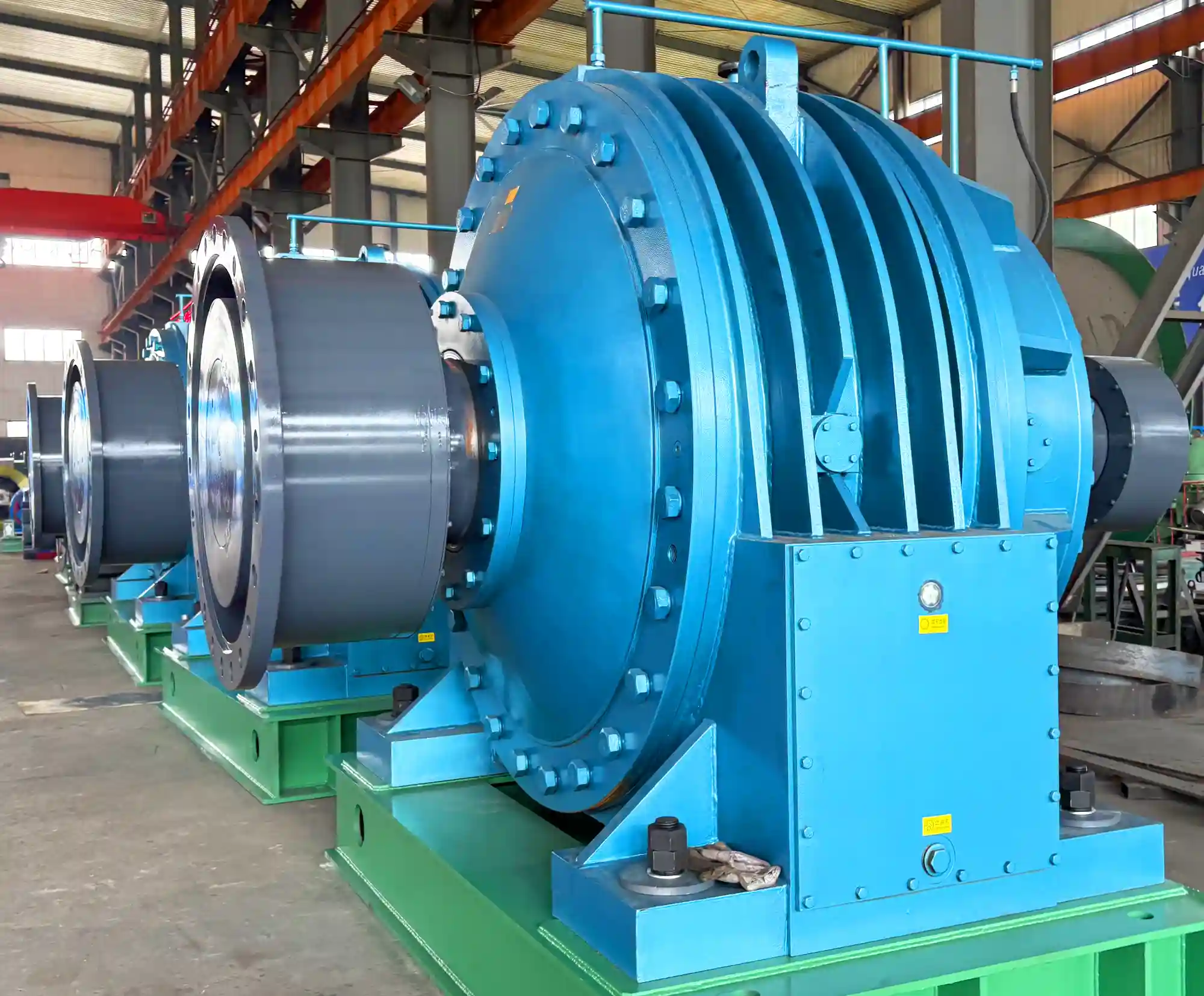

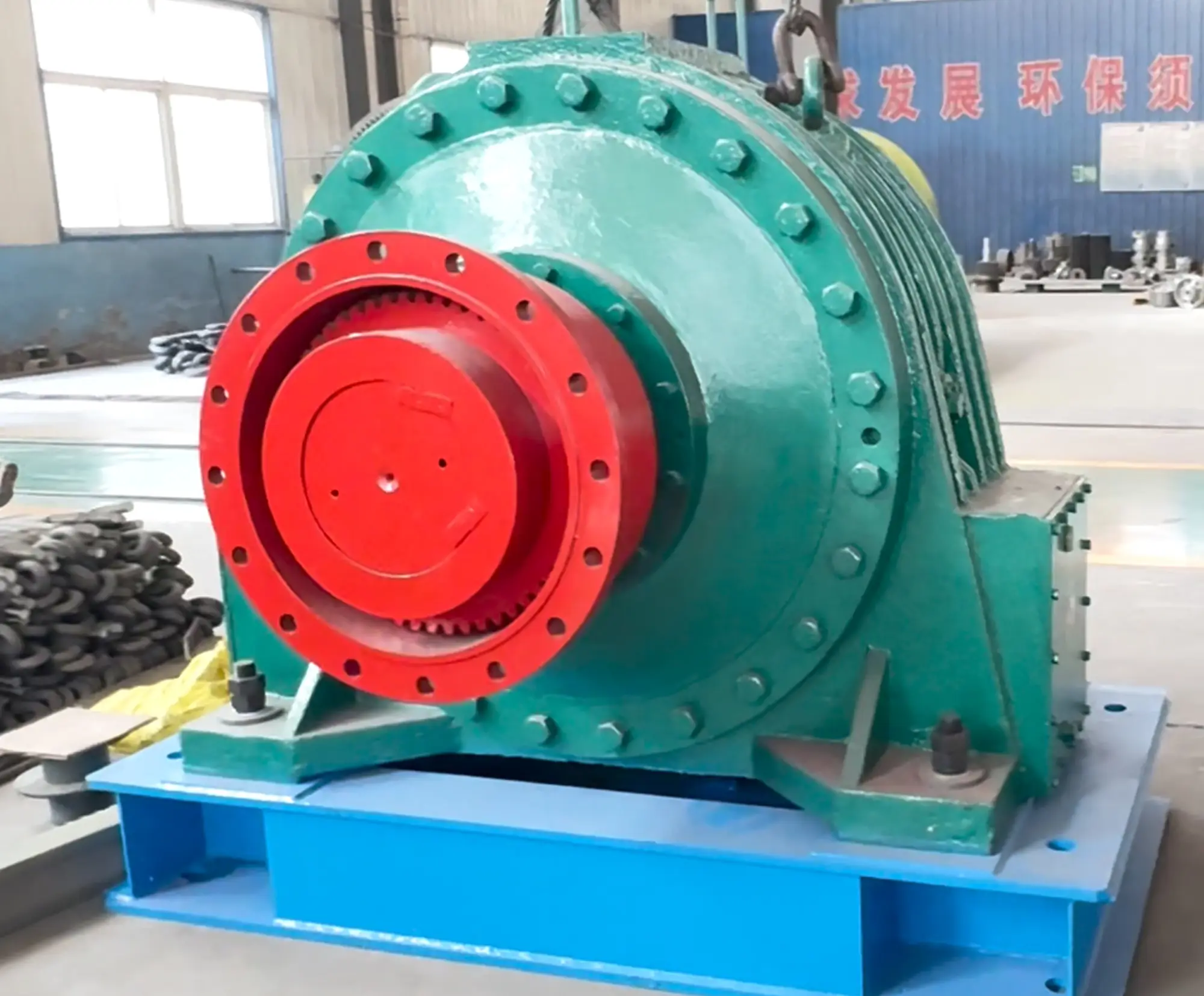

NBD Planetary Gear Reducer

Planetary gear reducer fits high-load long-cycle high-reliability industrial applications. Covers heavy-duty fields demanding extreme strength precision stability drive systems. Acts power heart of modern industrial core equipment.
Mining Machinery: Serves as the power transmission core for mine hoists, high-capacity belt conveyors, scraper conveyors, and crushers, handling underground material lifting and transportation.
Heavy-Duty Transport: Provides stable drive units for large mine transport systems (e.g., locomotive drives), ensuring the continuity and safety of heavy-load transportation.

Send Message

FacebookTwitterLinkedInPinterestShare

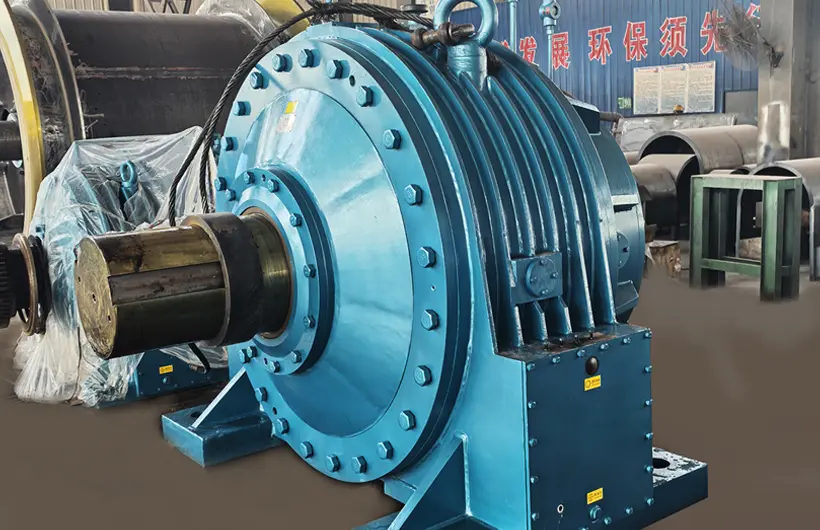

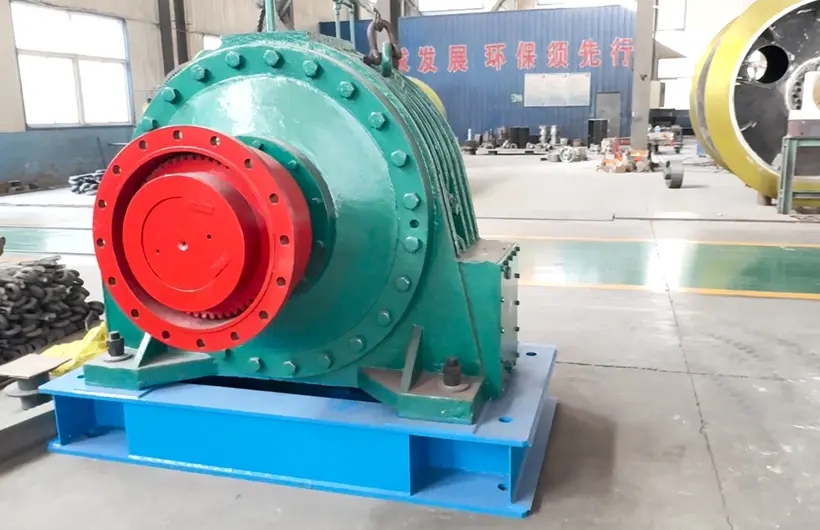

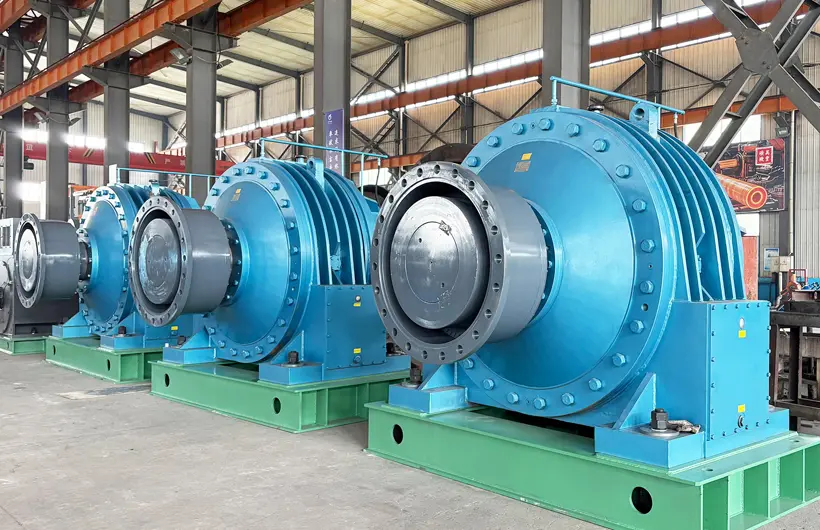

Structure Features & Working Principle:
Planetary gear reducer mining hoists core drive unit engineered extreme vertical shaft hoisting conditions, integrating high reliability, high power density, long service life design.
High-speed input stage: Parallel-axis helical gears provide primary reduction. Gears are carburized, quenched, precision ground, ensuring smooth power input quiet operation.
Core reduction stage: Consists of 1–3 stages series-connected planetary gears. Power enters via the sun gear, driving multiple planet gears that engage fixed internal gear ring to turn planet carrier. This "power-split" structure evenly distributes loads, delivering high gear ratios and rigidity.

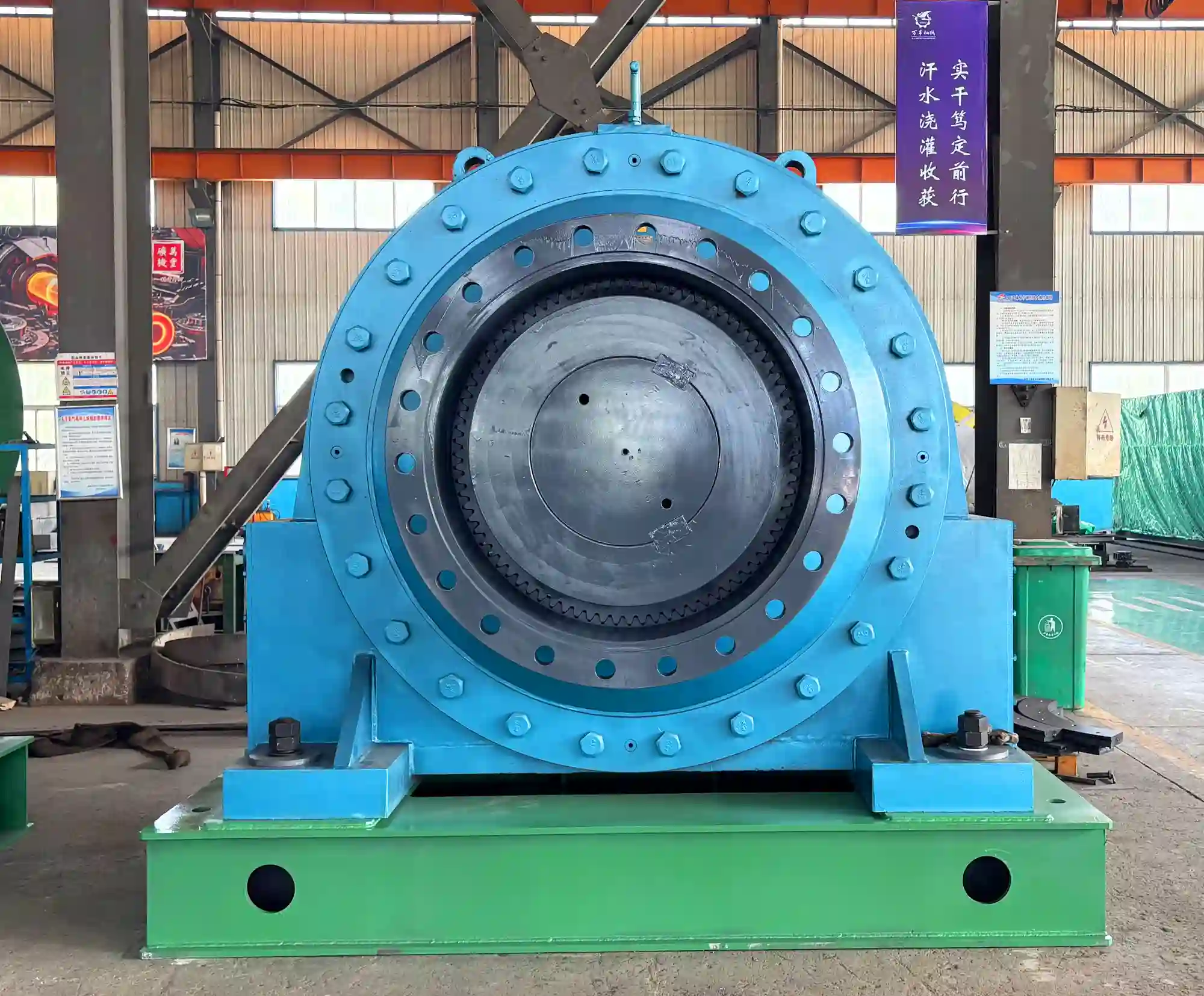

Low-speed output stage: Reinforced one-piece planet carrier heavy-duty flange directly outputs high torque, ensuring secure connection to the hoist drum.

Primary Reduction: Motor power is initially reduced via the input-stage parallel gears.
Torque Multiplication via Power Split: Power drives planetary stage. Sun gear–planet gears–internal gear ring meshing achieves torque split multiplication sharp speed reduction. Performance amplified multi-series stages.
High-Torque Output: Final stage’s massive torque is transmitted through robust output components, directly driving the hoist drum to lift/lower loads.
Key Advantages: Based on the "power-split" principle, gears and bearings carry only a fraction total output torque. This delivers a compact design, high efficiency (>97%), smooth operation, and strong impact resistance.
