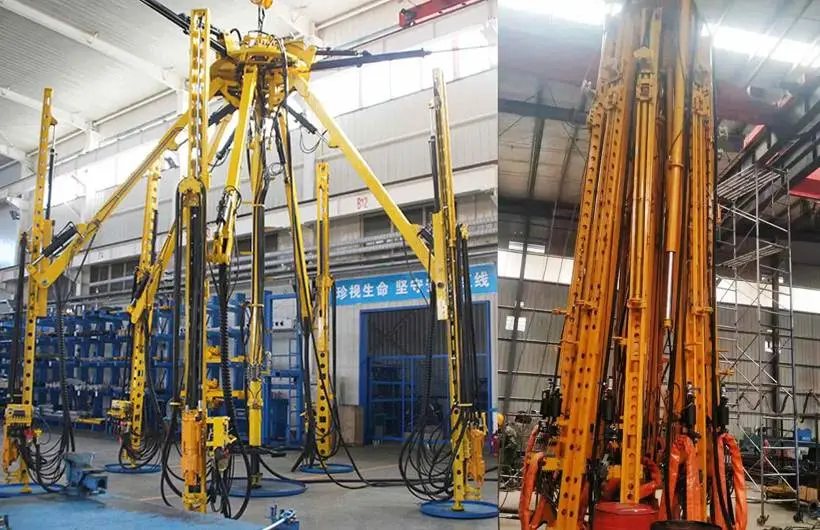

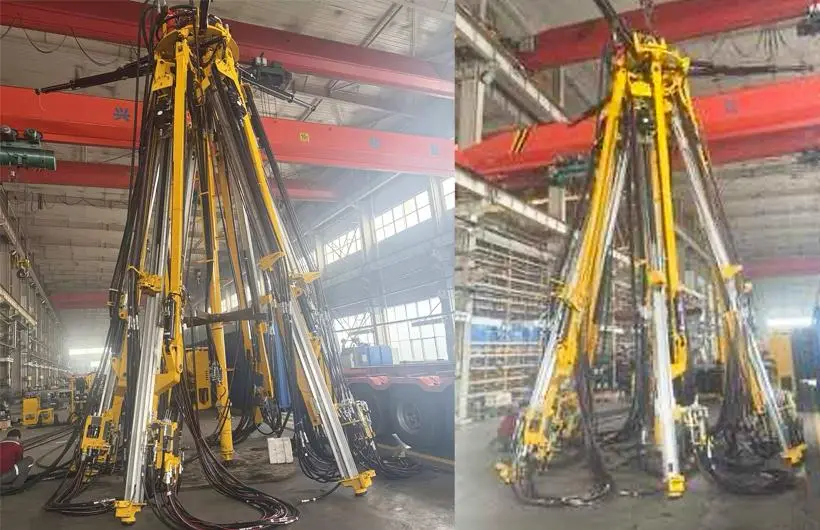

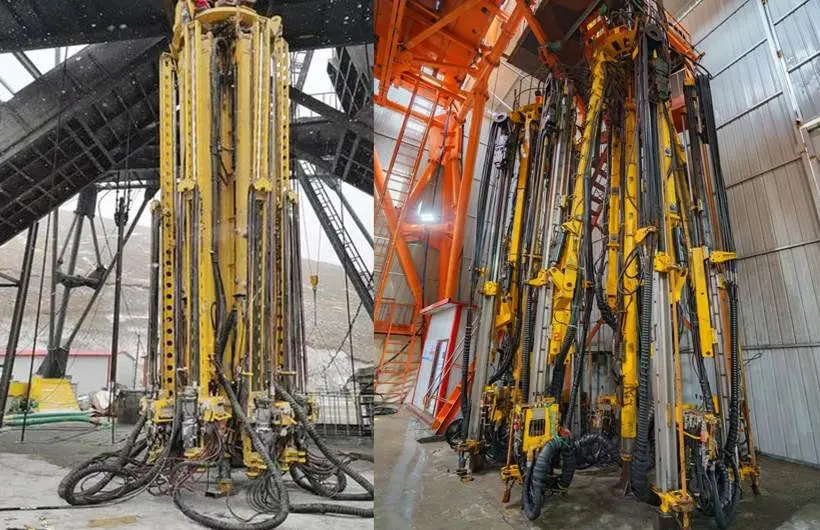

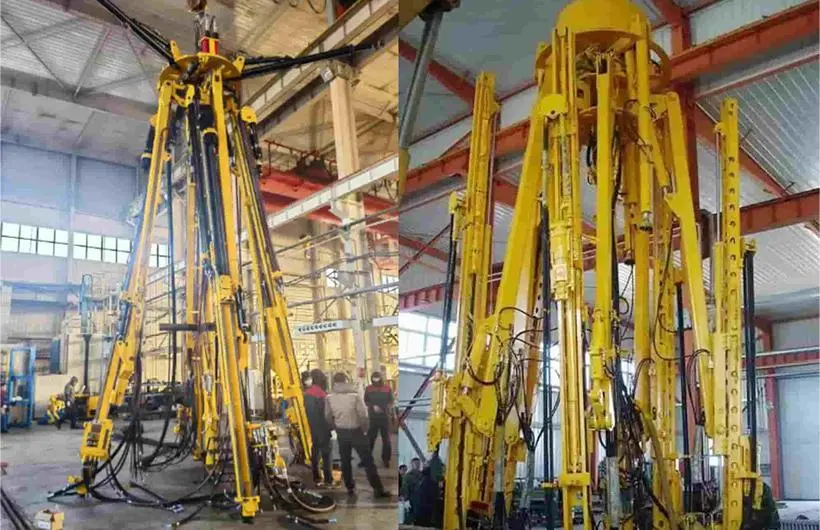

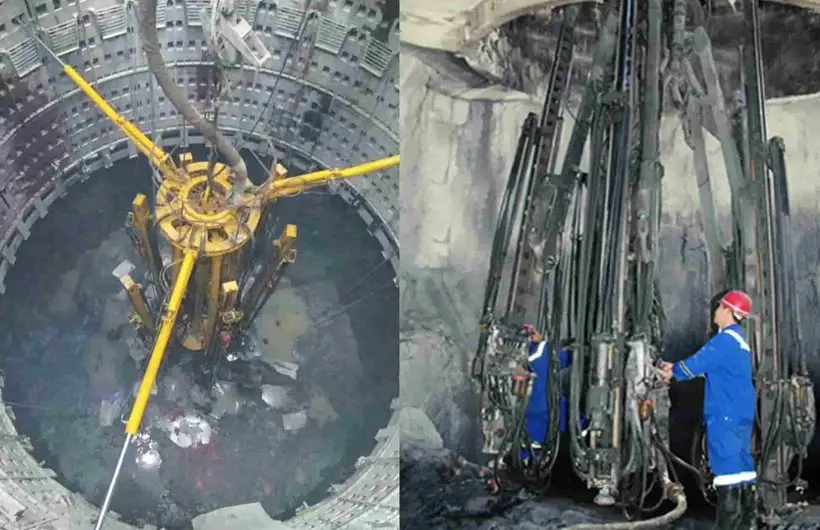

This vertical shaft drill series is custom-developed for drilling in shaft sinking construction. It suits various vertical shaft projects and performs exceptionally well in large-diameter shafts with fluctuating rock hardness, delivering high construction efficiency and stable operation.
It supports a wide shaft diameter range with flexible operation and precise positioning. Driven by compressed air and hydraulic transmission, the rig realizes full mechanical movement. Equipped with a pneumatic rock drill, long feed stroke and parallel moving mechanism, it greatly improves blasthole drilling accuracy and efficiency, cuts auxiliary time substantially, and raises overall work efficiency by 30%.
Structure Features & Working Principle:
Power System: Pneumatic motor drives the hydraulic pump, combined multi-way valves to centrally control the cylinders, enabling automated positioning and fixing.
Positioning Design: Key cylinders fitted hydraulic locks. Featuring high-rigidity boom and parallel movement mechanism, it delivers higher drilling accuracy and efficiency.
Feed Mechanism: An adjustable feed force is achieved via cylinder-steel rope structure, adapting different rock layers stable rod extraction and strong power.
Pneumatic-Hydraulic Full Mechanization: Powered compressed air adopting hydraulic transmission technology, it achieves full mechanization drillrig positioning, fixing, feeding, ensuring flexible and precise operation.
High-Efficiency & High-Precision Drilling: Equipped long feed stroke design and parallel movement mechanism, paired pneumatic rock drill, it effectively improves blast hole accuracy efficiency, reduces auxiliary time, boosts work efficiency by 30%.
Adaptive Feed Force Adjustment: The cylinder-steel rope feed structure allows flexible adjustment feed force to adapt to different rock layers, ensuring stable rod extraction and strong power.
Reliable Structure & Easy Maintenance: Key components use hydraulic locks high-rigidity boom designs improve positioning accuracy applicability. Simplified pneumatic motors reduce operating noise, standardized parts easy maintain and replace.
Wide Applicable Shaft Diameter Range: The equipment offers broad adaptability various shaft diameters, meeting diverse vertical shaft construction requirements.
| FJD Series Vertical Shaft Drilling Rig Basic Technical Parameters Table | ||||||||||
| Model | Applicable wellbore diameter | Collapsed dimension |
Number of booms | Support range |
Swing arm angle |
Swing mode |
Drilling range | Rock drill | Power type |
Oil pump power |
| ( m ) | ( m ) | Air Motor-Driven Oil Pump | （KW） | |||||||
| FJD6.7 | 6-8 | Φ1.9×7.2 | 6 |
Produced as per agreement |
120 | Hydraulic Cylinder | Φ 1 .65-8.2 | 6/YGZ70 | 5 .8 | |
| FJD6.9 | 8-9 | Φ1.9×8 | 6 | 120 | Φ 1 .65-9.5 | 6/YGZ70 | 5 .8 | |||
| FJD6.10 | 8-10 | Φ1.9×8 | 6 | 120 | Φ 1 .65-10.5 | 6/YGZ70 | 5 .8 | |||
| FJD6.11 | 9-11 | Φ1.9×8 | 6 | 120 | Φ 1 .7-11 .5 | 6/YGZ70 | 5 .8 | |||
| FJD8.12 | 10-12 | Φ2.25×8.1 | 8 | 96 | Φ 1 .7-11 .5 Φ 1 .7-13 .5 |
8/YGZ70 | 5 .8 | |||
| FJD Series Vertical Shaft Drilling Rig Basic Technical Parameters Table | ||||||||||
| Working pressure | Advance itinerary | Working pressure |
Air consumption | Drill rod length | Drill bit diameter |
Gross weight |
Working water pressure |
Tapered tail specifications |
Total inlet pipe inner diameter |
Main water inlet pipe inner diameter |
| （Mpa） | ( m ) | （Mpa） | m³/min | ( m ) | （mm） | （Kg） | （Mpa） | （mm） | Φ102 | Φ32 |
| 10-14 | 4 .3 | 0.5-0.7 | 68 | 4 .7 | Φ38-55 | 7800 | 0.3-0.5 | Hollow Hex 25×159 |
||
| 12-14 | 5 .3 | 0.5-0.7 | 68 | 5 .7 | Φ38-55 | 8200 | 0.3-0.5 | |||
| 12-14 | 5 .3 | 0.5-0.7 | 68 | 5 .7 | Φ38-55 | 8700 | 0.3-0.5 | |||
| 12-14 | 5 .3 | 0.5-0.7 | 68 | 5 .7 | Φ38-55 | 9000 | 0.3-0.5 | |||
| 12-14 | 5 .3 | 0.5-0.7 | 100 | 5 .7 | Φ38-55 | 12000 | 0.3-0.5 | |||
