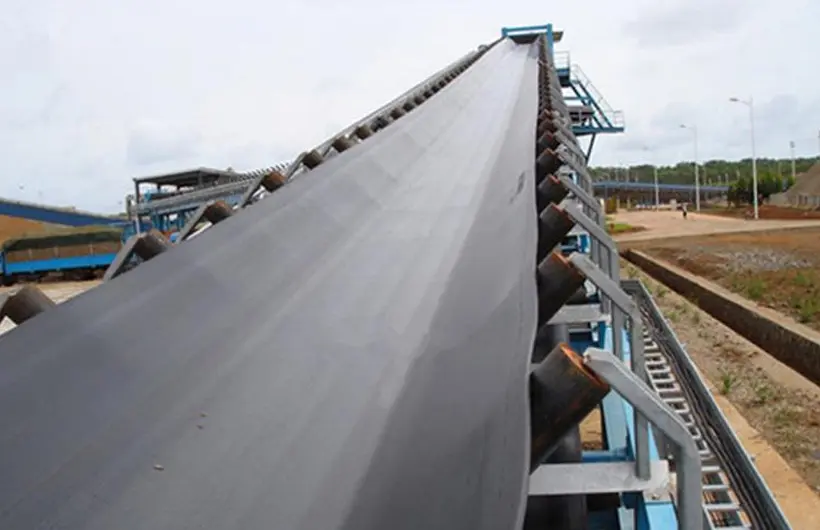

DTC deep-trough steep-angle belt conveyor . It delivers coal, ore, grain other bulk materials via custom inclined continuous operation.
Eliminates ordinary steep-slope conveyor material spillage and slippage. Realizes stable high-efficiency conveying at 20°–30°. Special configurations enable larger angle operation.

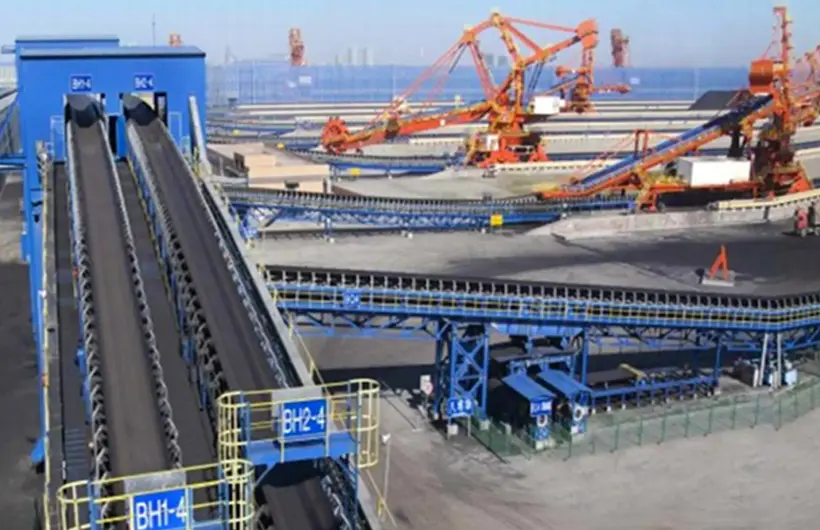

Applicable to underground coal mines, open-pit mines, ports, coal preparation plants and industrial sites.
Structure Features & Working Principle:
Deep-Trough Anti-Spill Structure: Core fitted over 50° deep-trough idlers. Optimized compact idler layout forms stable U-shaped material cross section, boosts conveying capacity greatly. High-strength side guards and adjustable baffles optional for multi-stage physical protection, prevents material spillage and backflow in uphill operation.
Reinforced Key Components: Reinforced structure and dynamic sealing fitted for steep-angle complex stress. Drive head, tail bend pulley and take-up system fully strengthened. Custom housings and heavy-duty bearing seats enhance overall rigidity and impact resistance. Ensure stable long-term operation in harsh working conditions.
Smooth Soft Start: Standard fitted with advanced soft start devices including VFD, CST controlled drive. Enables belt smooth shock-free start and stop from zero to rated speed. Reduces drive system transient stress effectively. Prolongs overall equipment service life.
Safety Braking (Optional): Integrated soft start and hydraulic disc brake control system optional for precise steep-angle shutdown. Delivers seamless accurate start, speed regulation and braking. Eliminates reverse rotation and belt slippage risks during shutdown.
Secures dual safety protection for equipment operation.
Excellent Incline Adaptability: Reliable conveying up 25° standard smooth belts; up to 28°-39° chevron/diamond patterned belts special covers. Eliminates transfer points, shortens conveying lines, optimizes layout, and reduces total project investment.
High Conveying Reliability: Deep-trough containment + modular baffles prevent spillage, ideal free-flowing bulk materials. Ensures continuous production, reduces material loss, cleanup costs, unplanned downtime, improving site safety and cleanliness.
Significant Maintenance Economy: Core components (pulleys, idlers, drive units) are highly interchangeable with standard DTC series conveyors.
| DTC Belt Conveyor Technical Parameters | ||||||||
| Model | Transport capacity（t/h） | bandwidth（mm） | Belt speed（m/s） | Conveying length（m） | Motor power（KW） | Drum diameter（φmm） | Roller diameter（φmm） | inclination（°） |
| DTC80/30/2×90S | 300 | 800 | 2 | 400 | 2×90 | 1000 | 89 | 20 |
| DTC80/30/2×132S | 300 | 800 | 2 | 400 | 2×132 | 1000 | 89 | 0~22 |
| DTC80/40×132S | 400 | 800 | 2 | 200 | 132 | 1000 | 89 | 20 |
| DTC80/40/2×160S | 400 | 800 | 2 | 600 | 2×160 | 1000 | 89 | 0~22 |
| DTC80/40/2×200S | 400 | 800 | 2.5 | 800 | 2×200 | 1250 | 108 | 16~25 |
| DTC100/50/2×250S | 500 | 1000 | 2 | 600 | 2×250 | 1000 | 108 | 20~22 |
| DTC100/50/2×280S | 500 | 1000 | 2.5 | 500 | 2×280 | 1250 | 108 | 26 |
| DTC100/63/2×315S | 630 | 1000 | 2.5 | 500 | 2×315 | 1250 | 108 | 26 |
| DTC120/80/2×315S | 800 | 1200 | 2.5 | 500 | 2×315 | 1400 | 133 | 22~26 |
| DTC120/70/2×450S | 700 | 1200 | 2.5 | 500 | 2×450 | 1400 | 133 | 22~26 |
| DTC120/100/3×400 | 1000 | 1200 | 3.15 | 600 | 2×400 | 1250 | 133 | 20~26 |
| DTC120/100/2×630S | 1000 | 1200 | 3.15 | 600 | 2×630 | 1250 | 133 | 20~26 |
