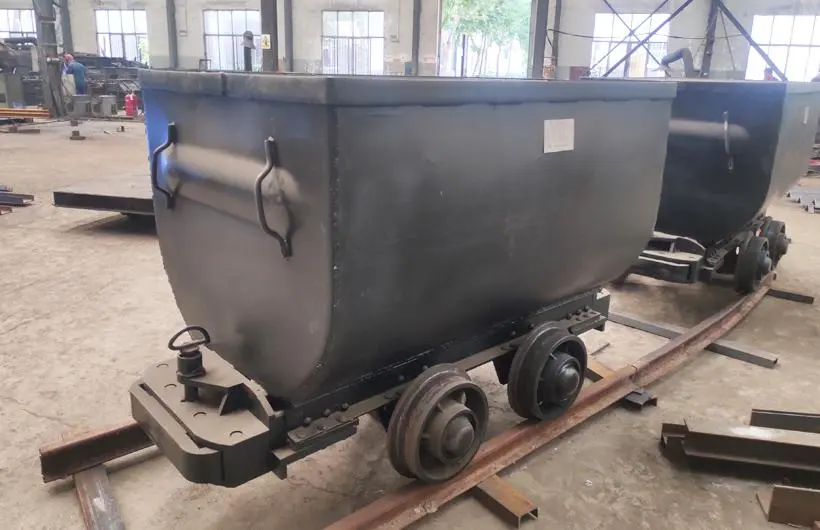

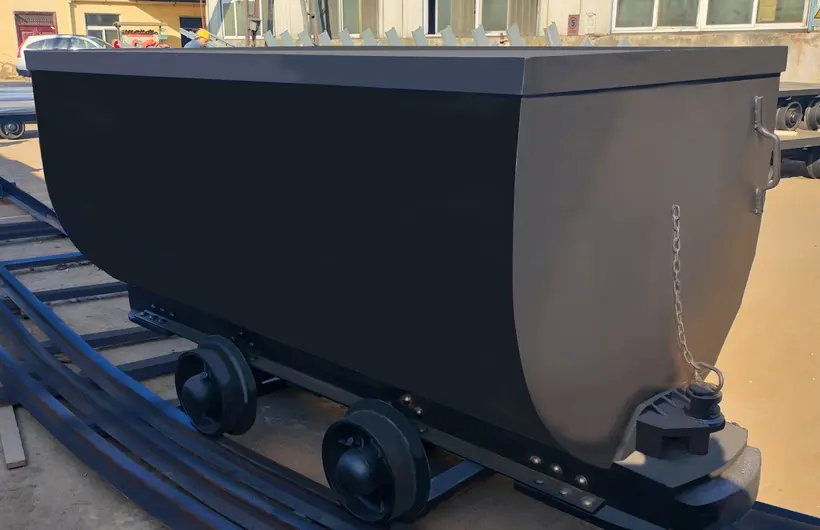

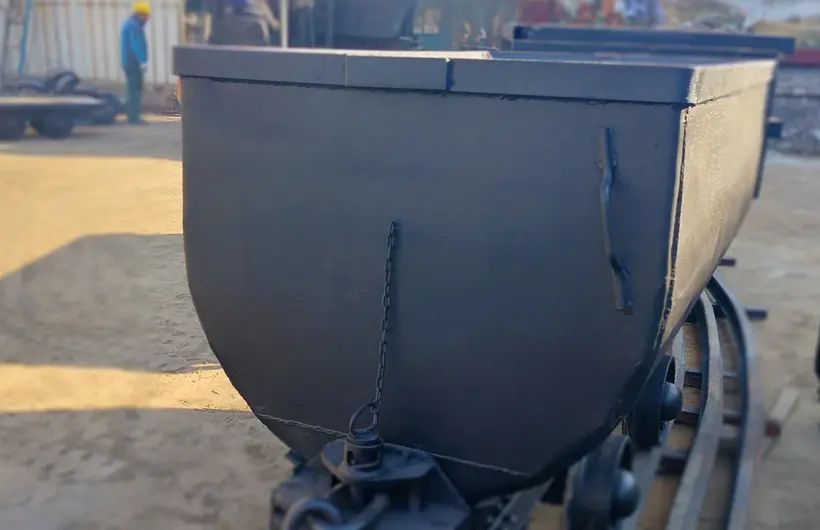

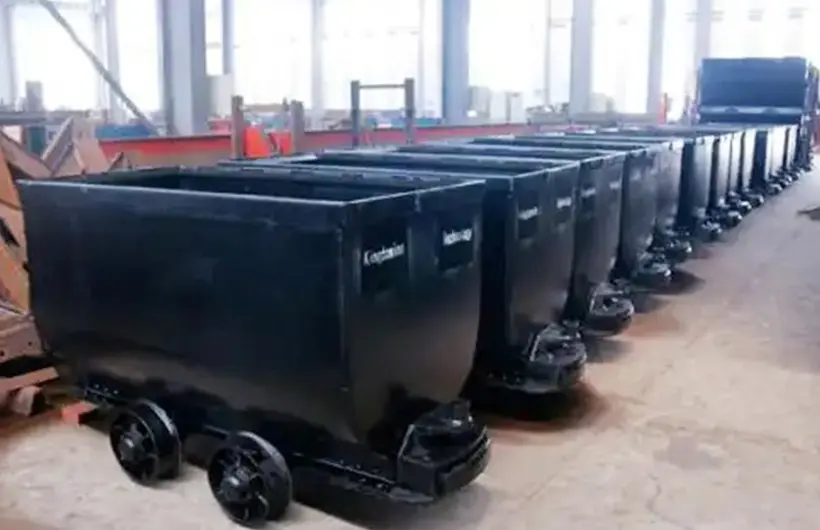

Fixed mine car Simple structure, rugged durable, low resistance coefficient, large load capacity, easy maintenance.Unloading: use tippler to flip entire car body.
Widely used: coal mining, non-metallic mineral development, bulk material transport in construction, gangue large-scale transport, metal/non-metal ore/waste transfer.
Tunnel projects: railway/highway/water tunnel construction, muck removal, lining material supply.
Civil works: concrete aggregate for bridges/railways.
Port yards: bulk cargo loading/unloading, yard circulation.
Structural Features & Working Principle:
Integral box structure: High-strength steel plate welding. Strong box seal. Prevent material spillage. Adapt complex coal mine underground conditions.
Reinforced chassis: Channel steel + heavy rail welded chassis. Mine car-specific wheel sets. Buffer coupling devices. Ensure stable reliable operation.
Modular design: Standardized key parts. Quick disassembly/replacement. Easy maintenance. Reduce downtime.
Impact-resistant design: Thickened steel plates + stiffeners at key stress points. Stress-relieved structure. High deformation resistance.
Universal interface: Standard traction chain rings + pin coupling system. Flexible train formation. Compatible with common traction equipment.
Working principle:

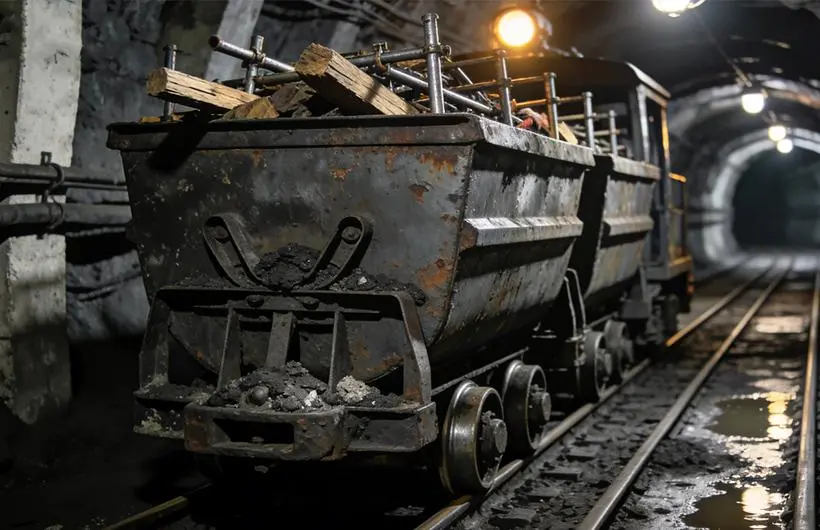

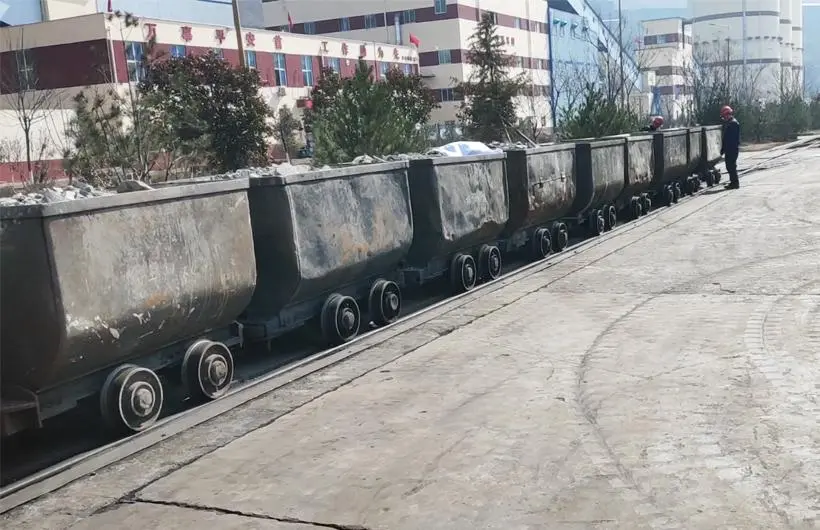

Fixed box mine cars form trains via traction equipment. Load material at loading point. Hauled to discharge point by locomotive/winch. Discharge: Train/single car enters tippler station. Tippler rotates car body (160°-180°). Material slides down box slope under gravity. Tippler resets to horizontal. Car returns to loading point for cycle. No manual unloading. High mechanization. Suitable for continuous, large-scale bulk material transport systems.
| Solid mine car Technical Parameters | ||||||||||||
| Parameter Model |
Volume(m³） | Loading capacity（T) | Maximum load capacity | gaugeG(mm） | Dimensions(mm） | WheelbaseC | Wheel diameterD | Traction high H | Traction（kn） | Deadweight（kg） | ||
| L | B | H | ||||||||||
| MGC1.1-6 | 1.1 | 1 | 1.8 | 600 | 2000 | 880 | 1150 | 550 | 300 | 320 | 60 | ≤610 |
| MGC1.7-6 | 1.7 | 1.5 | 2.7 | 600 | 2400 | 1050 | 1200 | 750 | 300 | 320 | 60 | ≤720 |
| MGC1.7-9 | 1.7 | 1.5 | 2.7 | 900 | 2100 | 1150 | 1300 | 600 | 350 | 320 | 60 | ≤970 |
| MGC3.3-9 | 3.3 | 3 | 5.3 | 900 | 3450 | 1320 | 1300 | 1100 | 350 | 320 | 60 | ≤132 |
