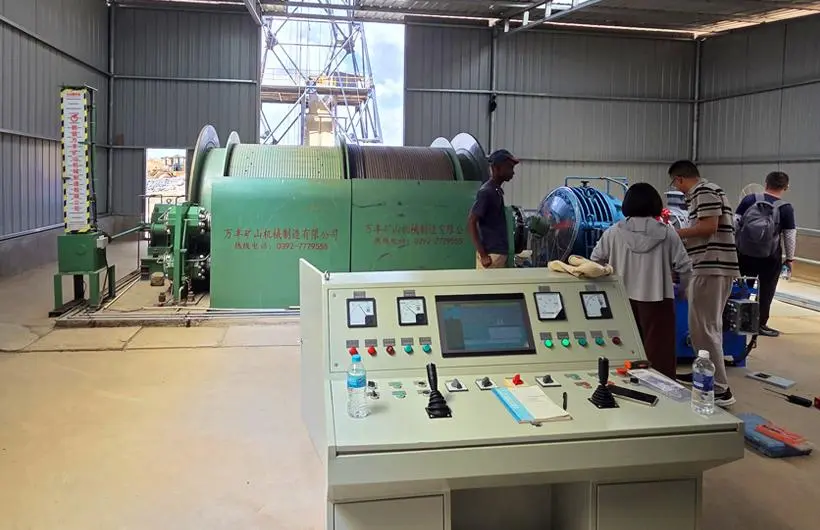

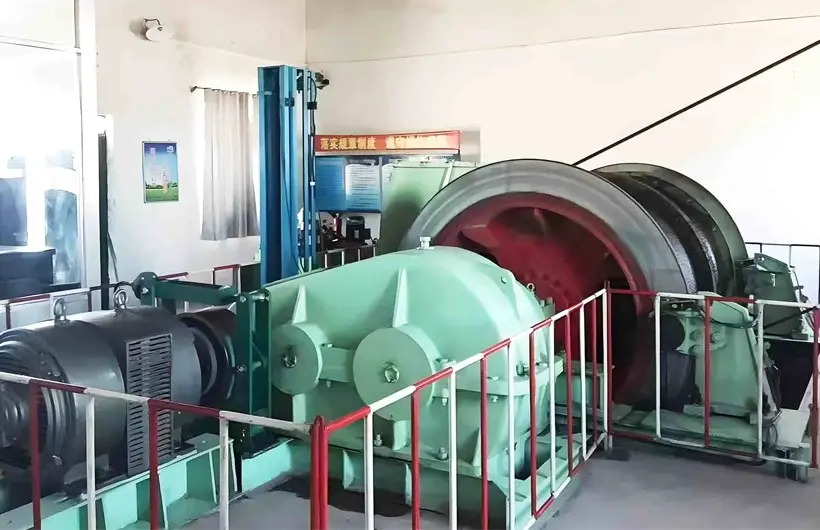

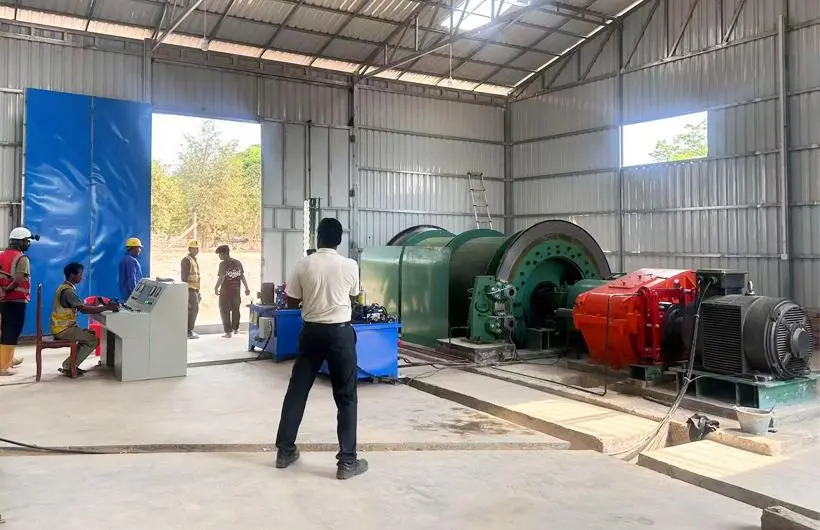

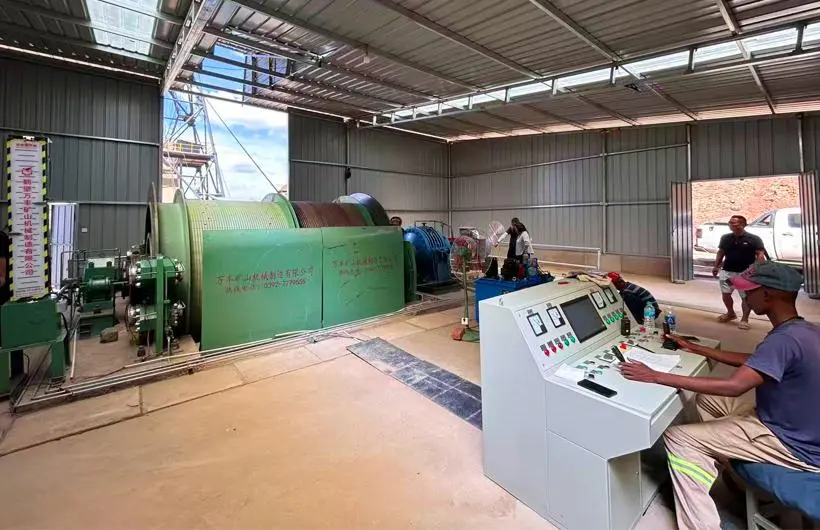

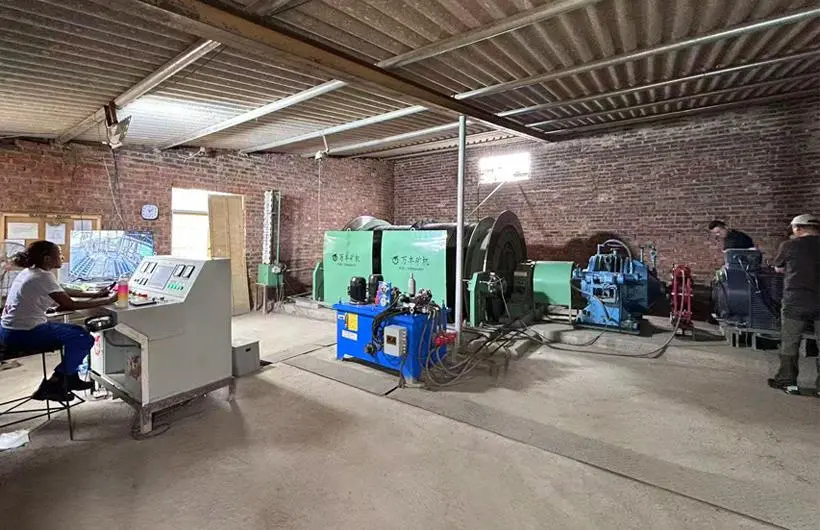

| JTP(B)、2JTP(B) Technical Specifications Table for Type Mining Hoisting Winch | ||||||||||||||
| Product model | Drum | Max static tension |
Max. Tension Difference |
Hoisting Height Travel Length | wire rope | Motor Speed ≥ |
Overall dimension | equipment weight |
||||||
| number | Dia | Width | Center Distance (Double Drums) |
Single layer | Double layer |
Triple layer | Dia | Max boost speed |
||||||
| unit | mm | KN | m | mm | m/s | r/min | m | kg | ||||||
| JTP-1.0*0.8P | 1 | 1000 | 800 | / | 20 | / | 135 | 275 | 418 | 16 | 1.6 | ≤1000 | 4.1X4.0X1.6 | 6200 |
| JTP-1.0*1.0P | 1000 | 169 | 345 | 524 | 4.3X4.0X1.6 | 6300 | ||||||||
| JTP-1.2*1.0P | 1 | 1200 | 1000 | 30 | / | 165 | 337 | 512 | 20 | 2.6 | 5.0x5.0x2.2 | 8500 | ||
| JTP-1.2*1.2P | 1200 | 199 | 405 | 615 | 5.2x5.0x2.2 | 8700 | ||||||||
| JTP-1.6*1.2P | 1 | 1600 | 1200 | 45 | / | 216 | 441 | 670 | 24.5 | 4.1 | 6.4x5.4x2.2 | 13200 | ||
| JTP-1.6*1.5P | 1500 | 271 | 552 | 838 | 6.7x5.4x2.2 | 14000 | ||||||||
| 2JTP-1.2*0.8P | 2 | 1200 | 800 | 890 | 30 | 20 | 131 | 268 | 408 | 20 | 2.6 | 6.2x5.0x2.2 | 10500 | |
| 2JTP-1.2*1.0P | 1000 | 1090 | 165 | 337 | 512 | 6.6x5.0x2.2 | 11000 | |||||||
| 2JTP-1.6*0.9P | 2 | 1600 | 900 | 990 | 45 | 30 | 160 | 328 | 500 | 24.5 | 4.1 | 7.2x5.4x2.2 | 14500 | |
| 2JTP-1.6*1.2P | 1200 | 1290 | 216 | 441 | 670 | 7.8x5.4x2.2 | 15200 | |||||||
| Note 1: Max lifting speed is estimated value based on nominal drum diameter and single-layer winding Note 2: JTPB is explosion-proof mine winder. Mechanical parameters are identical to JTP series, only motor, electric control and hydraulic station differ |
||||||||||||||
