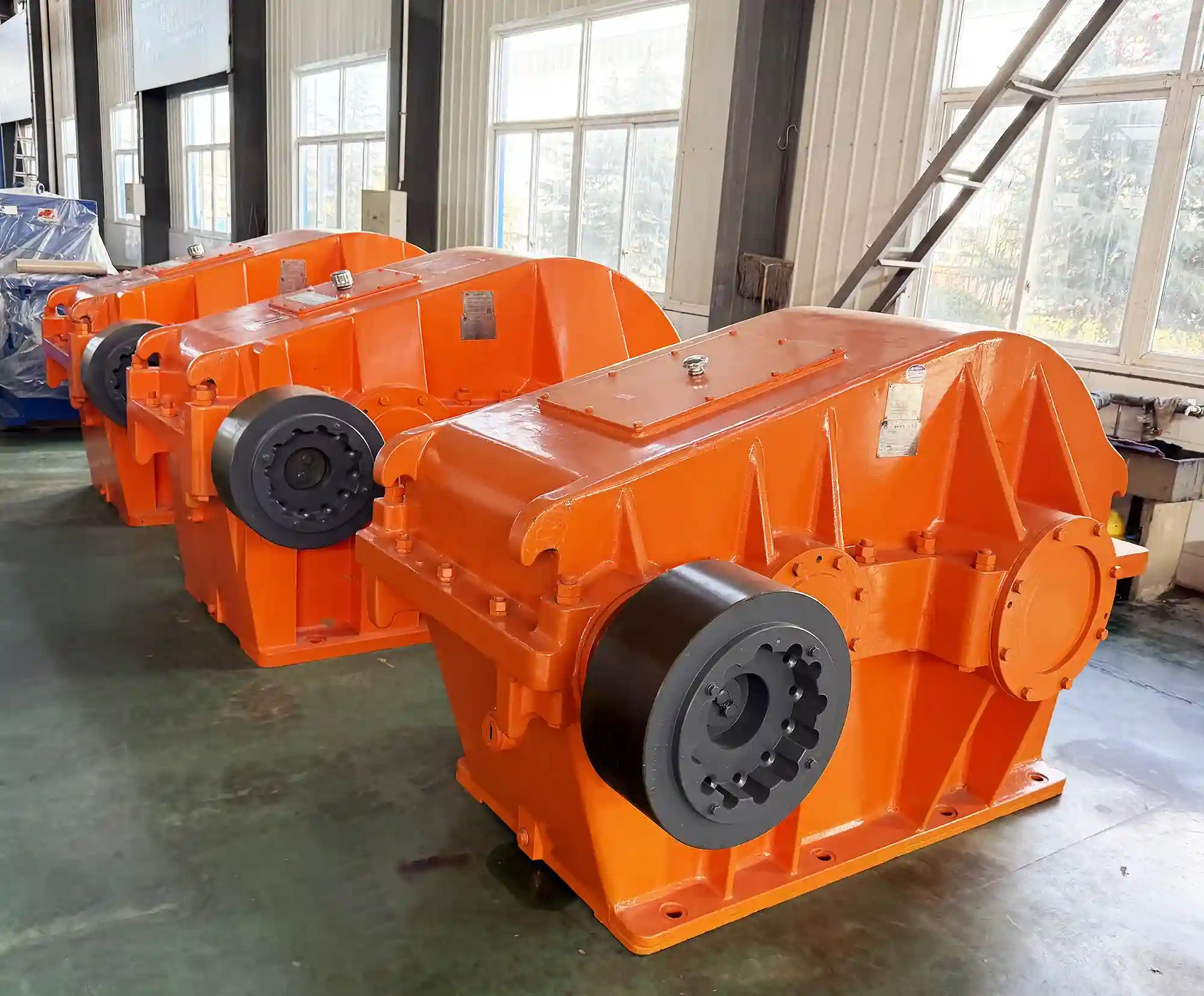

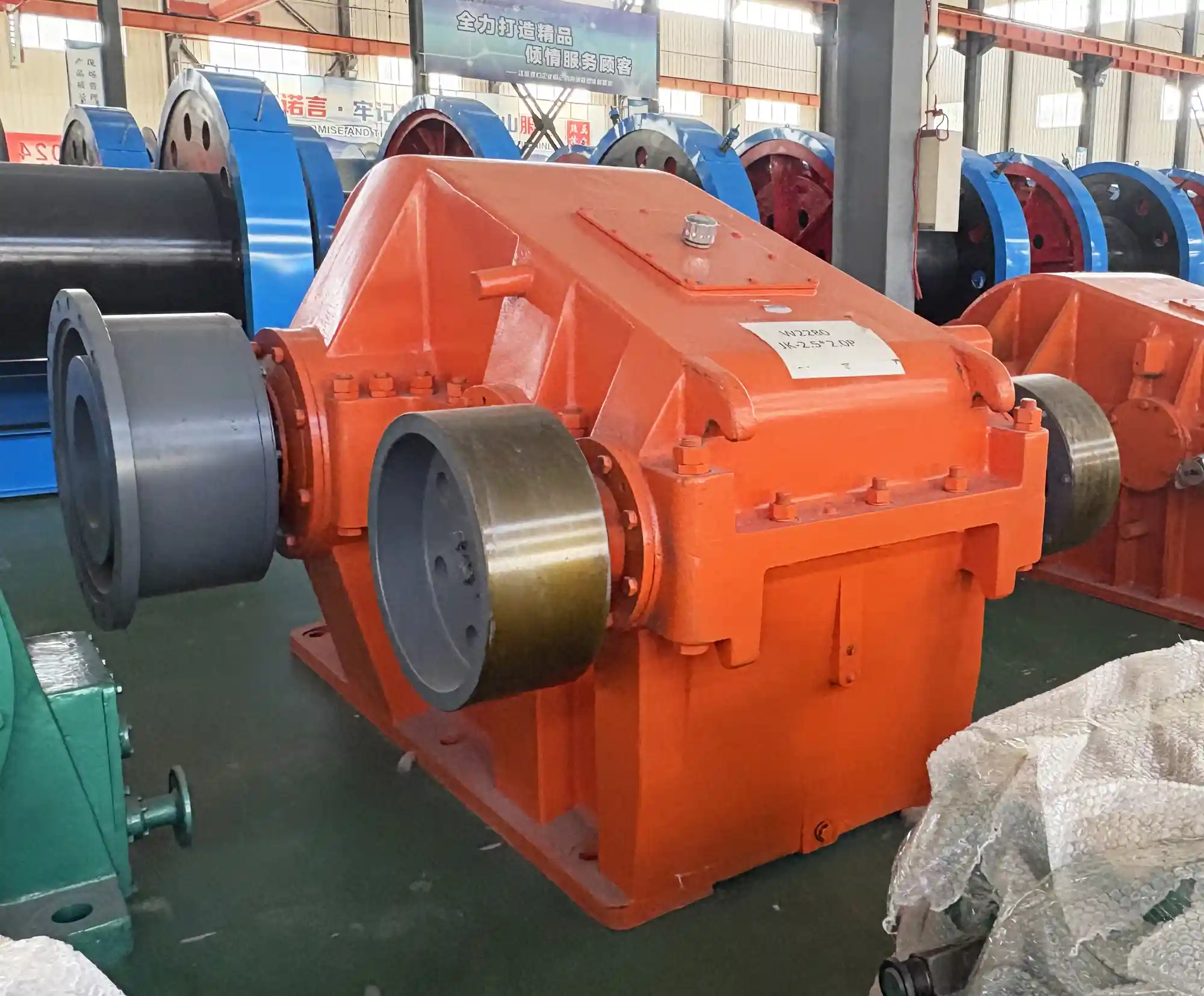

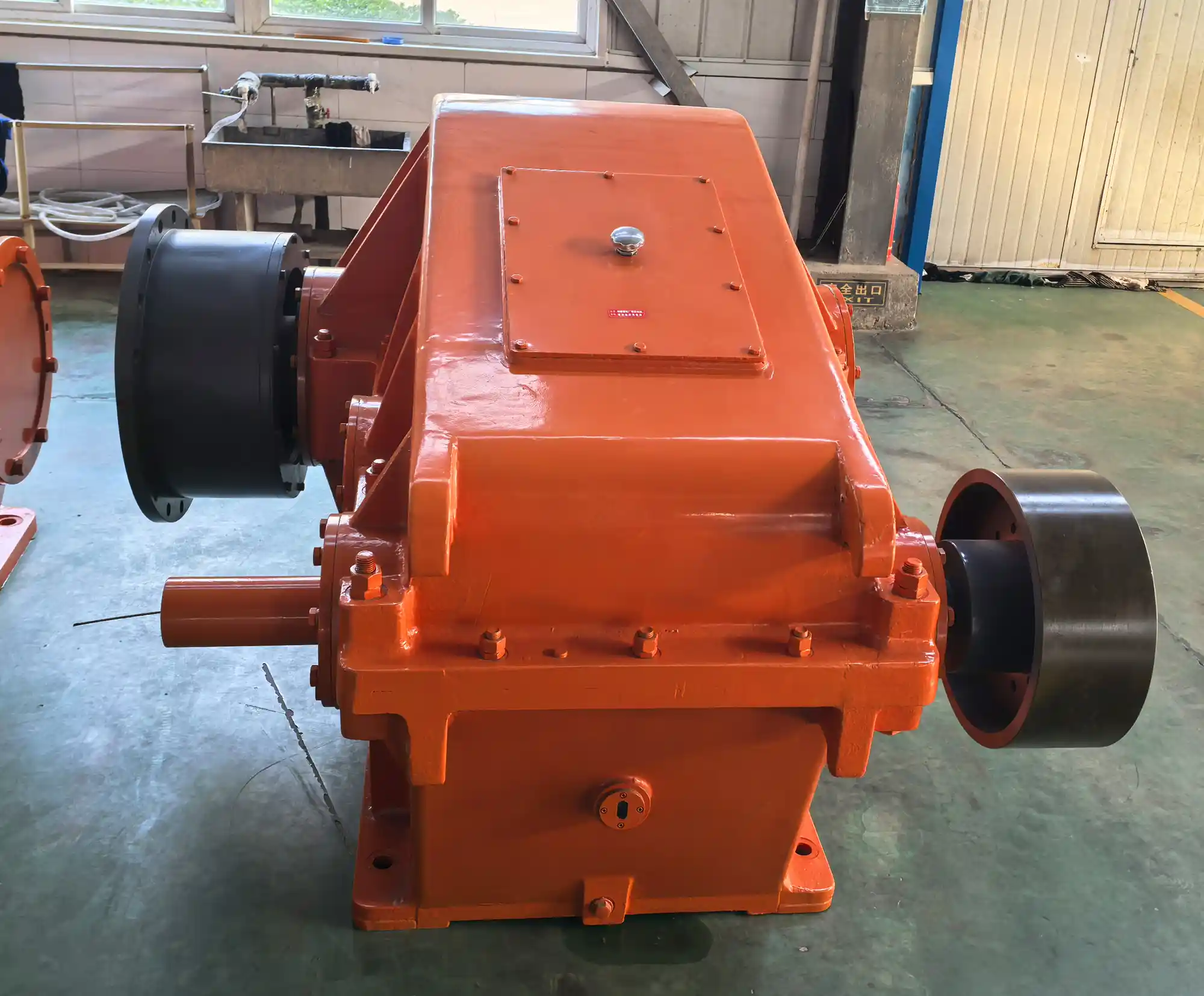

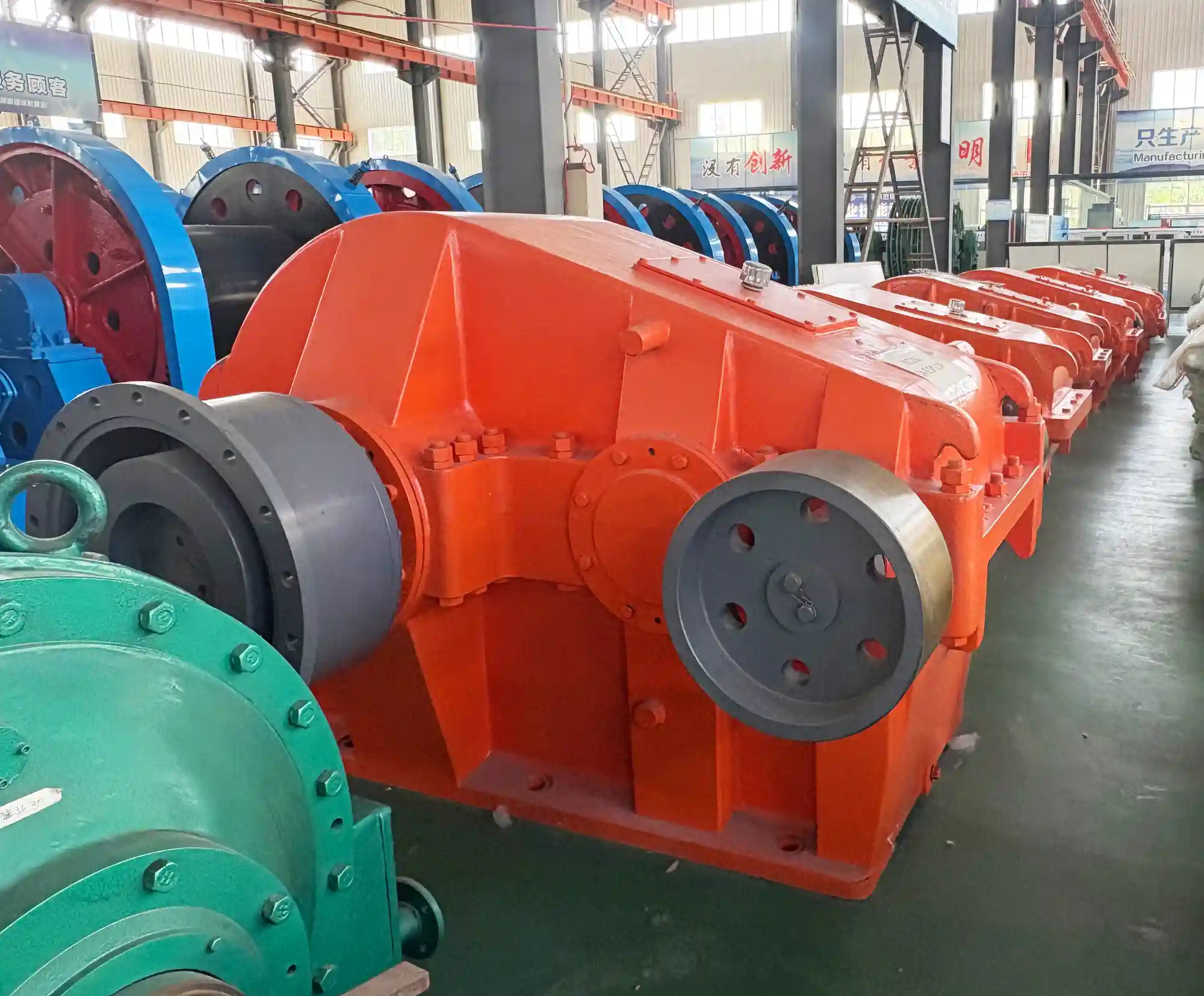

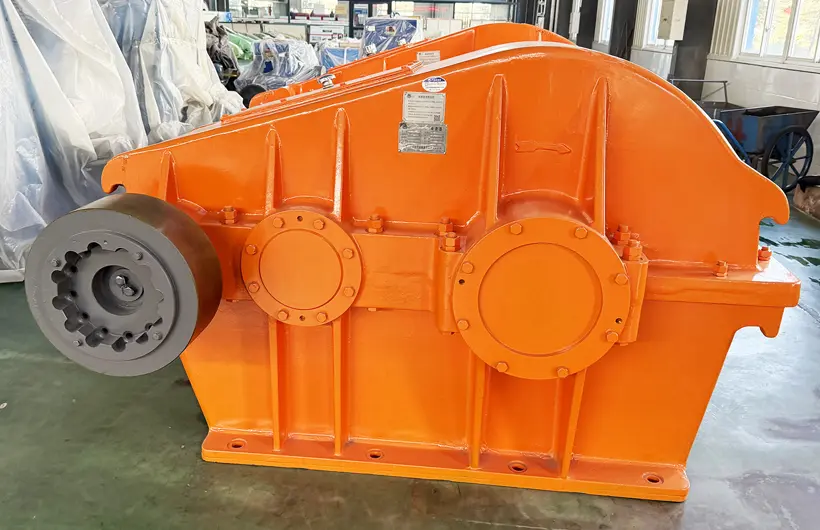

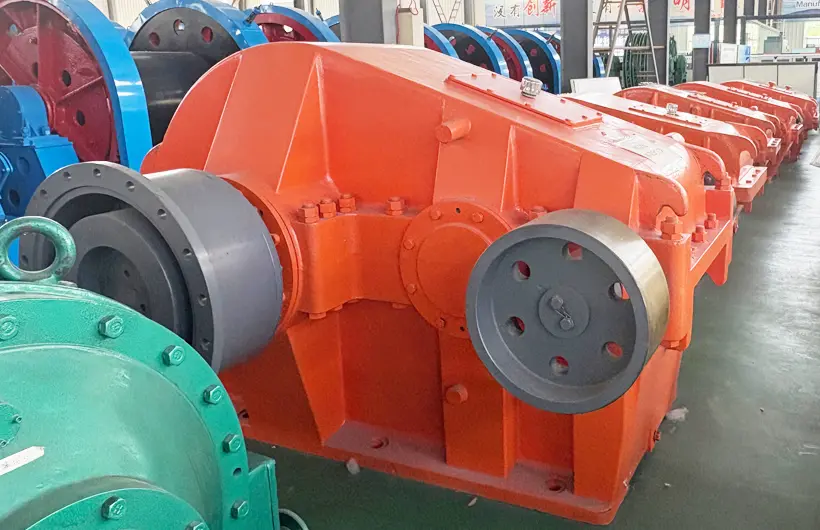

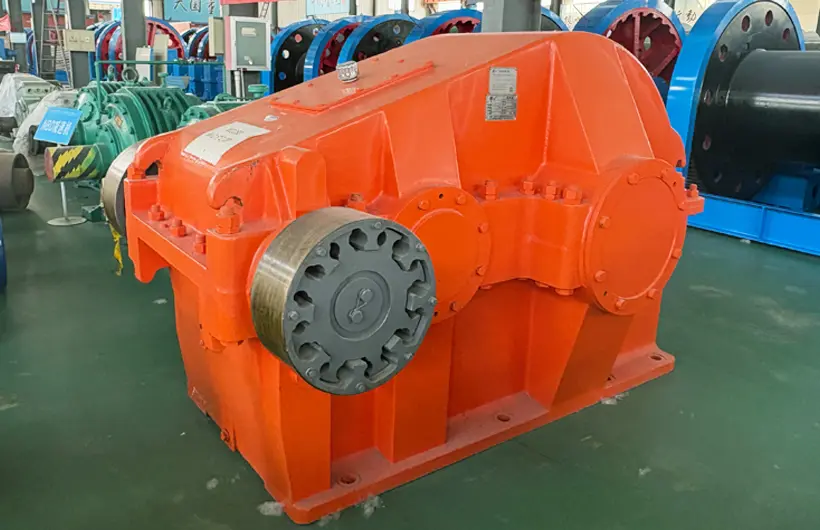

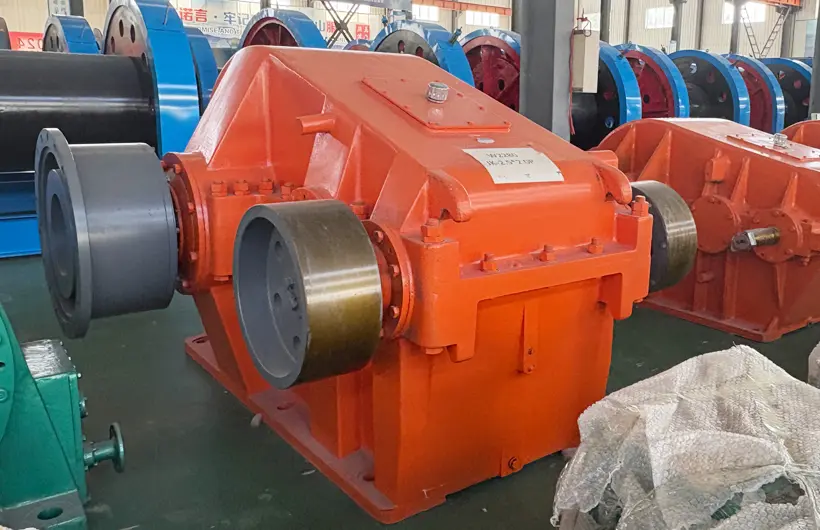

Cylindrical Gear Reducer

Parallel shaft reducer gears adopt high-strength low-carbon alloy steel. Carburized quenched to hardness HRC 58-62. All gears precision ground for high accuracy fine contact performance. Hardened gear drive delivers high load capacity long service life high efficiency. Suitable medium-to-high load industrial applications.

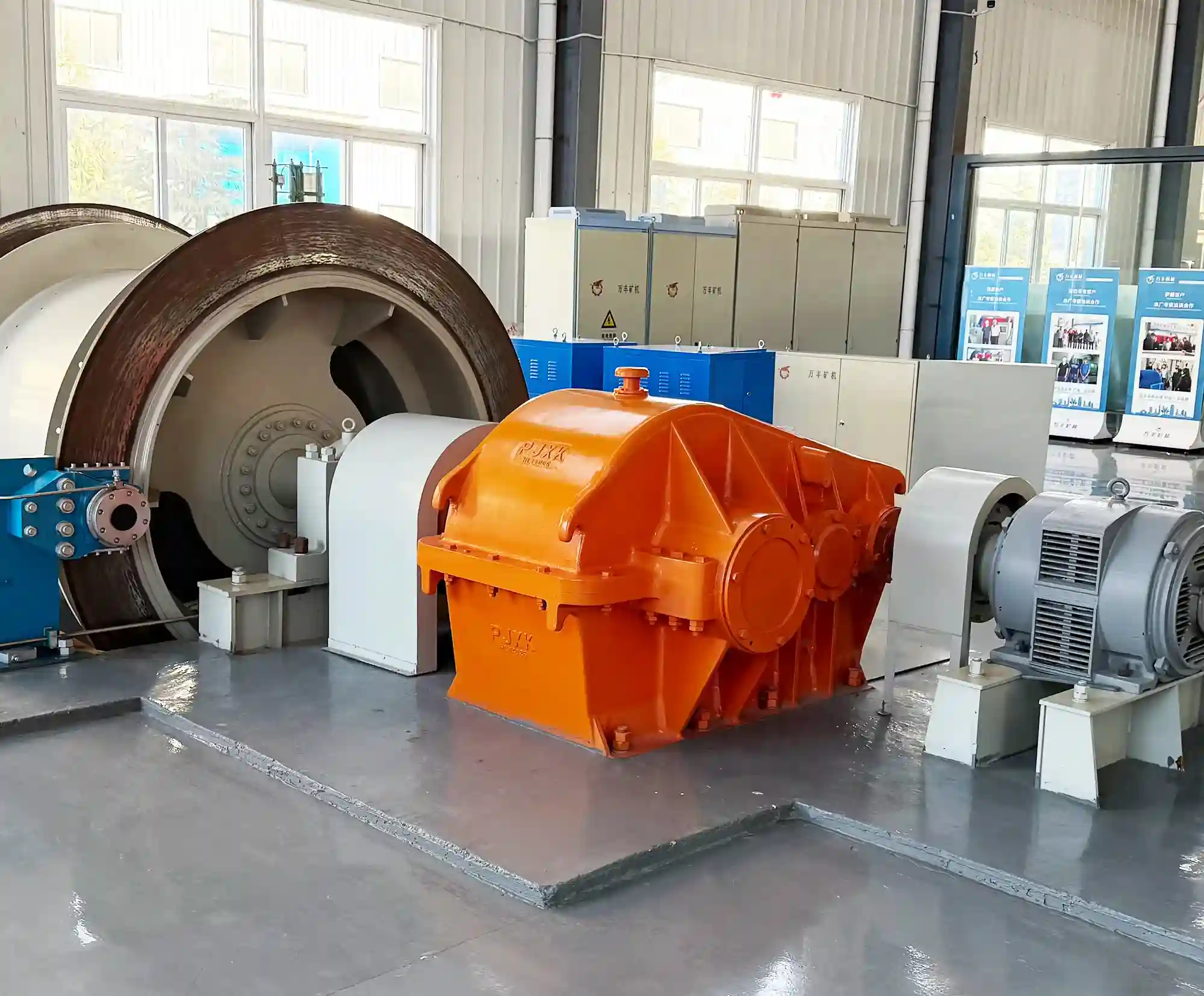

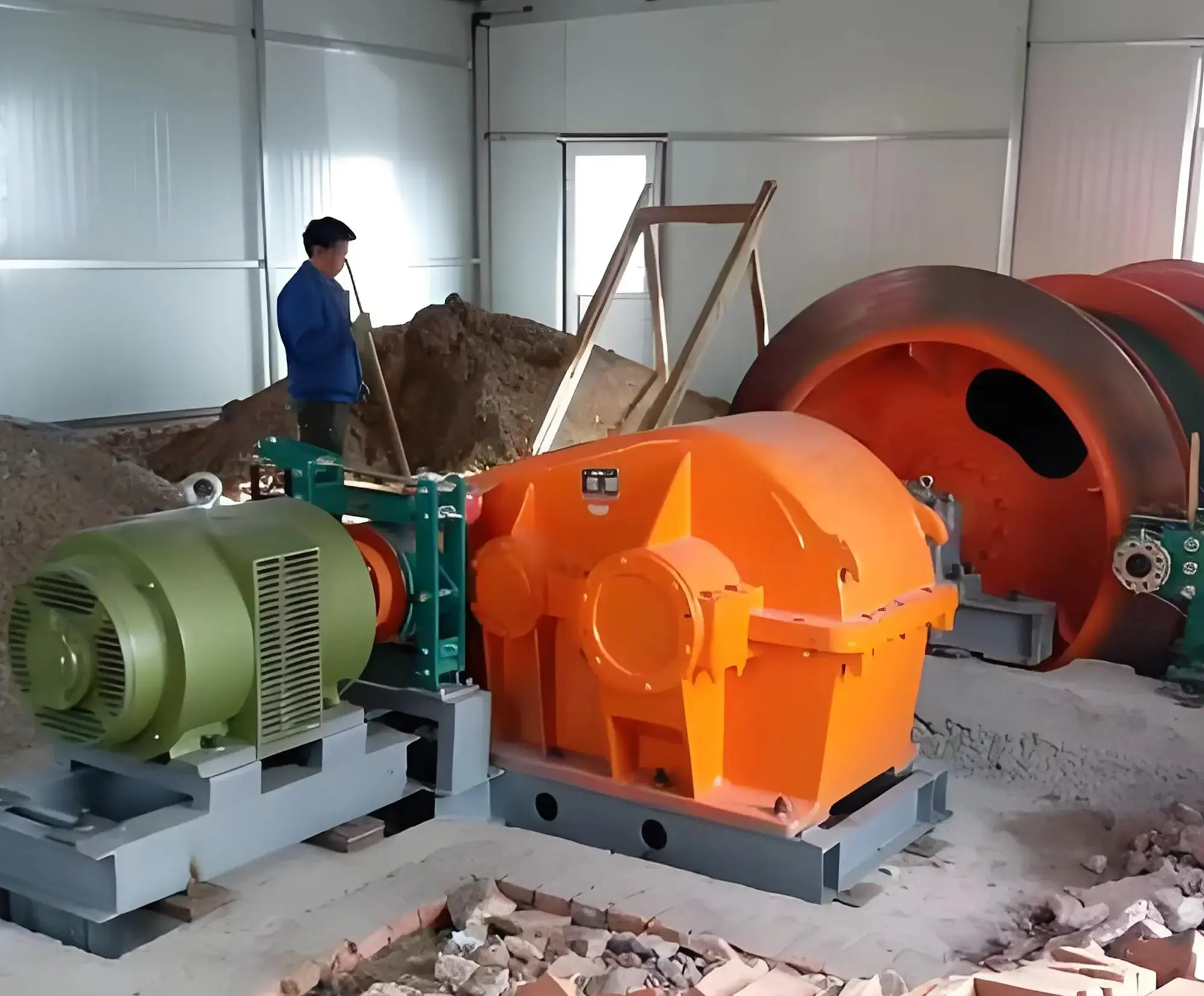

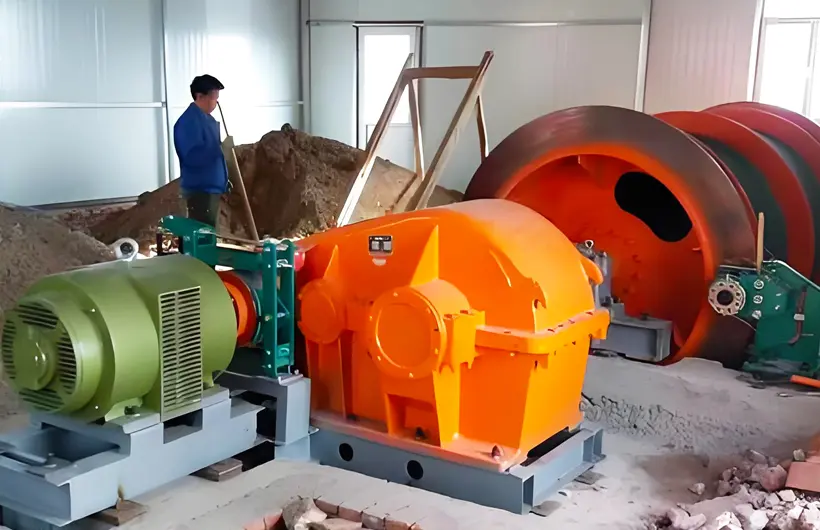

JC series mining hoist reducer serves core transmission component coal mines metal mines mine hoisting systems. Manufactured per strict mining equipment safety standards. Possesses National Mining Product Safety Mark certification. Offers stable reliable durable power transmission solution various hoisting winches. Guarantees safe efficient personnel equipment material hoisting operations vertical inclined shafts.

Send Message

FacebookTwitterLinkedInPinterestShare

Structure Features & Working Principle:
Double-row gear drive: Some JC series hoist-specific models double-arc cylindrical gears. More teeth engage simultaneously. High contact strength. Large load capacity. Disperses impact loads effectively hoist start stop.
Heavy-duty hardened gears: Made of high-strength low-carbon alloy steel. Carburized, quenched, ground. Surface hardness up to HRC 54-62. High wear resistance. Core remains tough for strong impact resistance.
Rigid housing & reliable sealing: Robust cast iron/welded housing withstands heavy loads vibration. Precision sealing prevents dust/moisture ingress. Ensures long-term gear/bearing operation in harsh conditions.
Specialized connection interfaces: Input/output shafts match mining hoist motor standards drum connections. Enables secure direct coupling motors hoist drums.

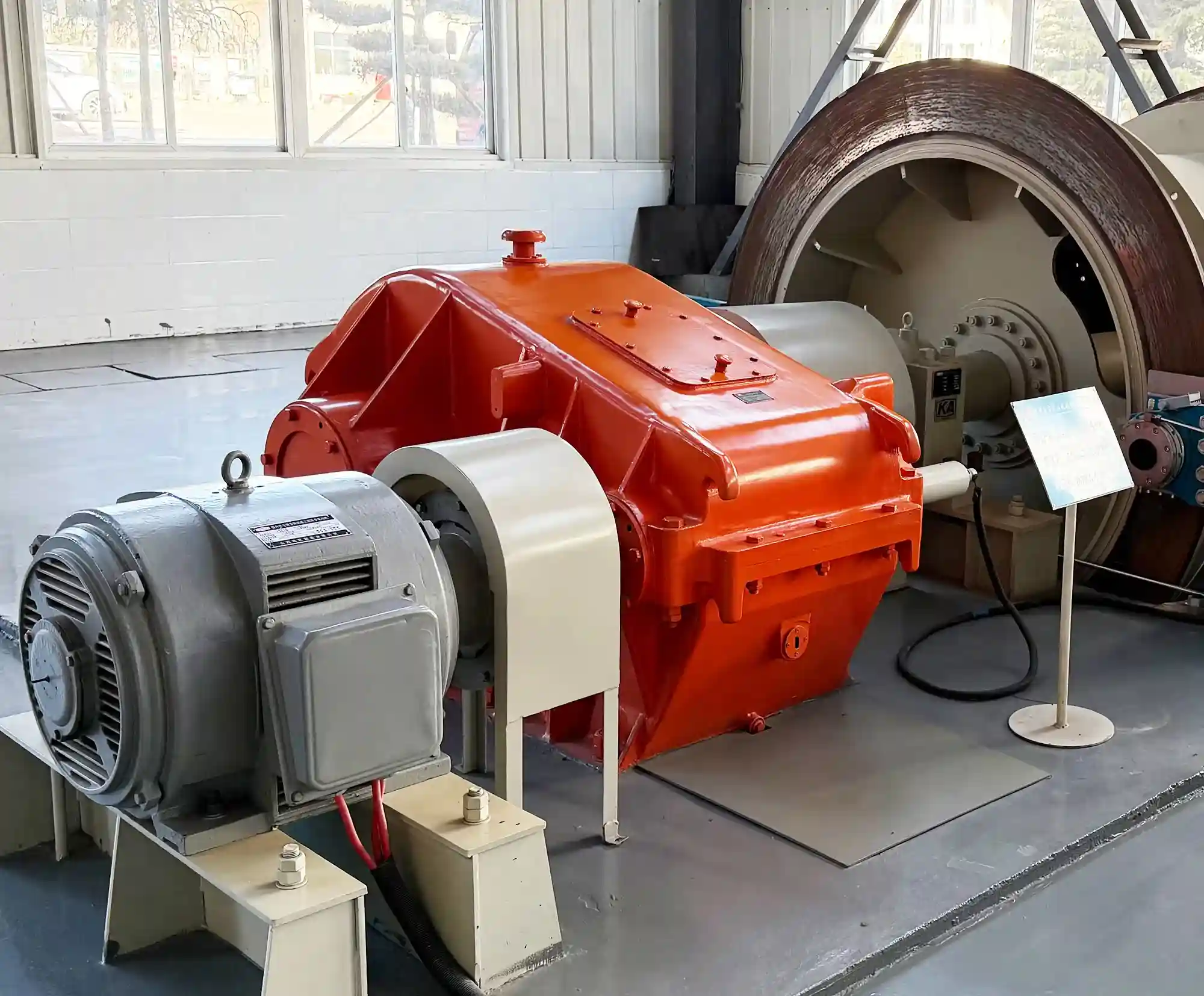

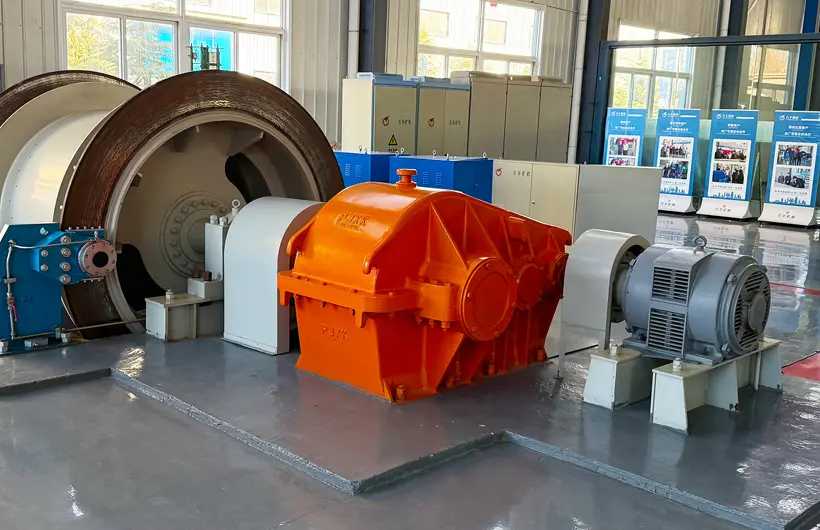

Power Input: High-speed, low-torque power from the hoist main motor is transferred to the reducer input shaft via a coupling.
Speed Reduction & Torque Increase: Power transfers via two extra precision gear stages: input pinion → intermediate gear → intermediate pinion → output gear. Speed drops sharply each stage, torque rises proportionally.
Power Output: Low-speed, high-torque power drives the hoist drum to wind or release the steel rope, achieving smooth load lifting/lowering.
Operation: Double-arc hardened ground gears ensure smooth transmission, low vibration, low noise, reducing mechanical shock and wear during mining hoisting.
