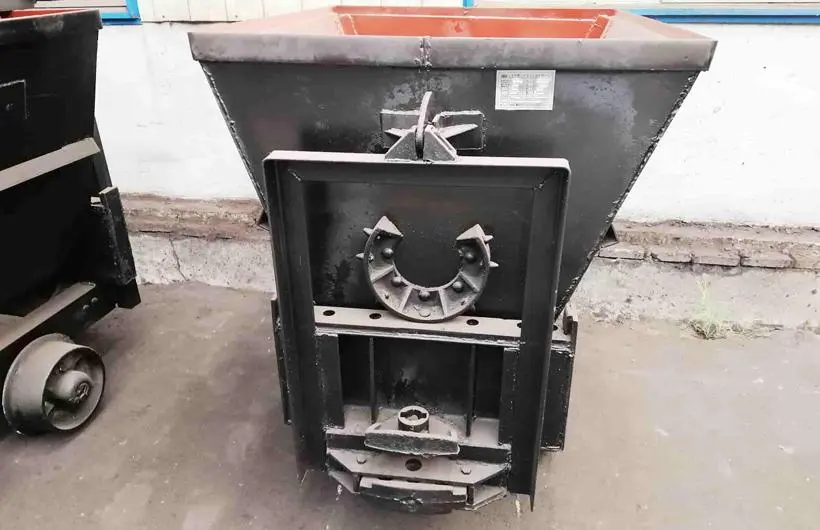

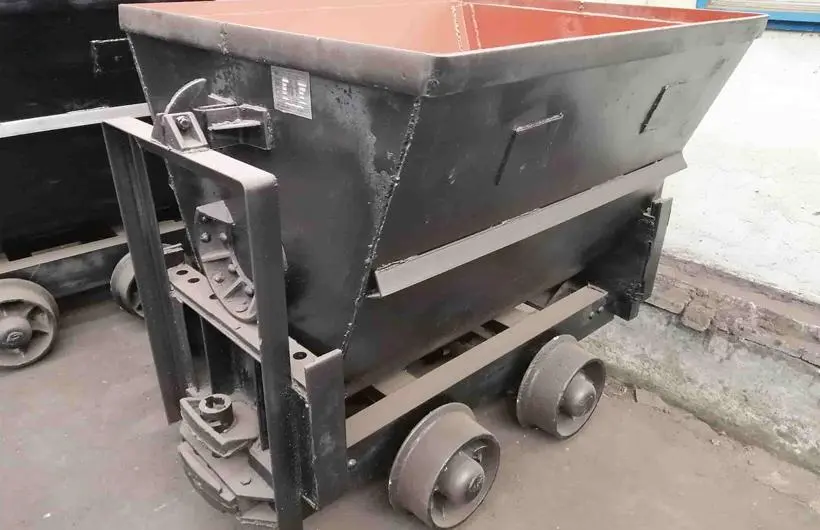

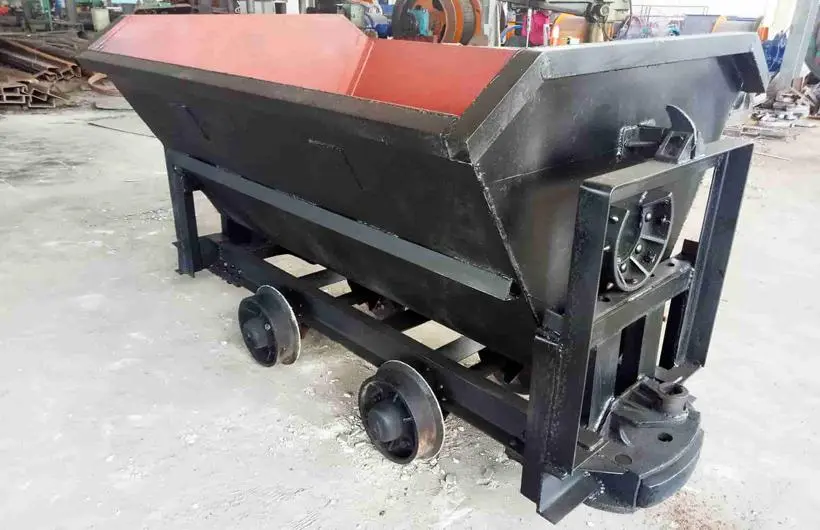

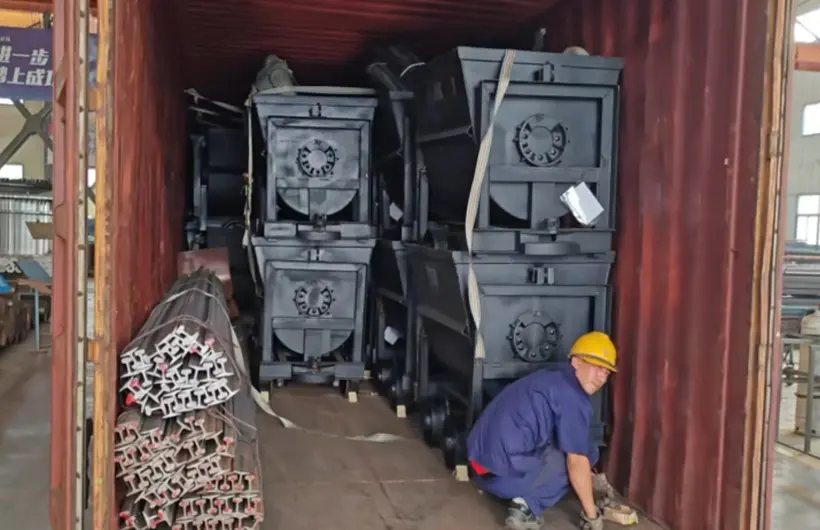

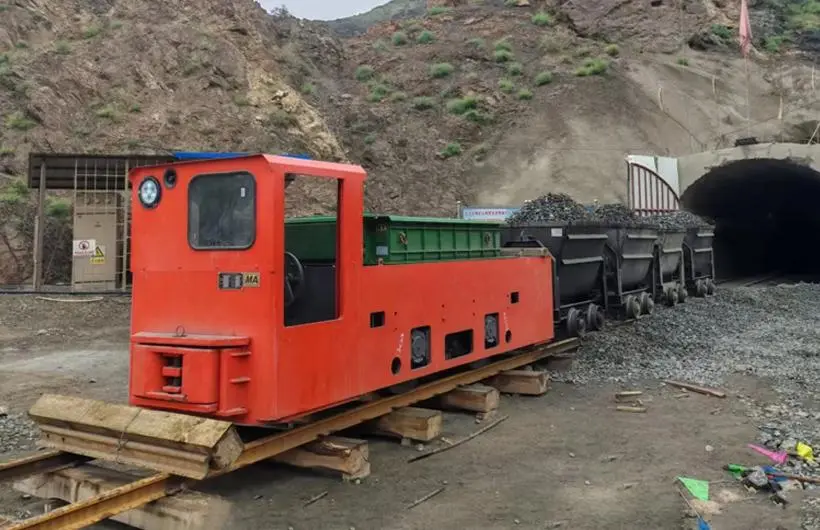

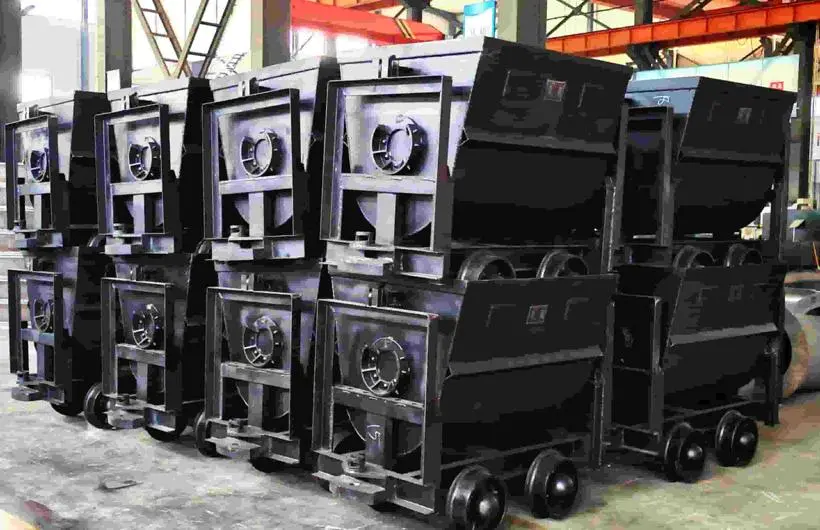

Tipping mine car adopts V-shaped or U-shaped body section, frame tipping rail support. Car body rotates along rails for material unloading. Assembly includes car body, frame, buffer bumpers, wheel axles and other components.
Simple structure, sturdy durable, easy operation. Manual stop plate opening enables quick material unloading. Wheel axles fitted roller bearings, lower running resistance, support manual pushing. Tipping mine car short-distance transport equipment for mining, roadway excavation, tunnel construction, construction sites. Handles bulk lump materials transfer including ore, coal, gravel, muck. V-shaped U-shaped car body, frame tipping rail fixed-point unloading. Simple operation, high unloading efficiency.
Structural Features and Working Principle:

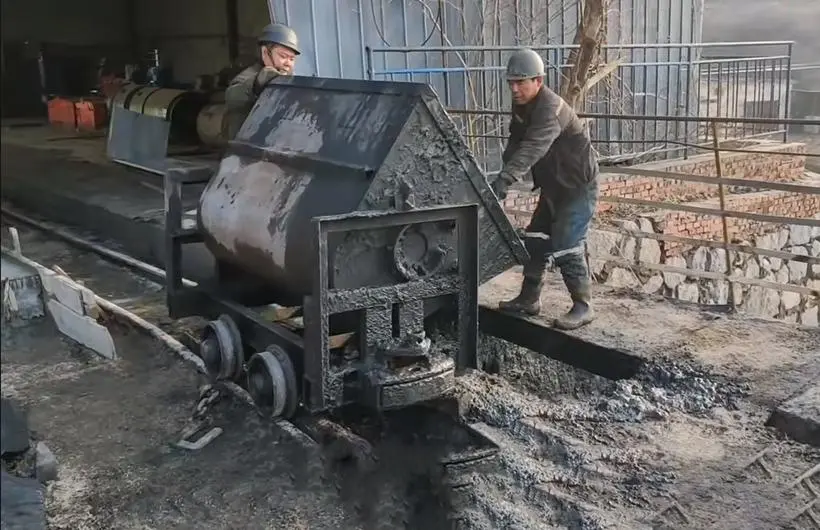

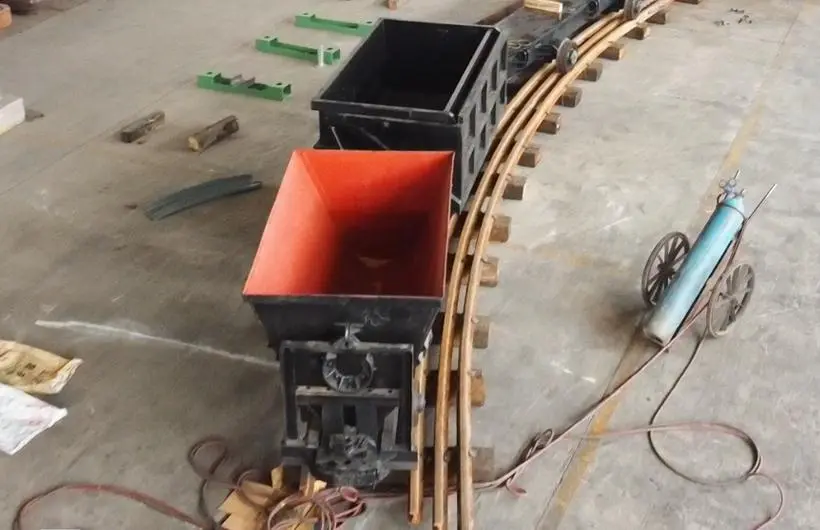

Mine car integrates V-shaped U-shaped car body and arc tipping rail for fast material dumping. Car body section boosts material concentration. Unlocking triggers automatic body tilting along tipping rail via gravity offset, full dumping finished. Whole vehicle sturdy durable structure, assembled car body, frame, buffer bumpers, running wheel sets and other parts. Wheel axle system fitted high-performance roller bearings, low running resistance. Supports locomotive traction manual pushing, adaptable underground open-pit working conditions. Simple reliable mechanical structure, equipment streamlines material loading unloading into three fixed steps: positioning, unlocking, tipping unloading. Guarantees structural strength operational stability, balances lightweight flexibility working efficiency, delivers efficient short-distance material transport for mining enterprises.
| Tipper Mine Car Technical Specifications | ||||||||||||
| Model | Volume capacity |
Load capacity | Track gauge |
Overall dimensions (mm) |
Wheel base |
Wheel diameter | Traction high | Traction force | Dumping angle | Self- weight |
||
| m³ | t | mm | Length | Width | Height | mm | KN | Kg | ||||
| MFC0.55-6 | 0.55 | 0.74 | 600 | 1600 | 850 | 1150 | 500 | 300 | 320 | 60 | ≥40 | ≤500 |
| MFC0.75-6 | 0.75 | 1.01 | 600 | 1700 | 980 | 1250 | 600 | 300 | 320 | 60 | ≥40 | ≤610 |
| MFC1.1-6 | 1.1 | 1.98 | 600 | 2500 | 1400 | 1300 | 800 | 300 | 320 | 60 | ≥40 | ≤680 |
| MFC1.5-6 | 1.5 | 2.7 | 600 | 3360 | 1750 | 1450 | 1000 | 300 | 320 | 60 | ≥40 | ≤1120 |
| YFC0.55-6 | 0.55 | 1.38 | 600 | 1600 | 850 | 1150 | 500 | 300 | 320 | 60 | ≥40 | ≤570 |
| YFC0.75-6 | 0.75 | 1.88 | 600 | 1700 | 980 | 1250 | 600 | 300 | 320 | 60 | ≥40 | ≤740 |
| YFC1.1-6 | 1.1 | 1.98 | 600 | 2500 | 1400 | 1300 | 800 | 300 | 320 | 60 | ≥40 | ≤900 |
