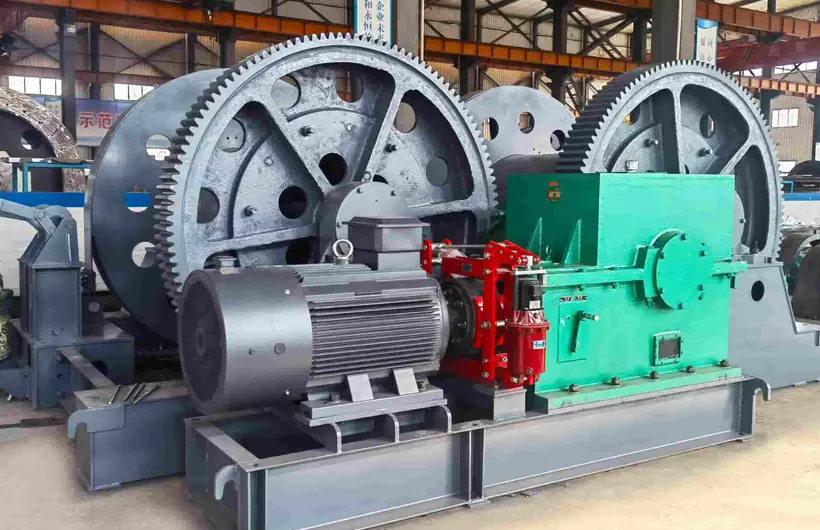

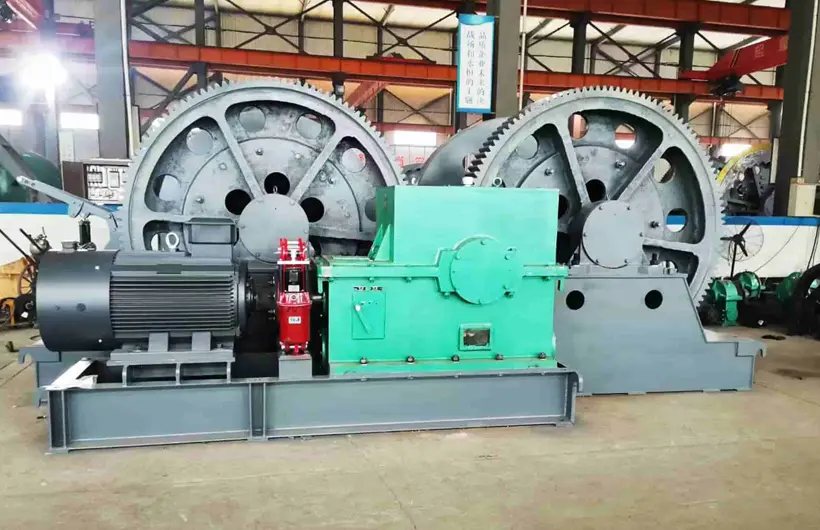

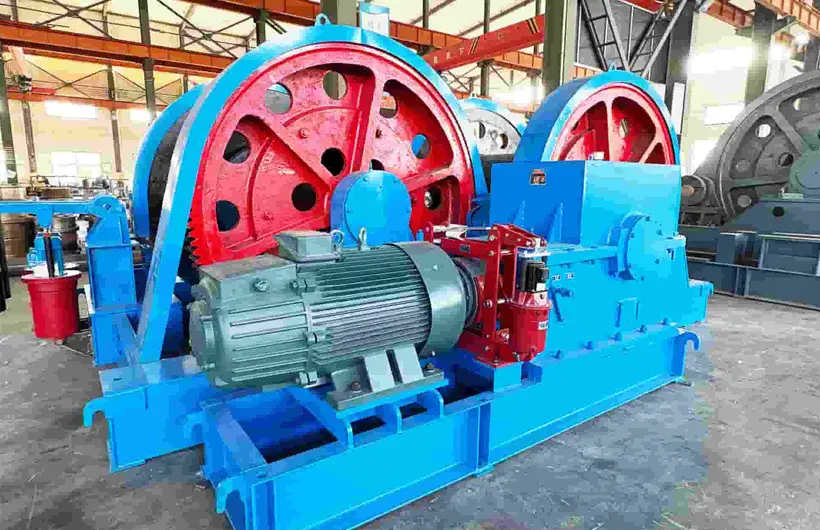

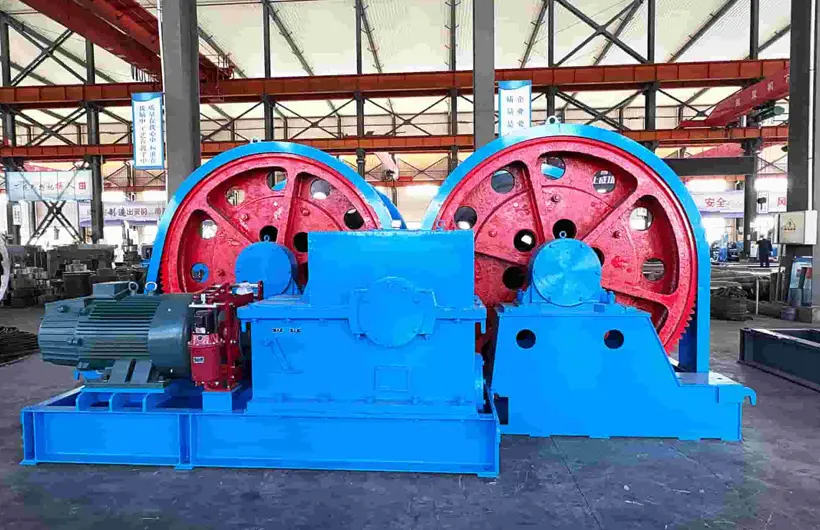

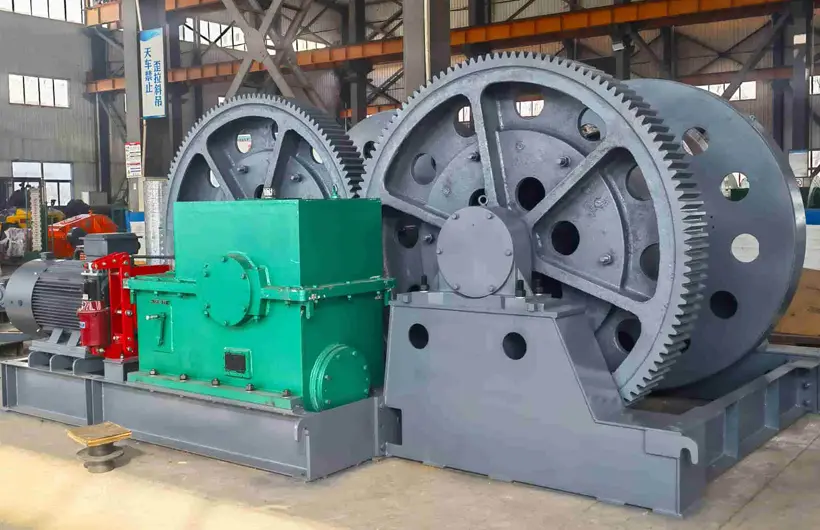

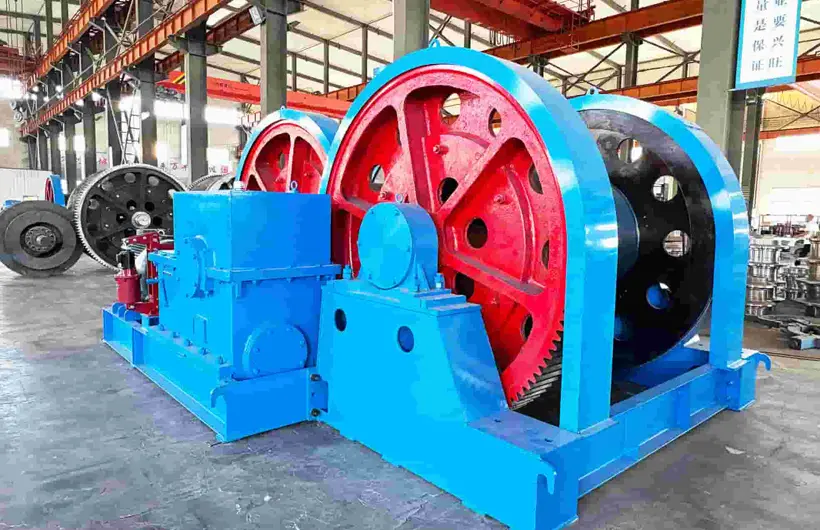

2JZ Series Shaft Sinking Winch
Features: The 2JZ Series shaft sinking winch offers strong lifting capacity, large rope capacity, and smooth operation.
Applications: Primarily used for suspending hoisting platforms, water pumps, air ducts, compressed air cylinders, grouting pipes, and other drilling equipment, as well as for tensioning and stabilizing ropes during shaft excavation in coal, metal, and non-metallic mines. It can also be used for lifting other heavy objects underground and on the surface.
Features: The 2JZ Series shaft sinking winch offers strong lifting capacity, large rope capacity, and smooth operation.
Applications: Primarily used for suspending hoisting platforms, water pumps, air ducts, compressed air cylinders, grouting pipes, and other drilling equipment, as well as for tensioning and stabilizing ropes during shaft excavation in coal, metal, and non-metallic mines. It can also be used for lifting other heavy objects underground and on the surface.
| Technical Parameter Table of 2JZ Sinking Winch | ||||||||
| Category | Model |
Maximum static tension wire rope（KN） |
Drum rope |
Drum diameter（mm） |
First-Layer （m/s） |
Wire rope diameter（mm） | Motor | |
| Power （KW） |
Voltage （V） |
|||||||
| Double-drum sinking car with brake | 2JZ-10/800 | 100 | 800 | 800 | 0 .075 | 32 | 37 | 380 |
| 2JZ-10/1000 | 1000 | |||||||
| 2JZ-16/800 | 160 | 800 | 1000 | 40 | 55 | |||
| 2JZ-16/1000 | 1000 | |||||||
| 2JZ-16/1300 | 1300 | |||||||
| 2JZ-16/1320 | 1320 | |||||||
| 2JZ-25/1300 | 250 | 1300 | 1050 | 52 | 90 | |||
| 2JZ-25/1320 | 1320 | |||||||
| 2JZ-25/1500 | 1500 | |||||||
| 2JZ-25/1600 | 1600 | |||||||
| 2JZ-25/1800 | 1800 | |||||||
| Note: Equipped with conventional and frequency conversion speed regulation modes. | ||||||||
