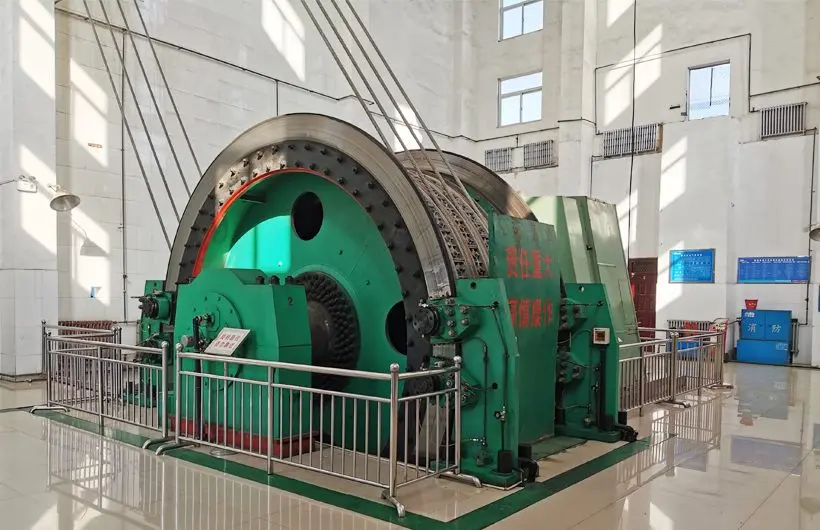

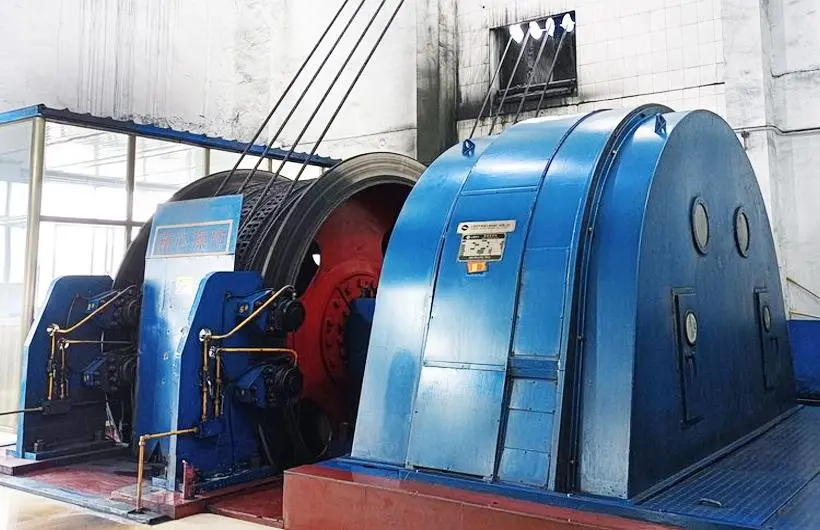

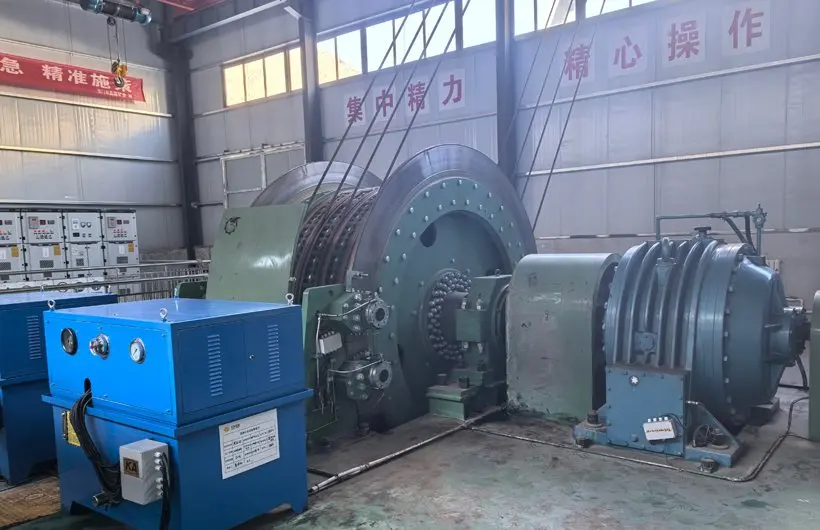

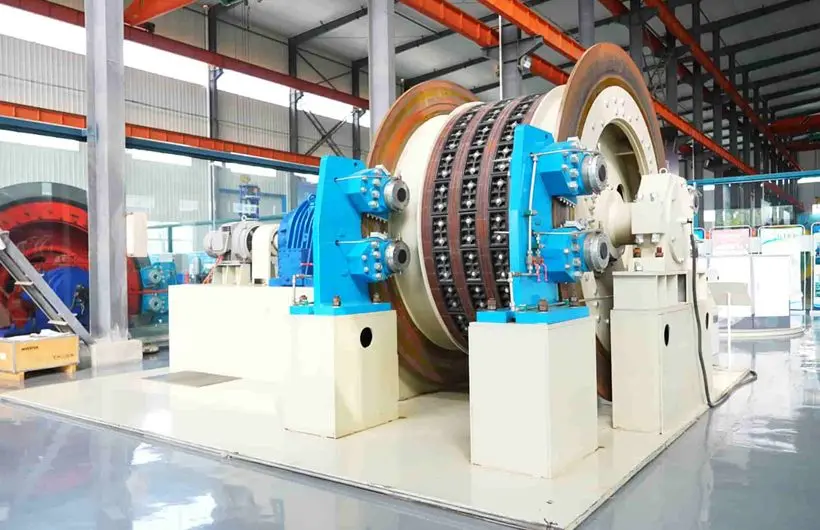

JKMD series multi-rope friction hoist adopts a "floor-mounted" design, featuring the structural characteristics of "machine room on the ground and independent headframe". It is mainly used in the vertical shafts of coal mines, metal mines, and non-metal mines, undertaking the tasks of hoisting and lowering materials, personnel, and equipment, providing an efficient and reliable solution for mine shaft hoisting operations.
Structure Features & Working Principle:
High-performance core equipment for large-scale deep-shaft mines. Based on flexible body friction transmission, it achieves collaborative load-bearing through multiple wire ropes, breaking limits of traditional single-rope drum hoists in lifting height and load capacity. Key equipment for mines with annual output exceeding 4 million tons.
Offers two installation configurations:
○Tower-mounted type: compact structure, high stability, suitable for new large-scale mines with limited surface space.
○Floor-mounted type: eliminates need for headframe, short construction period, low cost, easy maintenance, ideal for renovation and expansion projects.
As an integrated complex system of mechanical, hydraulic and electrical components, it is mainly composed of six core parts:
1. The main shaft assembly serves as power execution unit;

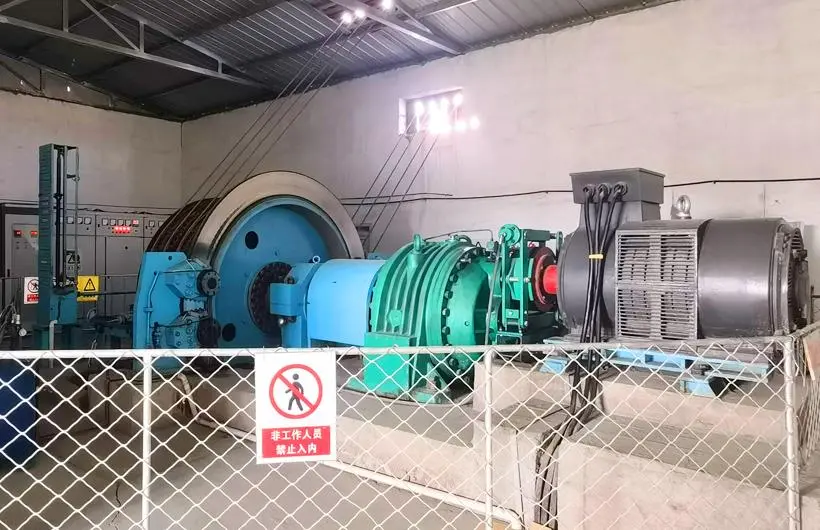

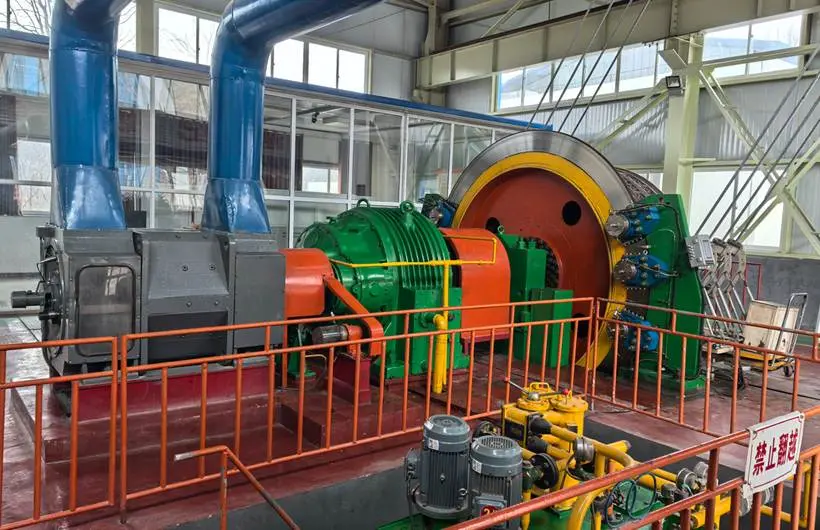

2. The drive system offers optional solutions: "variable frequency motor + gear reducer" or the more advanced "low-speed motor direct drive";
3. The braking system uses rear-cylinder disc brakes combined with a constant deceleration hydraulic power station to provide dual safety guarantees;
4. The sheave deflector wheel assembly adopts eccentric design polymer liners to reduce wear;
5. The electrical control system integrates intelligent control functions such as digital speed regulation, PLC control, automatic zero adjustment and online monitoring;
6. Auxiliary devices, rope groove turning device, ensure uniform tension of the steel wire ropes.
| JKMD Basic parameters of ground-mounted multi-rope friction hoist | |||||||||||
| Model | Sheave wheel diameter | Number wire ropes | Friction coefficient | Max static tension | Max static tension difference | Max diameter | Spacing | Max hoisting speed | Sheave wheel dia |
Elev angle |
|
| With speed reducer | Without speed reducer | ||||||||||
| m | rope | KN | KN | mm | mm | m/s | m | (°) | |||
| JKMD-1.6×4 | 1.60 | 4 | 0.25 | 120 | 35 | 16 | 250 | 8.0 | 16.0 | 1.60 | 40 to 90 |
| JKMD-1.85×4 | 1.85 | 180 | 55 | 20 | 10.0 | 1.85 | |||||
| JKMD-2×4 | 2.00 | 215 | 65 | 22 | 2.00 | ||||||
| JKMD-2.25×4 | 2.25 | 280 | 80 | 24 | 2.25 | ||||||
| JKMD-2.6×4 | 2.60 | 330 | 100 | 28 | 300 | 15.0 | 2.60 | ||||
| JKMD-2.8×4 | 2.80 | 420 | 120 | 30 | 2.80 | ||||||
| JKMD-3×4 | 3.00 | 480 | 140 | 32 | 3.00 | ||||||
| JKMD-3.25×4 | 3.25 | 620 | 180 | 36 | 3.25 | ||||||
| JKMD-3.5×4 | 3.50 | 700 | 200 | 38 | 3.50 | ||||||
| JKMD-3.5×6 | 6 | 1050 | 300 | - | |||||||
| JKMD-4×4 | 4.00 | 4 | 950 | 270 | 44 | 350 | 18.0 | 4.00 | |||
| JKMD-4×6 | 6 | 1400 | 400 | ||||||||
| JKMD-4.5×4 | 4.50 | 4 | 1200 | 350 | 50 | 4.50 | |||||
| JKMD-4.5×6 | 6 | 1750 | 500 | ||||||||
| JKMD-5×4 | 5.00 | 4 | 1400 | 400 | 54 | 5.00 | |||||
| JKMD-5×6 | 6 | 2000 | 600 | ||||||||
| JKMD-5.5×4 | 5.50 | 4 | 1750 | 500 | 60 | 5.50 | |||||
| JKMD-5.5×6 | 6 | 2400 | 700 | ||||||||
| JKMD-5.7×4 | 5.70 | 4 | 1850 | 530 | 62 | 5.70 | |||||
| JKMD-6×4 | 6.00 | 2000 | 600 | 66 | 20.0 | 6.00 | |||||
| JKMD-6×6 | 6 | 2700 | 700 | ||||||||
| JKMD-6.2×4 | 6.20 | 4 | 2200 | 630 | 68 | 6.20 | |||||
| JKMD-6.5×4 | 6.50 | 2500 | 700 | 72 | 6.50 | ||||||
| JKMD-6.5×6 | 6 | 3250 | 900 | 400 | |||||||
| JKMD-6.75×4 | 6.75 | 4 | 2650 | 730 | 74 | 6.75 | |||||
| JKMD-6.75×6 | 6 | 3500 | 900 | ||||||||
| JKMD-7×4 | 7.00 | 4 | 2800 | 800 | 76 | 7.00 | |||||
| JKMD-7×6 | 6 | 3750 | 1000 | 425 | |||||||
| JKMD-7.5×4 | 7.50 | 4 | 3200 | 900 | 82 | 7.50 | |||||
| JKMD-7.5×6 | 6 | 4450 | 1200 | ||||||||
| Product specifications listed in this table preferred specifications. During selection, if anti-slip calculation system does not meet the requirements, entire hoisting system may be adjusted. If the requirements still not met, select next higher specification. For large multi-rope friction hoists high installed power, where single-drive transmission cannot meet operational requirements, TypeⅣ dual-motor drive is preferred. | |||||||||||
