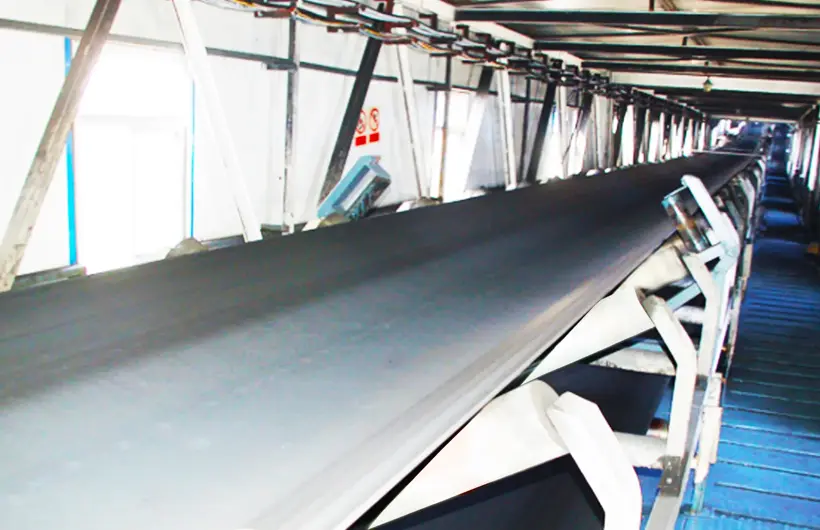

DTL general fixed belt conveyor, also known as a belt conveyor or rubber belt conveyor, material handling equipment.Drive unit motor gearbox rotates drive pulley, friction drives closed-loop conveyor belt. Materials load tail receiving point line position, move smoothly with belt, discharge head pulley discharge device.
Layout: Supports multiple installation methods horizontal/inclined configurations.
Function: Select reliable braking and backstop devices per working conditions and safety needs, fully satisfying complex process layouts and safe operation.
Coal Mining: As the backbone of coal mine logistics systems, it reliably handles raw coal transport from underground working faces, open-pit mining conveying, and transfer/stockpiling operations at surface coal yards.
Metallurgy: Conveys ore, coke, and sinter. Power Plants: Transports fuel coal.
Other Industries: Supports continuous handling of raw materials, finished products, and waste in chemical, building materials, and other production processes.
Structure Features & Working Principle:
Mechanical Structure: Robust, simple design with standardized, universal parts for easy maintenance.

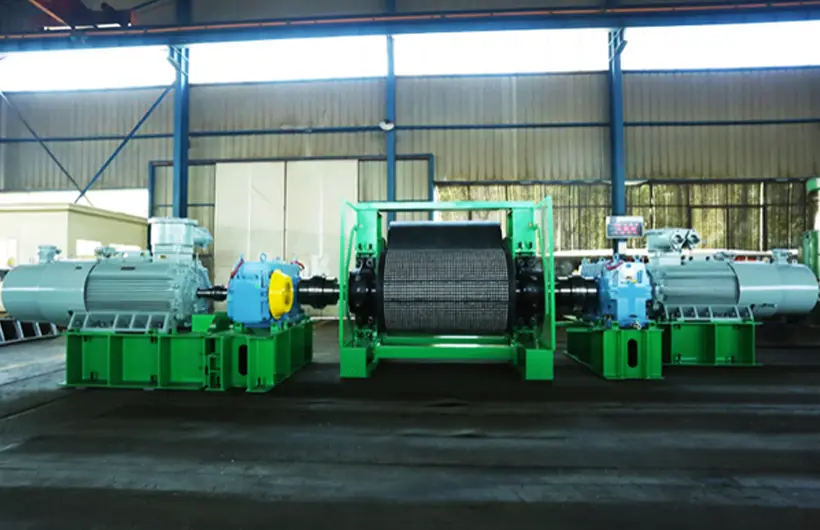

Drive Configuration: Flexible powerful options: high-power single-point drive, long-distance multi-point drive. Soft start, variable frequency control, CST controlled start realize smooth heavy-load startup.
Control System: Full electrical control with full safety protection: belt deviation, slip, emergency stop tear detection. Supports automatic operation remote monitoring.
Core Value Summary: DTL fixed belt conveyor features modular structure, superior operational reliability, intelligent drive control configurations. Provides efficient material conveying solution for long-distance, high-volume, complex working conditions. Serves as core tool upgrading production line efficiency. Acts as strategic equipment ensuring safe, stable, continuous whole-process operation.
| Parameter Table of DTL Fixed Belt Conveyor | ||||||||
| Model | Conveying capacity (t/h) | Belt width (mm) | Belt speed (m/s) | Conveying length (m) | Motor power (KW) | Drum diameter (φmm) | Idler diameter (φmm) | Inclination angle (°) |
| DTL65/15/2×37 | 150 | 650 | 2 | 500 | 2×37 | 500 | 89 | |
| DTL65/30/2×55 | 300 | 650 | 2 | 500 | 2×55 | 500 | 89 | |
| DTL80/40/2×40 | 400 | 800 | 2 | 500 | 2×40 | 500 | 89 | 0-10 |
| DTL80/40/2×55 | 400 | 800 | 2 | 700 | 2×55 | 500 | 89 | |
| DTL80/40/2×75 | 400 | 800 | 2 | 1000 | 2×75 | 630 | 89 | |
| DTL80/40/2×90 | 400 | 800 | 2 | 1200 | 2×90 | 630 | 89 | 0-15 |
| DTL80/50/2×110S | 500 | 800 | 2.5 | 1200 | 2×110 | 800 | 89 | |
| DTL80/50/2×132S | 500 | 800 | 2.5 | 1400 | 2×132 | 800 | 89 | |
| DTL100/63/2×75S | 630 | 1000 | 2 | 700 | 2×75 | 800 | 108 | 0-7 |
| DTL100/63/2×90S | 630 | 1000 | 2 | 1000 | 2×90 | 800 | 108 | 0-10 |
| DTL100/63/2×110S | 630 | 1000 | 2 | 1200 | 2×110 | 800 | 108 | |
| DTL100/6312×132S | 630 | 1000 | 2 | 1400 | 2×132 | 800 | 108 | 0-15 |
| DTL100/63/2×160S | 630 | 1000 | 2.5 | 1400 | 2×160 | 800 | 108 | |
| DTL100/63/2×220S | 630 | 1000 | 2.5 | 1600 | 2×220 | 800 | 108 | |
| DTL100/63/2×250S | 630 | 1000 | 2.5 | 1800 | 2×250 | 800 | 108 | |
| DTL120/80/2×280S | 800 | 1200 | 3.15 | 1000 | 2×280 | 1000 | 133 | |
| DTL120/120/2×315S | 1200 | 1200 | 3.15 | 1200 | 2×315 | 1000 | 133 | 0-14 |
| DTL120/120/2×450S | 1200 | 1200 | 3.15 | 1500 | 2×450 | 1000 | 133 | 0-18 |
