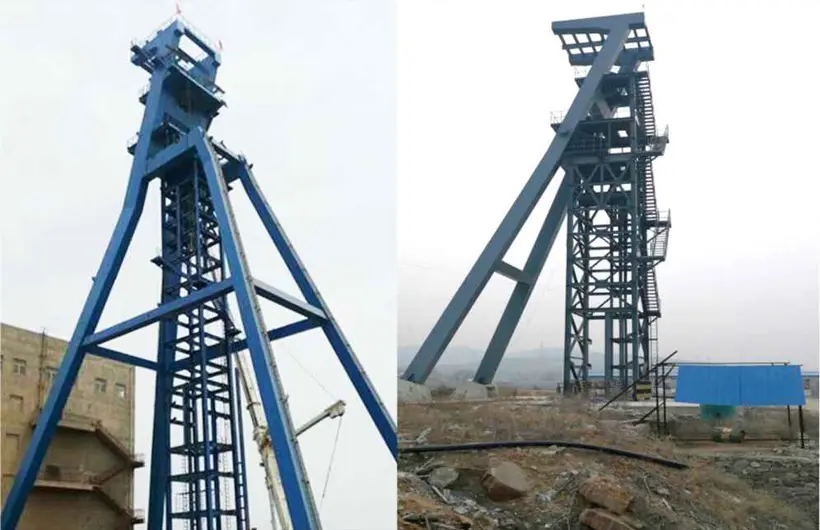

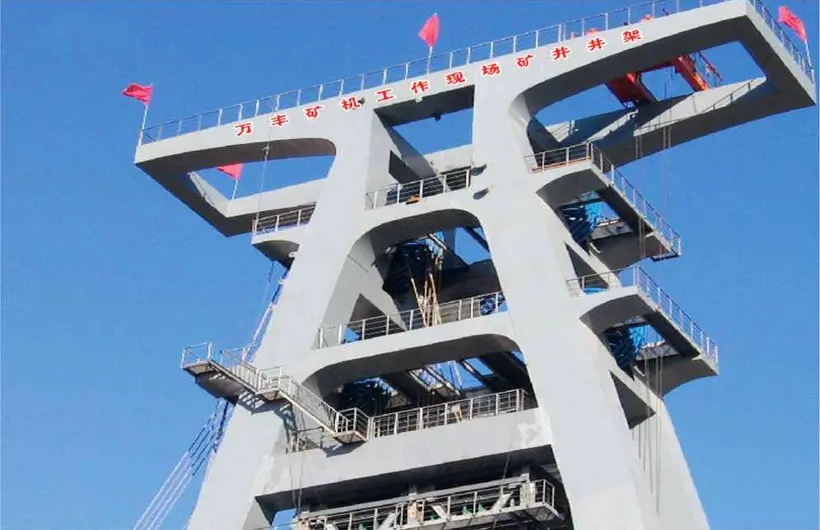

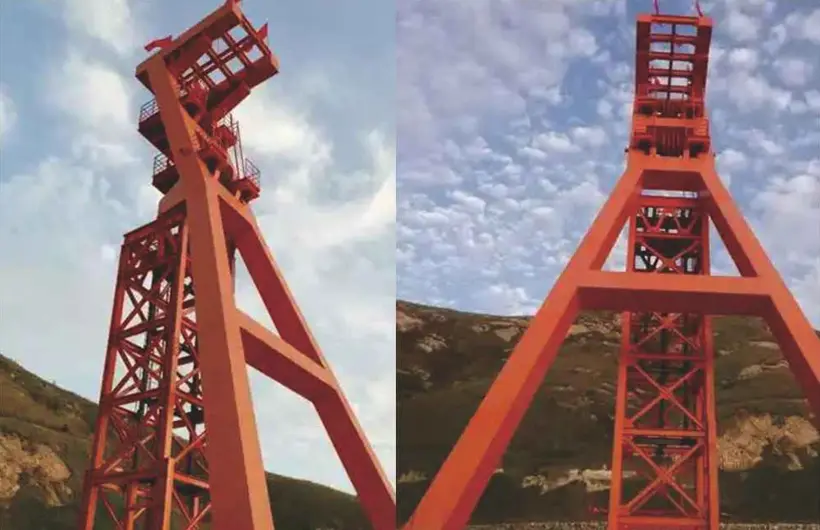

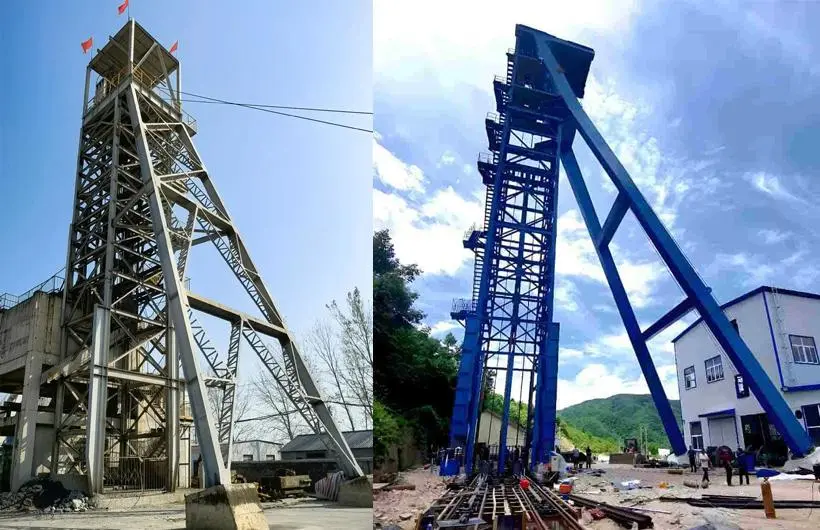

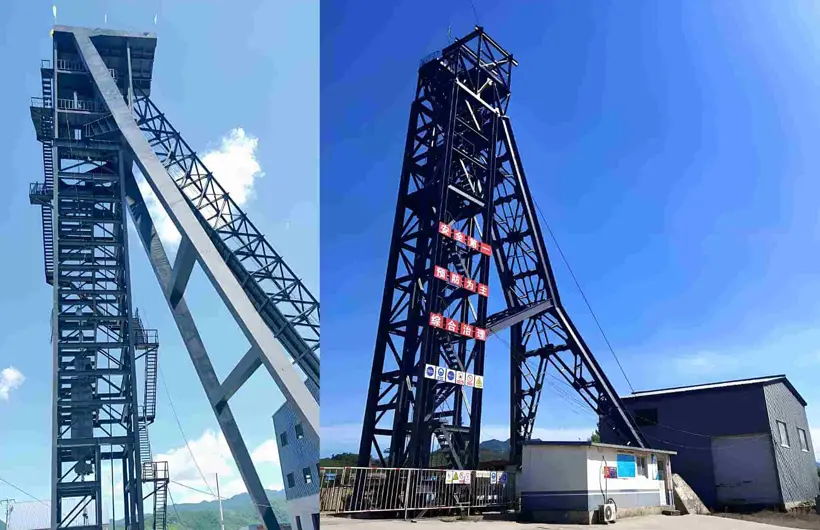

Mining Permanent Headframe

Support headframes evolve alongside ground multi-rope friction and single-rope winding hoists. Unique design delivers large span, heavy load capacity, simple structure, rational force distribution, low construction volume, high cost efficiency and advanced performance.

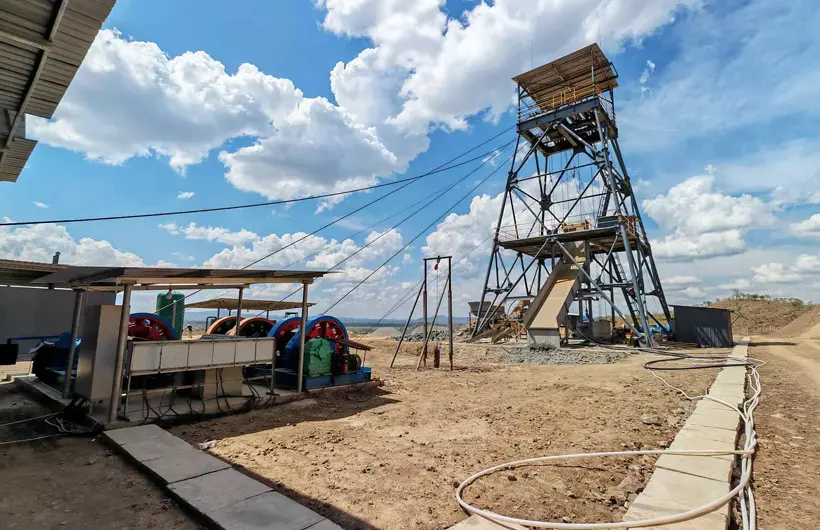

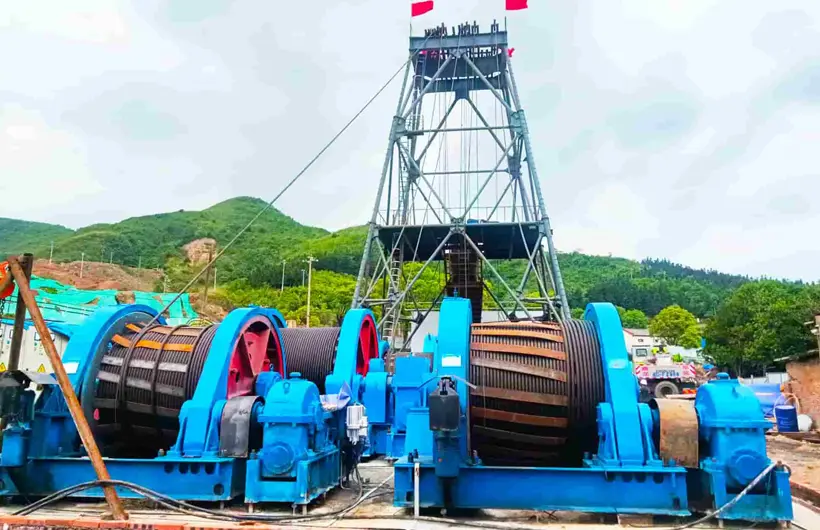

Shaft construction finished, sinking headframe convertible to production headframe for mine operation needs. Vertical multi-rope friction headframe custom-built for multi-rope friction hoisting system mines. Widely used in coal, metal, non-metal mine vertical shafts for coal ore hoisting, personnel transit, material equipment delivery. Inclined permanent headframe core facility modern mine hoisting systems, custom engineered ground multi-rope friction winding hoisting systems. Temporary sinking headframe converts to permanent type post shaft completion, fulfills mine long-term production demands.

Send Message

FacebookTwitterLinkedInPinterestShare

Structure Features & Working Principle:

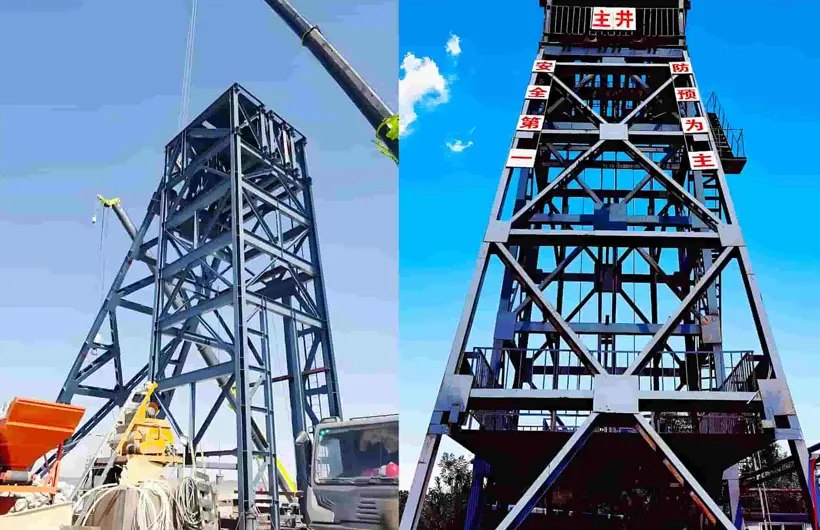

Headframe modular steel structure, high-strength bolt connection, fast on-site assembly. Optimized load transfer path core structural advantage: hoisting loads transfer sheave platform main truss, inclined support system deliver loads foundation. Main structure bears permanent hoisting system long-term full-load dynamic loads. Resists multi-rope friction hoists large working tension and frequent start-stop impact loads, maintains superior structural stability.
Dedicated to Permanent Hoisting Systems:
Designed specifically for ground-based multi-rope friction and winding hoisting systems, ensuring long-term operational reliability for mines.
Optimized Structure, Cost-Effective & Efficient:
Features a large-span inclined support structure with rational force distribution and efficient construction, significantly reducing both construction costs and project duration.
Modular & Rapid Construction:
Modular steel structure design with high-strength bolted connections for quick on-site assembly.
Scientific & Reliable Load Transmission:
Hoisting loads travel directly from the sheave platform through the inclined support truss to the foundation, with a clear and stable load-bearing path.
Strong Adaptability to Long-Term Dynamic Loads:
Effectively withstands sustained tension and start-stop impact loads from multi-rope friction hoists, ensuring reliable full-load long-term operation.
Safe & Stable Structure:
The inclined support design delivers excellent wind and seismic resistance, ensuring the safety and stability of the hoisting system under complex working conditions.
