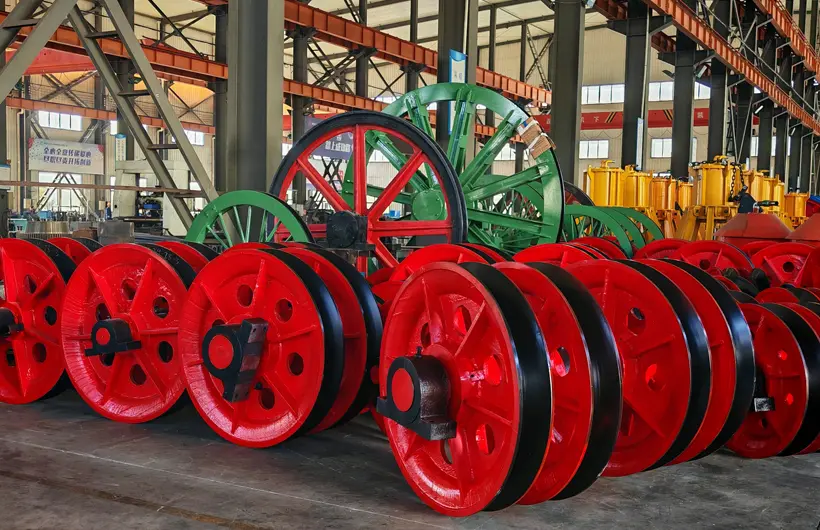

Sinking head sheaves custom built vertical shaft construction steel wire rope guiding support. Single-groove double-groove optional designs. Durable alloy copper bushings, integrated lubrication oil cups, double-groove adjustable spacing equipped. Rugged reliable, harsh working condition adaptable. Critical upgrade deep well underground projects. Secures safer higher-efficient operation.
Sinking head sheaves core load-bearing guiding components vertical shaft excavation, deep well construction, large underground engineering. High-load high-frequency high-reliability vertical hoisting system design. Covers extensive heavy-duty lifting applications.

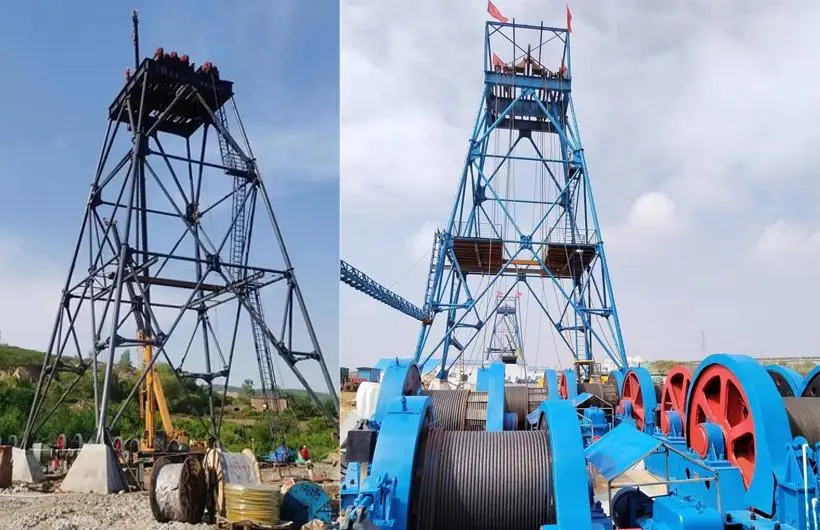

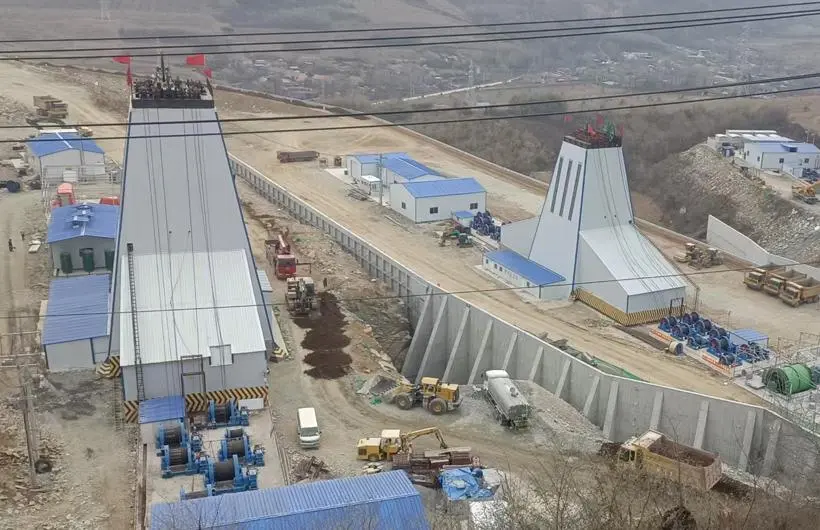

Shaft sinking phase: Guide ropes kibble sinking buckets, sinking hanging platforms, safety ladders efficiently transport personnel, materials, equipment vertically.
Mine production & roadway extension: Provide stable rope guidance cage hoisting systems, material transfer systems, auxiliary equipment.
Infrastructure projects: Support heavy hoisting vertical transport bridge pile foundation holes, underground diaphragm walls, deep foundation pits.
Emergency & maintenance tasks: Handle temporary, high-load lifting operations such as underground equipment repairs and emergency rescue hoisting.
Single-groove sheaves are primarily used to suspend hanging platforms, formwork, and stabilizing ropes, while double-groove models are ideal for hanging ventilation ducts and pipelines during construction.
Structure Features & Working Principle:
Structure Features: sinking head sheave adopts a modular heavy-duty design, consisting of the following core units
Sheave Body: High-strength alloy steel material, integral heavy forging multi-layer steel plate box welding forming. Superior torsional rigidity fatigue resistance performance. Rope groove precision CNC machining, surface hardening treatment, durable guiding surface.
Bearing System: Fitted large-diameter double-row spherical roller bearings high-strength sliding bearings. Optimized low-speed heavy-load working conditions. Delivers outstanding radial load capacity self-aligning performance.

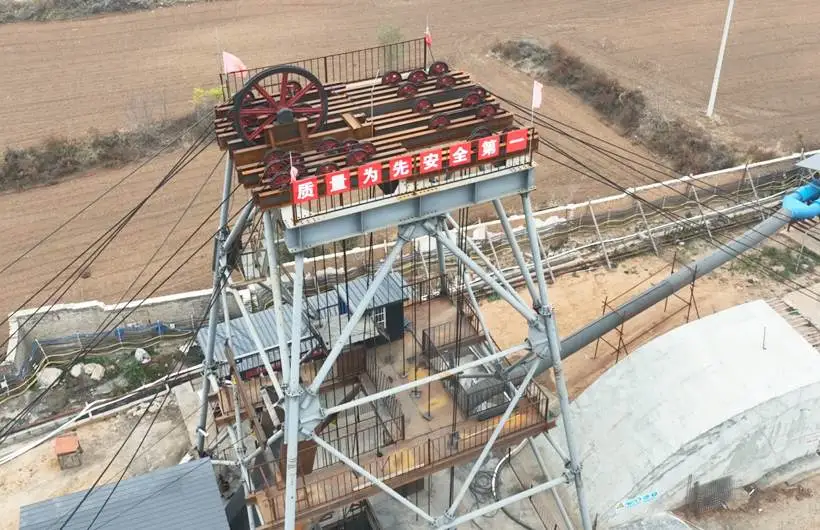

Support Frame: Heavy-duty steel plate box-welded frame construction, high structural stability. Ground-fixed headframe-mounted installation compatible. Adjustable base plates enable quick on-site setup precision alignment.
Safety Accessories: Anti-rope-jump devices, auto lubrication, vibration monitoring. Enhance safety & maintainability.
Working Principle: head sheave is mounted on the support shaft via a precision bearing system, using rolling friction to ensure smooth rope guidance and power transmission.
Dynamic Load Bearing: Scientifically distributes combined loads from lifting tackle, materials, and rope self-weight, transferring forces efficiently to the support headframe.
Adaptive Guidance: Optimized groove curve design adapts to changes in the rope’s running path, significantly reducing uneven wear and extending rope service life.
Shock Absorption & Buffering: High-rigidity structure and precision bearing clearance control absorb impact vibrations from start-up, braking, and sudden load changes, protecting the entire hoisting system.
| Technical Parameters of Single-Groove Shaft Sinking Suspension Sheave | ||||||||||
| Model | Maximum steel wire rope diameter (mm) | Max allowable static tension of single steel rope (kN) | Main Dimensions | |||||||
| Shaft dia |
Journal dia | Sheave dia | Outer dia | Shaft base spacing | Shaft length | Center height | Bolt hole dimension of bearing housing (Φ×A×B) | |||
| mm | ||||||||||
| MZS2.1-0-1*0.5 | 23 | 50(5) | 90 | 70 | 500 | 565 | 280 | 430 | 90 | 26*70*220 |
| MZS2.1-0-1*0.65 | 31 | 100(10) | 100 | 85 | 650 | 775 | 340 | 490 | 100 | 26*70*250 |
| MZS2.1-0-1*0.8 | 40 | 160(16) | 120 | 100 | 800 | 960 | 400 | 560 | 110 | 26*80*280 |
| MZS2.1-0-1*1.05 | 52 | 250(25) | 150 | 120 | 1050 | 1260 | 460 | 620 | 120 | 26*80*300 |
| MZS2.1-0-1*1.25 | 60.5 | 400(40) | 180 | 140 | 1250 | 1495 | 520 | 680 | 140 | 26*80*330 |
| Technical Parameters of Double-Groove Shaft Sinking Suspension Sheave | |||||||||||
| Model | Maximum steel wire rope diameter (mm) | Max allowable static tension of single steel rope (kN) | Main Dimensions | ||||||||
| Shaft dia |
Sheave dia | Outer dia | Sheave spacing | Shaft support spacing | Sheave base spacing | Shaft length | Center height | Bolt hole size of bearing seat (Φ×A×B) | |||
| mm | |||||||||||
| MZS2.2-0-2×0.5/270-320 | 23 | 50(5) | 120 | 500 | 595 | 270-320 | 590-640 | 160 | 800 | 120 | 26×80×300 |
| MZS2.2-0-2×0.5/630-750 | 23 | 50(5) | 120 | 500 | 595 | 630-750 | 950-1070 | 160 | 1230 | 120 | 26×80×300 |
| MZS2.2-0-2×0.65/270-420 | 31 | 100(10) | 150 | 650 | 775 | 270-420 | 630-780 | 180 | 940 | 140 | 26×80×330 |
| MZS2.2-0-2×0.65/630-850 | 31 | 100(10) | 150 | 650 | 775 | 630-850 | 990-1210 | 180 | 1370 | 140 | 26×80×330 |
| MZS2.2-0-2×0.8/270-420 | 40 | 160(16) | 180 | 800 | 960 | 270-420 | 670-820 | 200 | 990 | 160 | 26×80×330 |
| MZS2.2-0-2×0.8/850-960 | 40 | 160(16) | 180 | 800 | 960 | 850-960 | 1250-1360 | 200 | 1530 | 160 | 26×90×370 |
| MZS2.2-0-2×1.05/320-420 | 52 | 250(25) | 210 | 1050 | 1260 | 320-420 | 800-900 | 240 | 1070 | 160 | 26×90×440 |
| MZS2.2-0-2×1.05/850-960 | 52 | 250(25) | 210 | 1050 | 1260 | 850-960 | 1330-1440 | 240 | 1610 | 180 | 26×90×440 |
| MZS2.2-0-2×1.25/320-420 | 60 | 400(40) | 240 | 1250 | 1260 | 320-420 | 800-900 | 240 | 1070 | 160 | 26×90×440 |
| MZS2.2-0-2×1.25/850-960 | 60 | 400(40) | 240 | 1250 | 1260 | 850-960 | 1330-1440 | 240 | 1610 | 180 | 26×90×440 |
| Note 1: Clean and replace lubricant after more than half a year of service. Note 2: Replace the tapered end of locking screw promptly if damaged. Note 3: Regularly check lubrication of alloy copper sleeve and fixed shaft, and refill lubricant when necessary. |
|||||||||||
