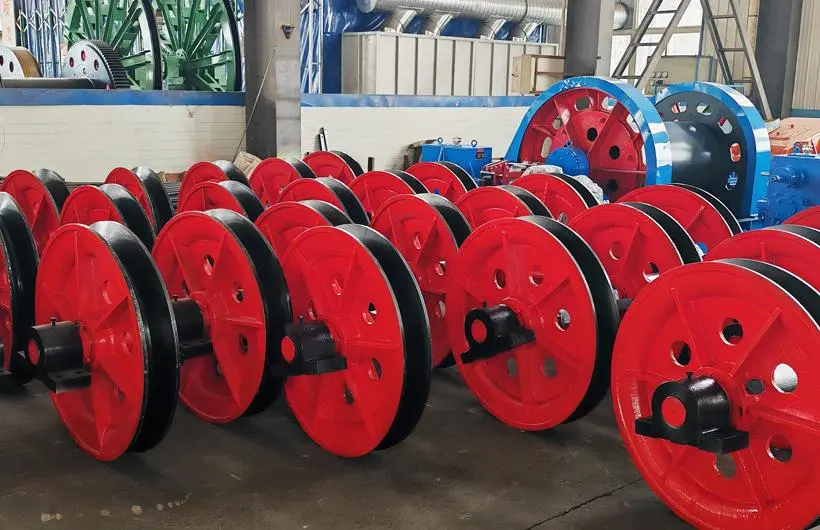

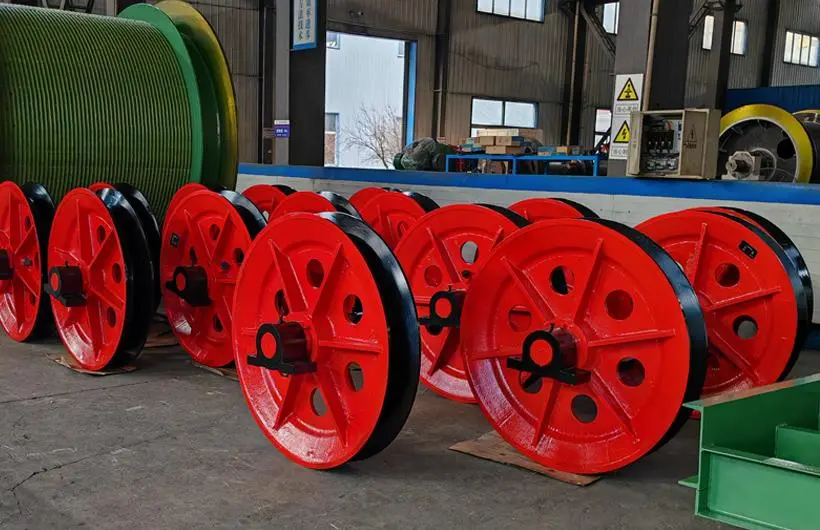

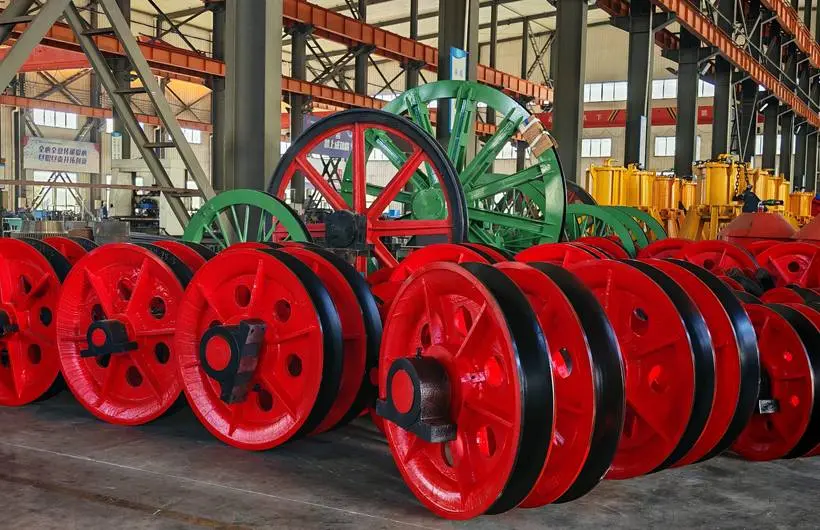

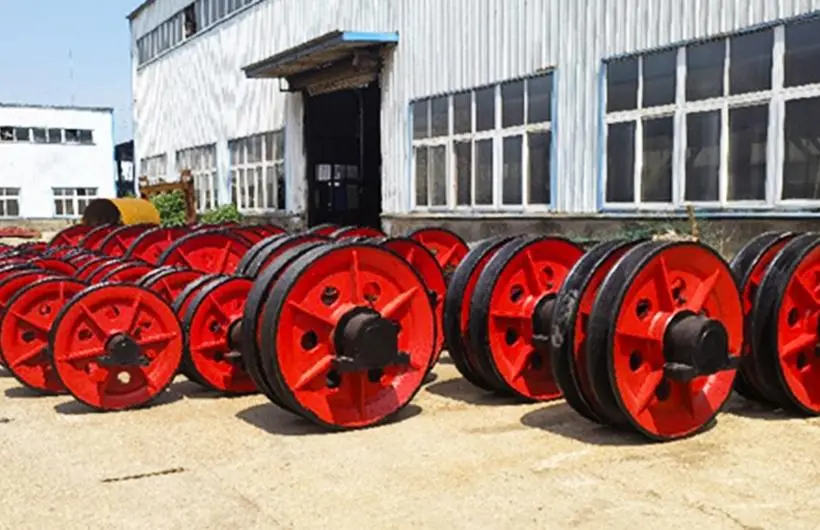

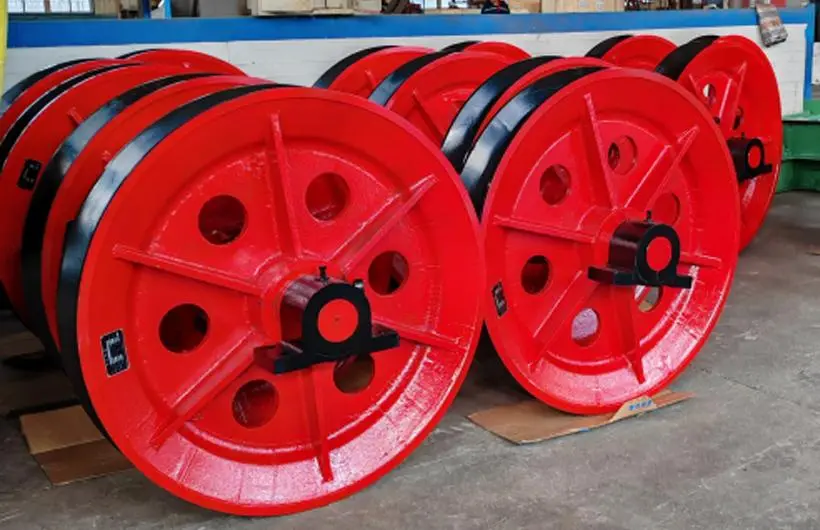

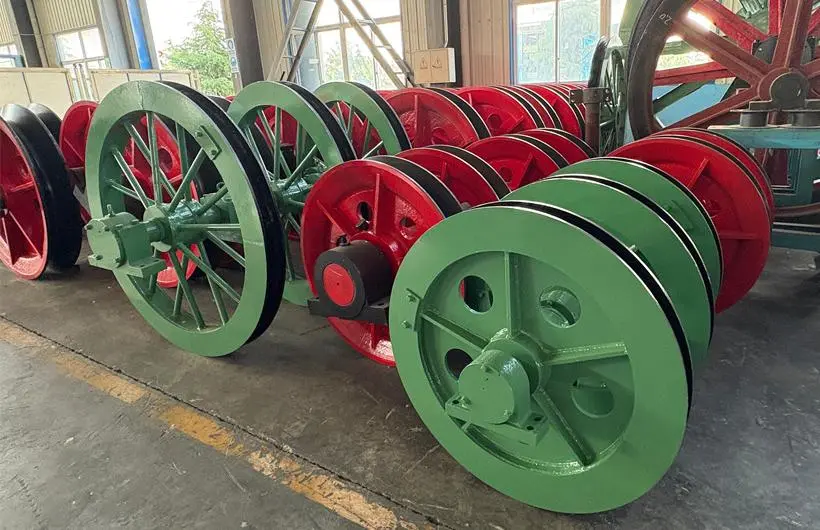

Sinking head sheaves purpose-built to guide and support steel wire ropes during vertical shaft construction. Available in single-groove and double-groove designs, they feature durable alloy copper bushings, integrated lubrication oil cups, and adjustable spacing (for Single-groove models). Rugged, reliable, and adaptable to harsh conditions.
Sinking head sheaves are core load-bearing and guiding components for vertical shaft excavation, deep well construction, and large-scale underground engineering.
Shaft sinking phase: Guide ropes for kibble sinking buckets, sinking hanging platforms, and safety ladders to efficiently transport personnel, materials, and equipment vertically.
Mine production & roadway extension: Provide stable rope guidance for cage hoisting systems, material transfer systems, and auxiliary equipment.
Structure Features & Working Principle:
○Sheave Body: Made of high-strength alloy steel, either via heavy-duty one-piece forging or multi-layer steel plate box welding. It delivers excellent torsional rigidity and fatigue resistance. The rope groove is precision CNC-machined and surface-hardened for a durable guiding surface.
○Bearing System: Equipped with large-diameter double-row spherical roller bearings or high-strength sliding bearings, optimized for low-speed, heavy-load conditions, offering superior radial load capacity and self-aligning performance.
○Support Frame: Built with heavy-duty steel plate box-welded frames for high stability. It supports ground-fixed or headframe-mounted installation, with adjustable base plates for easy on-site setup and precision alignment.
○Safety Accessories: Integrated with anti-rope-jump devices, centralized automatic lubrication systems, and vibration monitoring interfaces to enhance operational safety.
The head sheave is mounted on the support shaft via a precision bearing system, using rolling friction to ensure smooth rope guidance and power transmission.
Dynamic Load Bearing: Scientifically distributes combined loads from lifting tackle, materials, and rope self-weight, transferring forces efficiently to the support headframe for stable operation.
Adaptive Guidance: Optimized groove curve design adapts to changes in the rope’s running path, significantly reducing uneven wear and extending rope service life.
Shock Absorption & Buffering: High-rigidity structure and precision bearing clearance control absorb impact vibrations from start-up, braking, and sudden load changes, protecting the entire hoisting system.
| Technical Parameters of Single-Groove Shaft Sinking Suspension Sheave | ||||||||||
| Model | Maximum steel wire rope diameter (mm) | Max allowable static tension of single steel rope (kN) | Main Dimensions | |||||||
| Shaft dia |
Journal dia | Sheave dia | Outer dia | Shaft base spacing | Shaft length | Center height | Bolt hole dimension of bearing housing (Φ×A×B) | |||
| mm | ||||||||||
| MZS2.1-0-1*0.5 | 23 | 50(5) | 90 | 70 | 500 | 565 | 280 | 430 | 90 | 26*70*220 |
| MZS2.1-0-1*0.65 | 31 | 100(10) | 100 | 85 | 650 | 775 | 340 | 490 | 100 | 26*70*250 |
| MZS2.1-0-1*0.8 | 40 | 160(16) | 120 | 100 | 800 | 960 | 400 | 560 | 110 | 26*80*280 |
| MZS2.1-0-1*1.05 | 52 | 250(25) | 150 | 120 | 1050 | 1260 | 460 | 620 | 120 | 26*80*300 |
| MZS2.1-0-1*1.25 | 60.5 | 400(40) | 180 | 140 | 1250 | 1495 | 520 | 680 | 140 | 26*80*330 |
