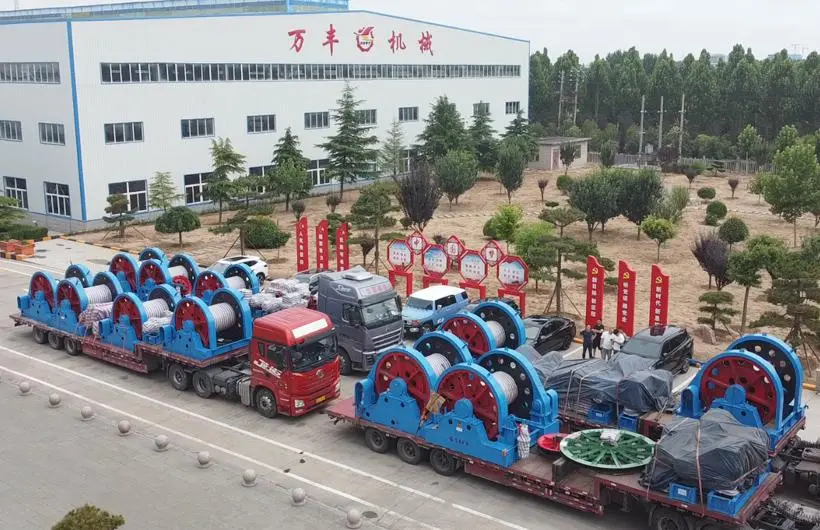

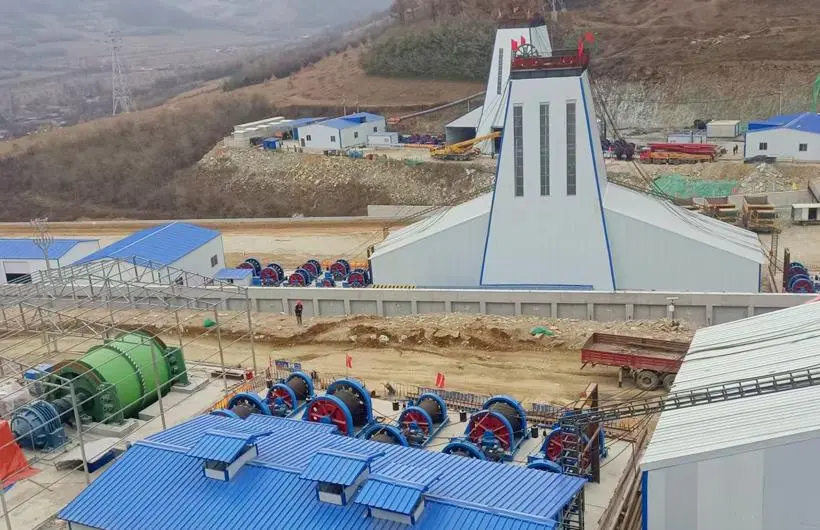

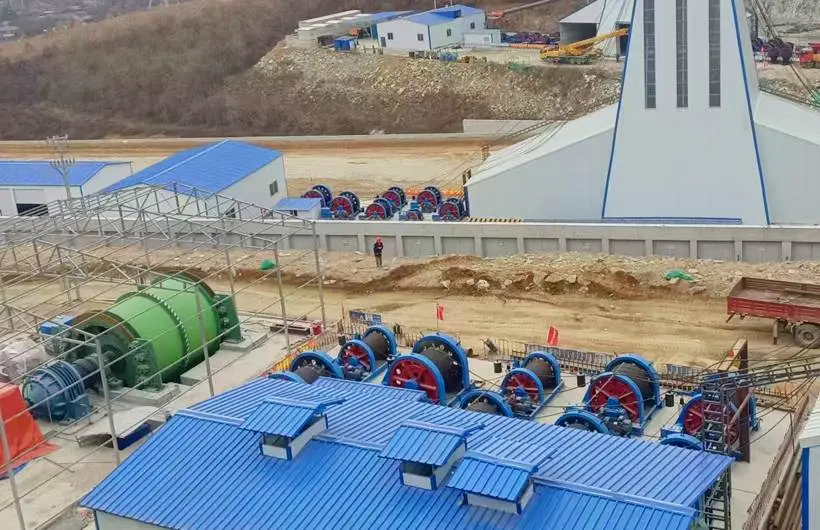

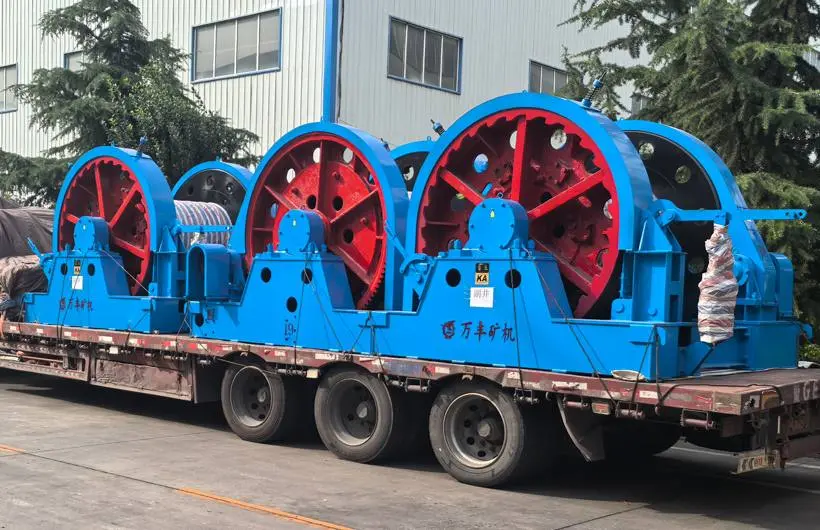

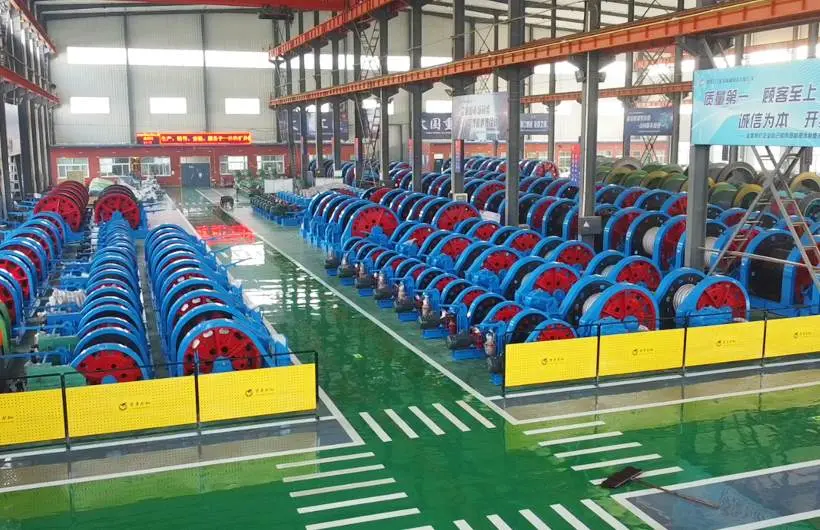

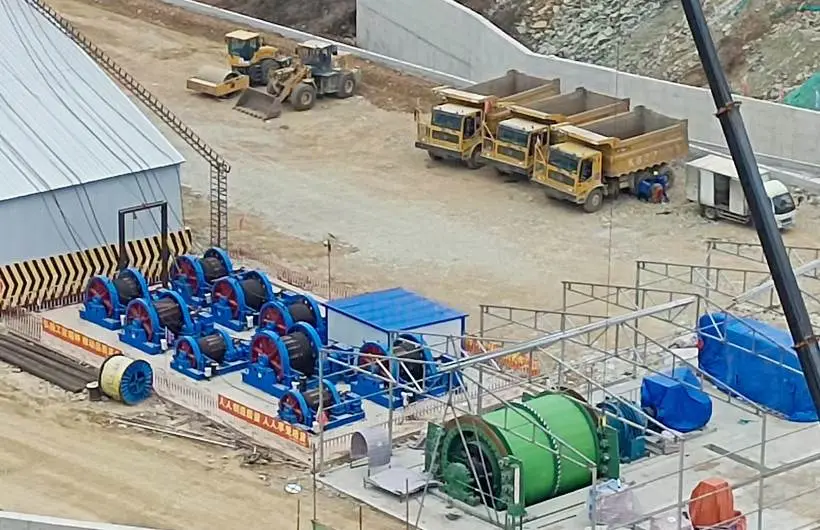

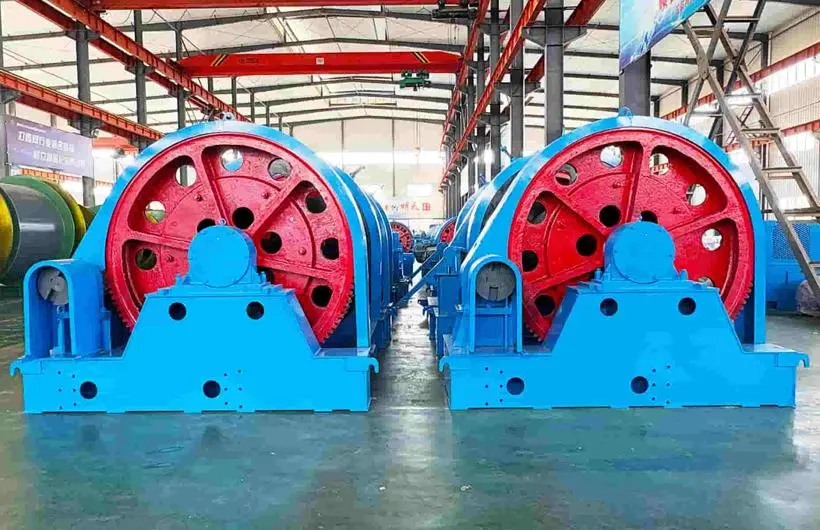

The JZ series shaft sinking winch is primarily used for suspending excavation equipment such as hoisting platforms, water pumps, water pipes, grouting pipes, and air ducts, as well as for tensioning and stabilizing ropes during vertical shaft excavation in coal, metal, and non-metallic mines. The winch is primarily used to replace the tail rope connecting the two hoist cages, preferably flat rope. It can also be used as a shaft winch, offering the same performance as a vertical shaft winch.
The JZ series shaft sinking winch is primarily used for suspending excavation equipment such as hoisting platforms, water pumps, water pipes, grouting pipes, and air ducts, as well as for tensioning and stabilizing ropes during vertical shaft excavation in coal, metal, and non-metallic mines. The winch is primarily used to replace the tail rope connecting the two hoist cages, preferably flat rope. It can also be used as a shaft winch, offering the same performance as a vertical shaft winch.
| Model | Steel wire most greatly static tensity KN | Drum capacity m | Steel wire fast speed m/s | Steel wire slow speed m/s | Steel wire diameter mm | Motor power KW | Motor voltage V | Machine diamention | Total weight KG |
| mm | |||||||||
| JZA-5/1000 | 50 | 1000 | 0.19 | 0.095 | 23 | 22 | 380 | 1400*600*150 | 3700 |
| JZA-10/1500 | 100 | 1500 | 0.32 | 0.16 | 32 | 37 | 380 | 1400*600*150 | 7200 |
| JZ-5/400 | 50 | 400 | 0.11 | 0.058 | 26 | 11 | 380 | 1400*600*150 | 2100 |
| JZ-10/800 | 100 | 800 | 0.142 | 0.092 | 32 | 22 | 380 | 1400*600*150 | 5300 |
| JZ-16/1300 | 160 | 1000 | 0.1 | 0.05 | 40 | 30 | 380 | 11300 | |
| JZ-16/1300P | 160 | 1000 | 0.1 | 0.05 | 40 | 30 | 380 | 1400*600*150 | |
| JZ-25/1300 | 250 | 1050 | 0.08 | 0.04 | 52 | 45 | 380 | 2000*1000*150 | 14550 |
| JZ-25/1300P | 250 | 1050 | 0.08 | 0.04 | 52 | 45 | 380 | 2000*1000*150 | |
| JZ-40/1800 | 400 | 1250 | 0.091 | 0.043 | 60 | 75 | 380 | 2000*1000*150 | |
| JZ-40/1800P | 400 | 1250 | 0.091 | 0.043 | 60 | 75 | 380 | 2000*1000*150 | 26000 |
| 2JZ-16/1300P | 2x160 | 1000 | 0.1 | 0.05 | 40 | 55 | 380 | 1400*600*150 | |
| 2JZ-25/1300P | 2x250 | 1050 | 0.08 | 0.04 | 52 | 90 | 380 | 2000*1000*150 | 27600 |
