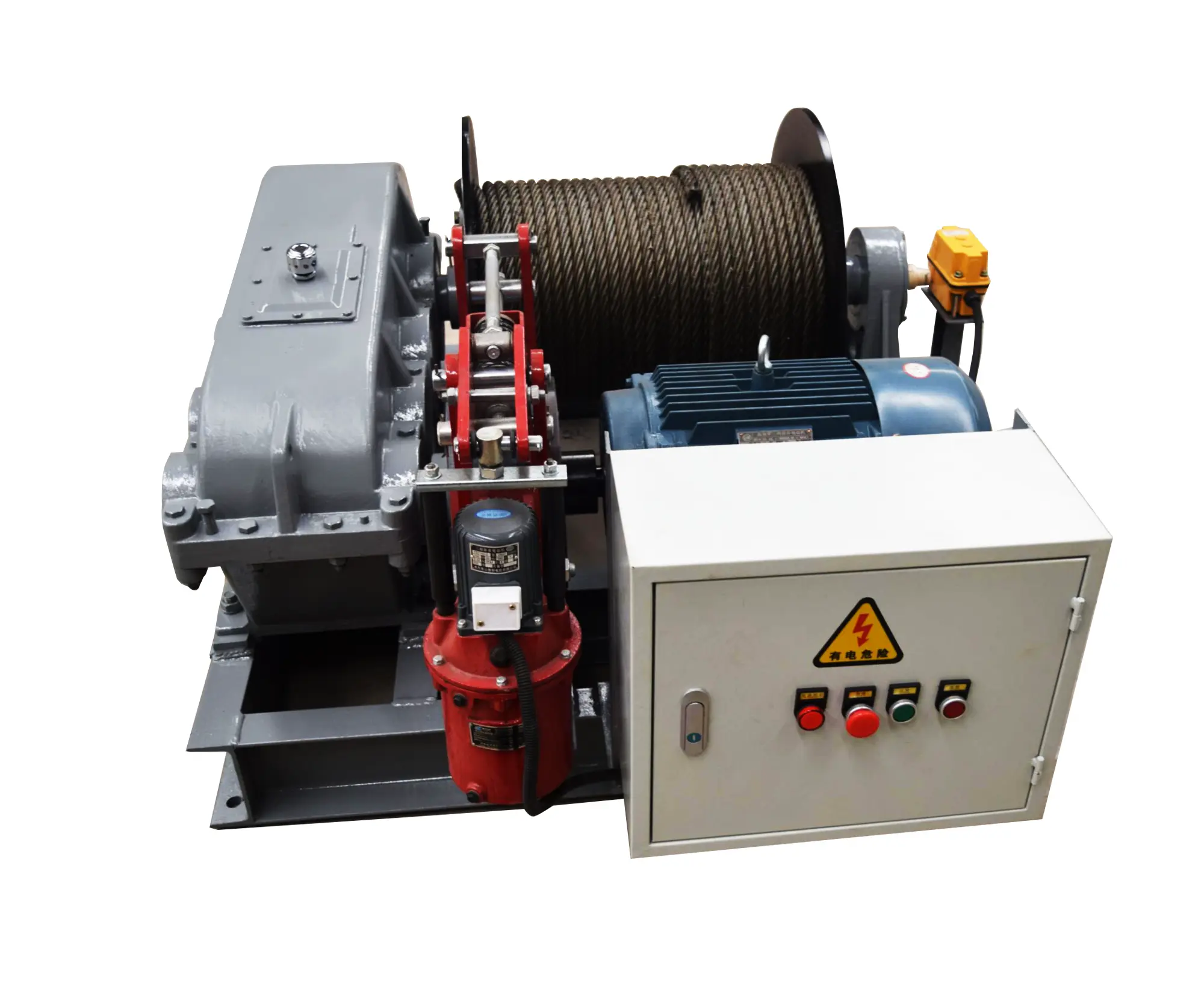

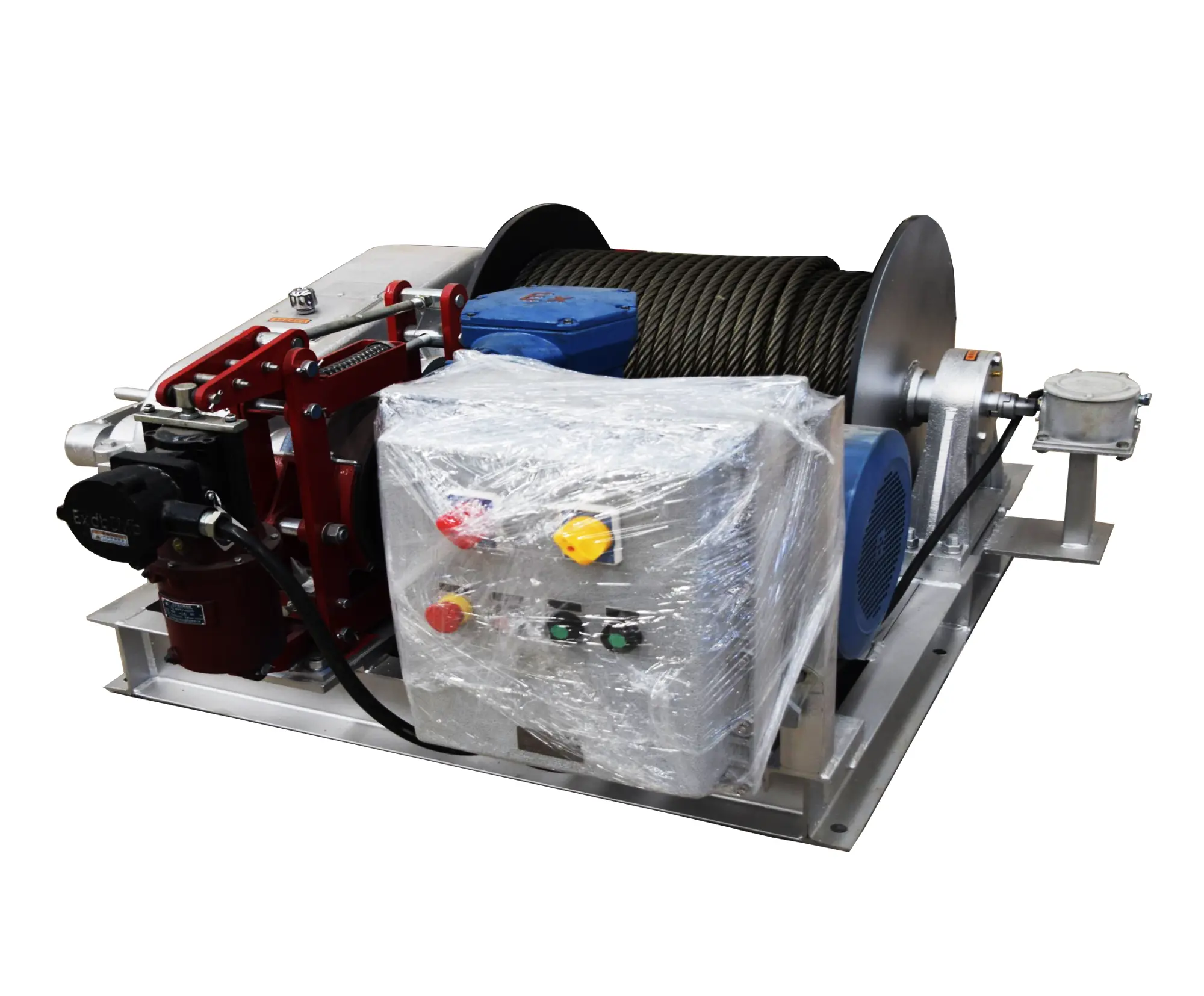

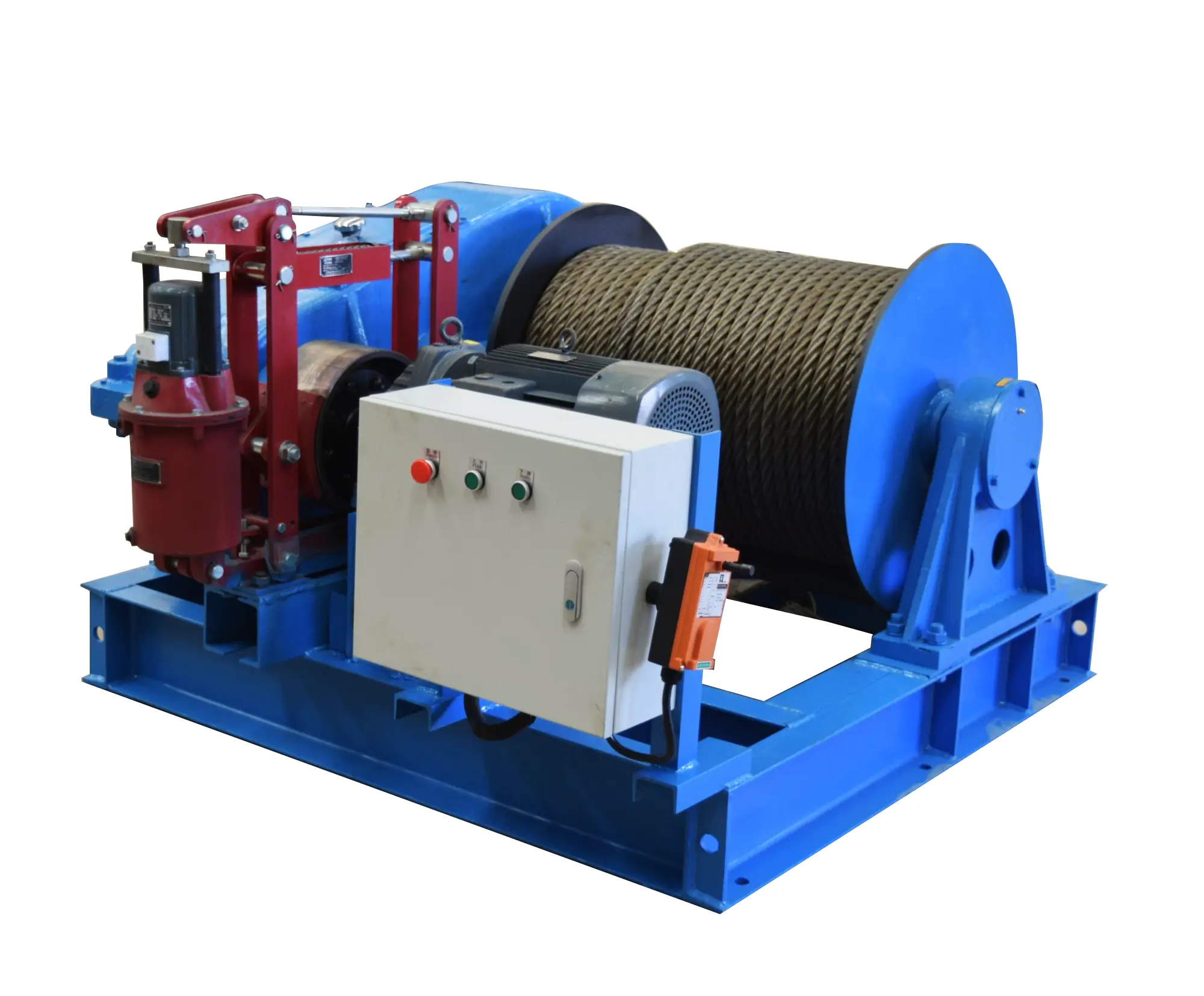

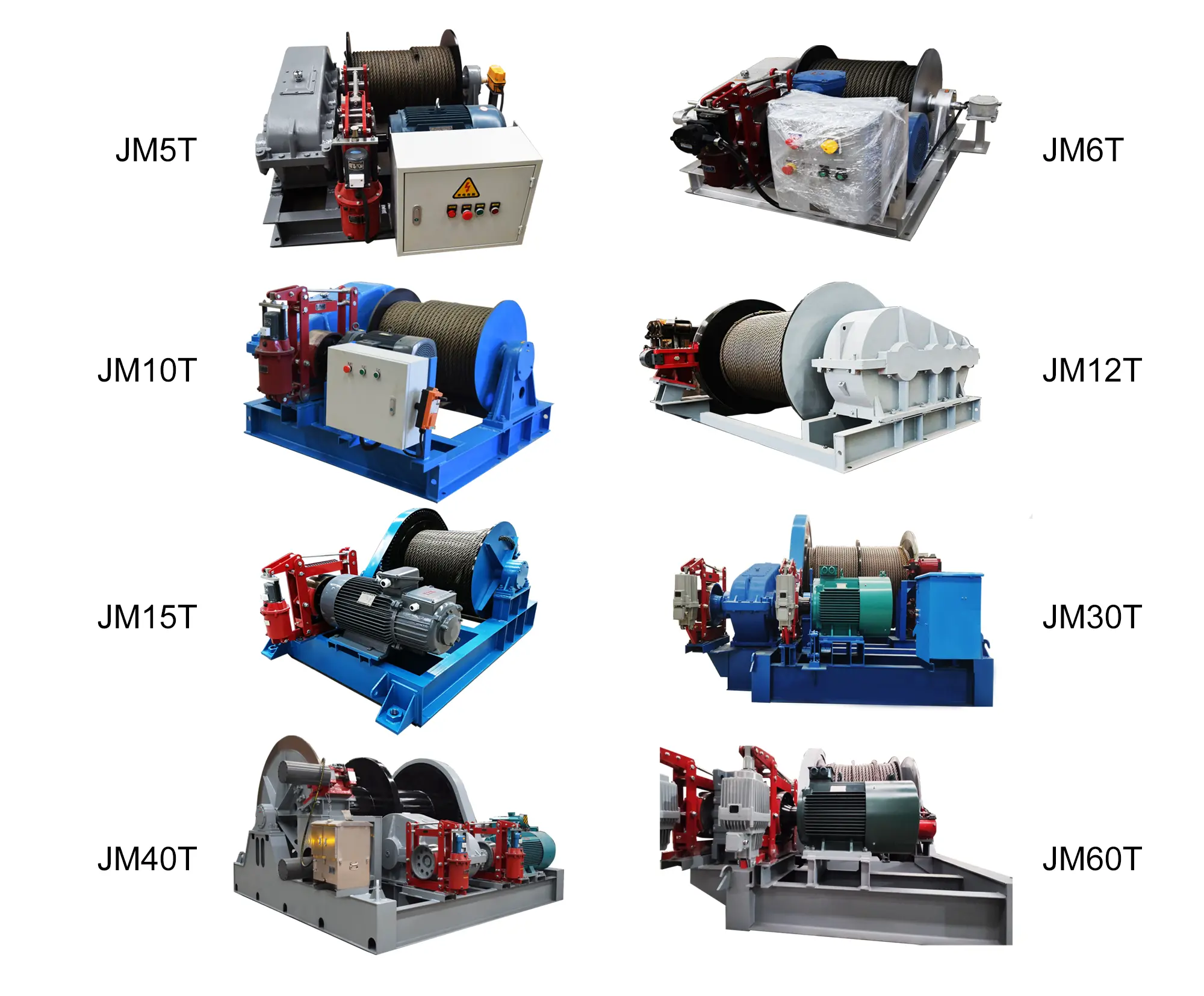

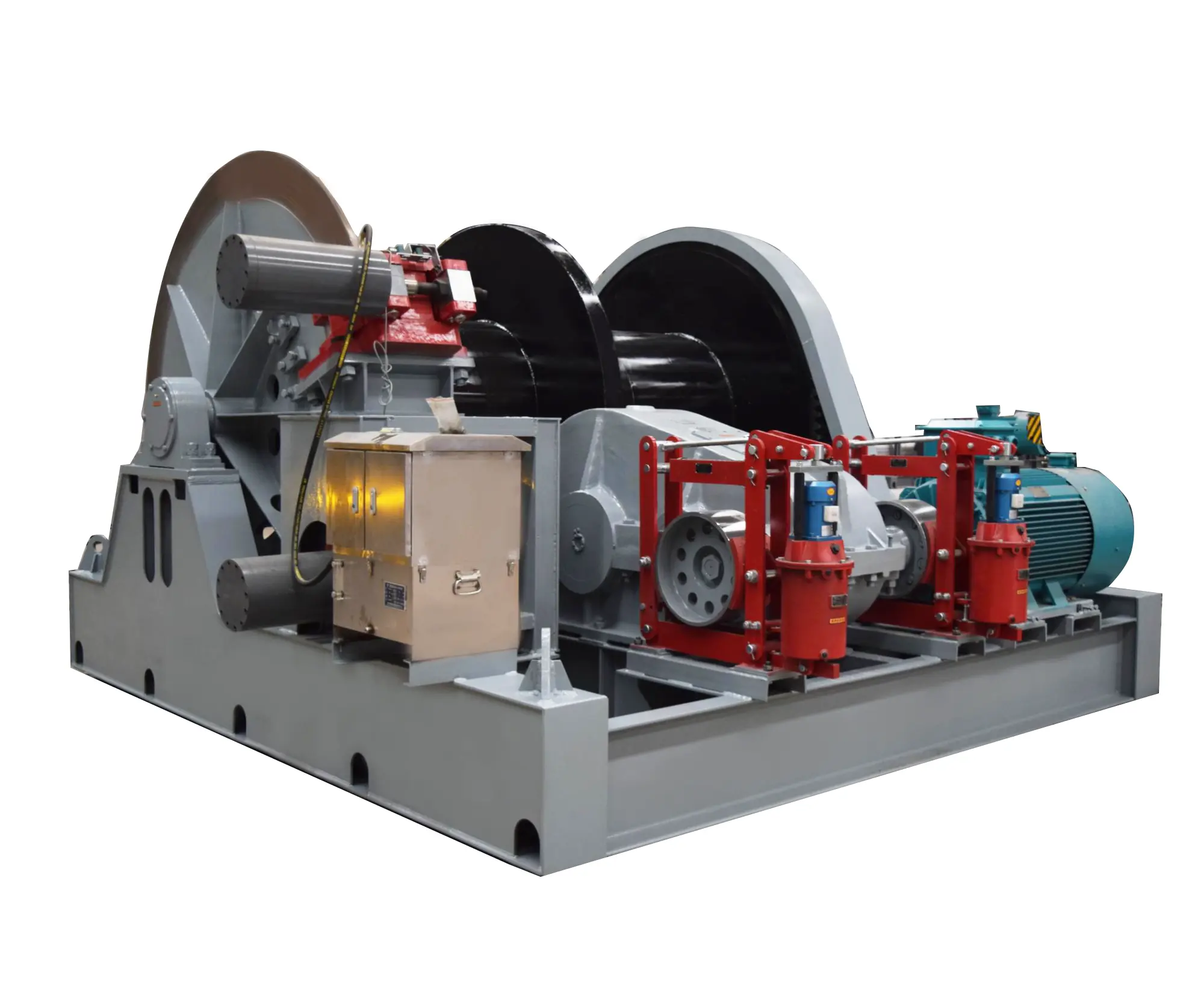

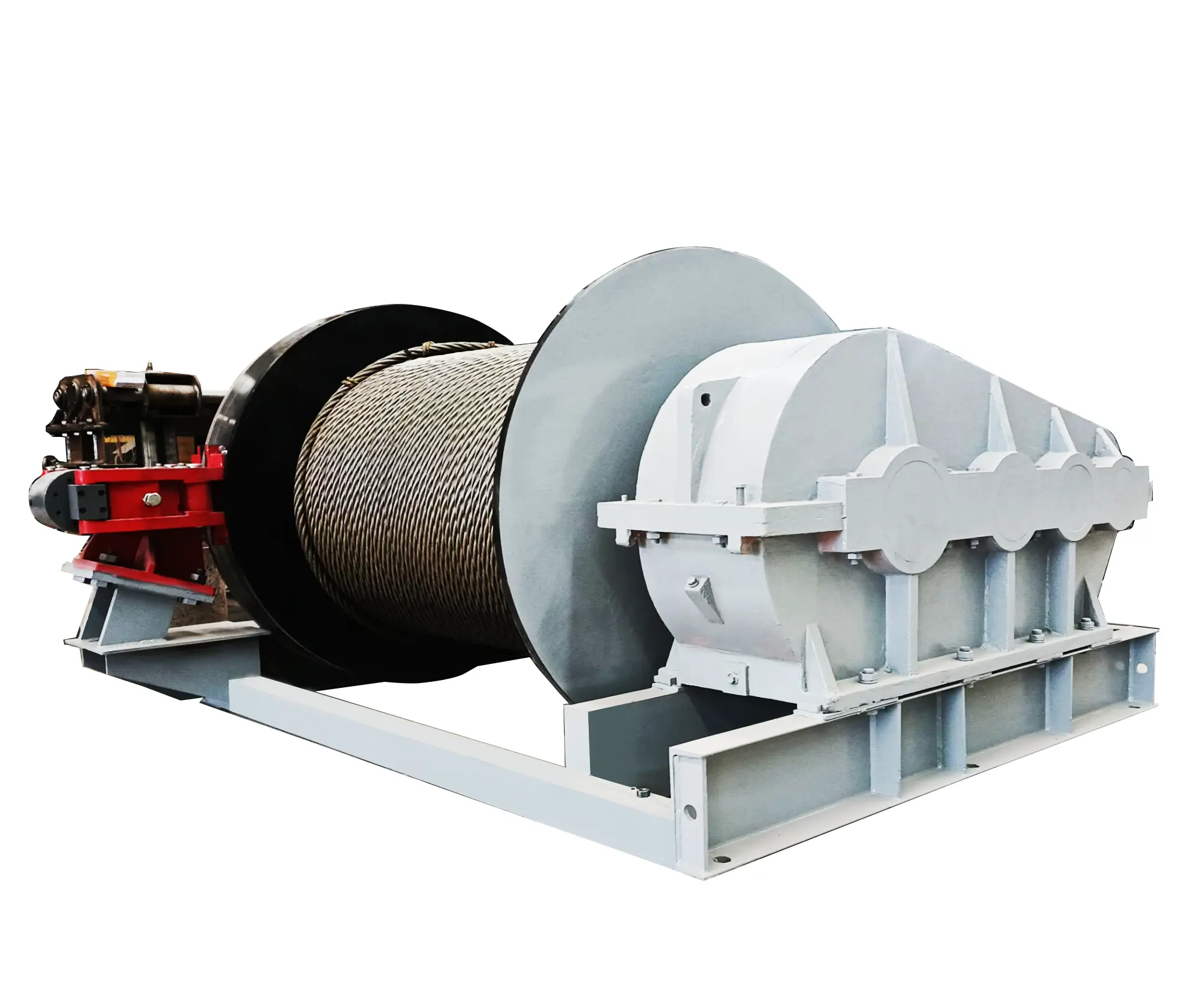

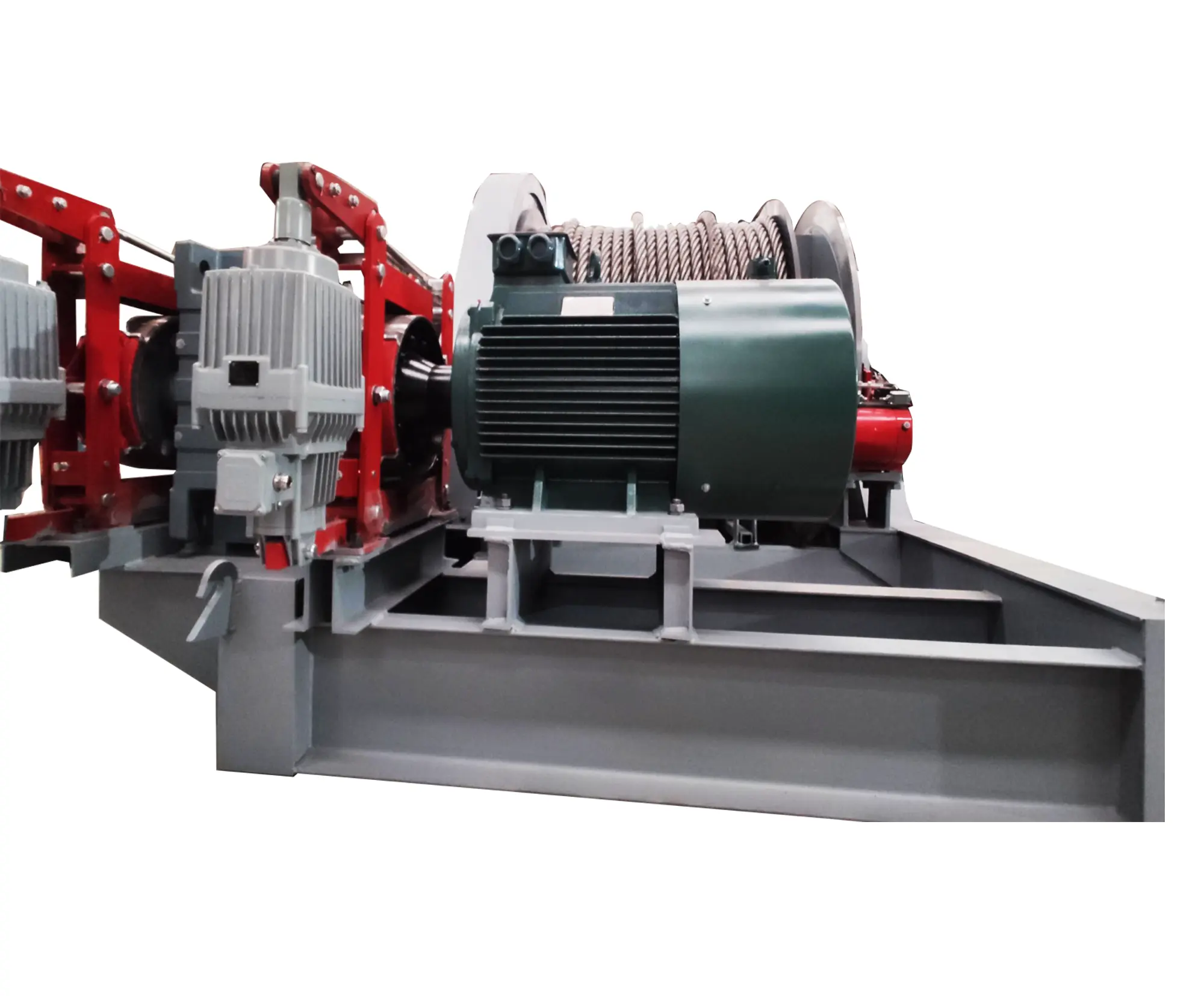

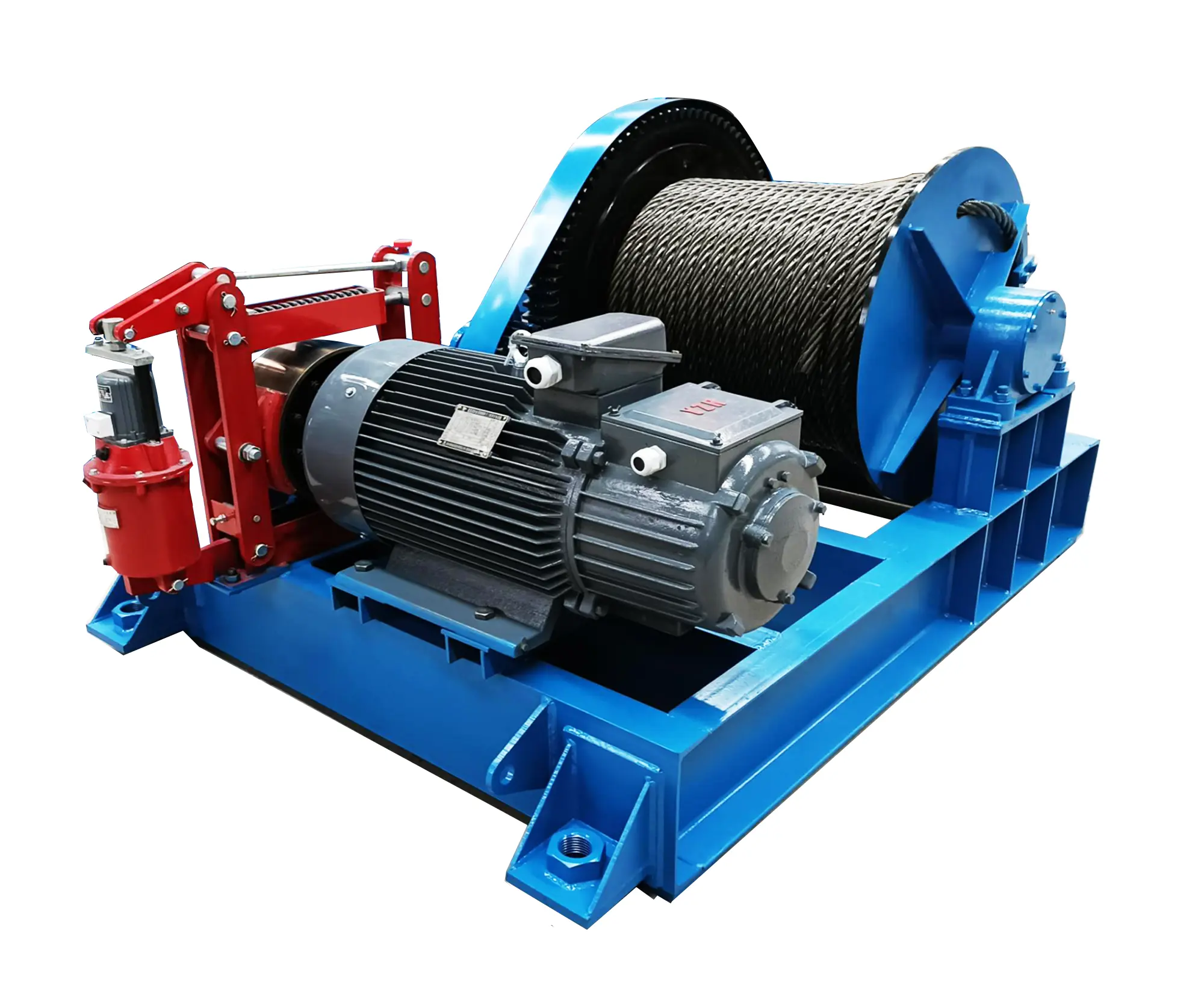

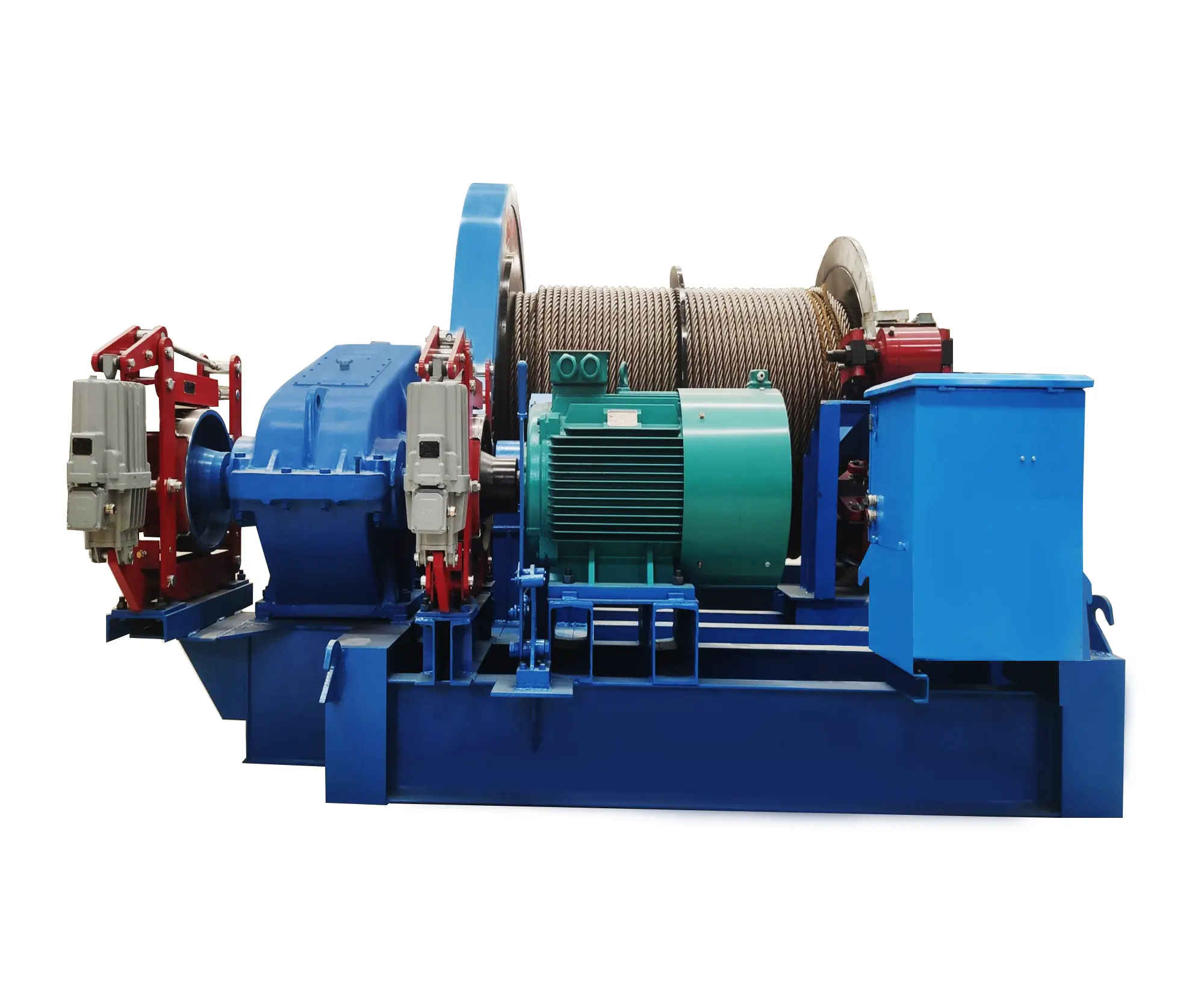

JM series slow winch
JM winch is suitable for slow traction and other auxiliary handling work in coal mines. The motor and electronic control equipment of the winch are flameproof and suitable for places with coal dust and gas in coal mines. The transmission system of JM series slow winch JM winch adopts a one-stage worm gear and a two-stage cylindrical gear transmission, which is safe and reliable to use and easy to maintain.
JM series slow winch
JM winch is suitable for slow traction and other auxiliary handling work in coal mines. The motor and electronic control equipment of the winch are flameproof and suitable for places with coal dust and gas in coal mines. The transmission system of JM series slow winch JM winch adopts a one-stage worm gear and a two-stage cylindrical gear transmission, which is safe and reliable to use and easy to maintain.
| JM slow winch parameters Technical Parameters | ||||||||
| model | Rated tensile force（KN) | Average rope speed(m/min) | Rope capacity(m) | Wire rope diameter | Motor Model | Motor power | Reducer | Machine weight(kg) |
| JM1 | 10 | 15 | 80 | φ9 | Y112M-6 | 2.2 | ZQ250 | 270 |
| JM1.6 | 16 | 16 | 115 | φ12.5 | Y132M-6 | 5.5 | ZQ350 | 500 |
| JM2 | 20 | 16 | 100 | φ12.5 | Y160M-6 | 7.5 | ZQ350 | 550 |
| JM3.2 | 30 | 9.5 | 150 | φ15.5 | Y160M-6 | 7.5 | ZQS470 | 700 |
| JM5 | 50 | 9.5 | 240 | φ21.5 | YZR160L-6 | 11 | ZQS670 | 1100 |
| JM6 | 60 | 9.5 | 200 | φ24 | YZR180L-6 | 15 | ZQS670 | 1300 |
| JM8 | 80 | 8 | 250 | φ26 | YZR180L-5 | 15 | ZQS740 | 2000 |
| JM10 | 100 | 8 | 200 | φ30 | YZR200L-6 | 22 | ZQS790 | 2200 |
| model | Rated tensile force（KN) | Average rope speed(m/min) | Rope capacity(m) | Wire rope diameter | Motor Model | Motor power | Dimensions | Machine weight(kg) |
| JM110 | 100 | 8 | 200 | φ30 | YZR200L-6 | 22 | 2280*1500*950 | 2500 |
| JM12.5 | 125 | 10 | 300 | φ34 | YZR225M-6 | 30 | 2880*2200*1550 | 3000 |
| JM16 | 160 | 10 | 500 | φ37 | YZR250M-8 | 37 | 3750*2400*1850 | 3300 |
| JM20 | 200 | 10 | 600 | φ43 | YZR280M-8 | 45 | 3950*2560*1950 | 7100 |
| JM25 | 250 | 9 | 700 | φ48 | YZR280M-8 | 55 | 4350*2800*2030 | 8000 |
| JM32 | 320 | 9 | 700 | φ52 | YZR315S-8 | 75 | 4500*2850*2100 | 92000 |
| JM50 | 500 | 8 | 800 | φ60 | YZR315M-8 | 90 | 4930*3050*2250 | 13000 |
| JM65 | 650 | 10 | 2400 | φ64 | LA8315-8AB | 160 | 5900*4680*3200 | 21000 |
