The motor transmits power to the drum around which the steel wire rope is wound through a speed redu
Learn More
The multi-rope friction hoist is mainly composed of an electric motor, a reducer, a friction wheel,
Learn More
The electric motor transmits power to the drum around which the steel wire rope is wound through the
Learn More
The JKMD mining hoist is a friction-type (multi-rope) mine hoist used for deep shaft lifting in coal
Learn More
When the main motor is started, the power is transmitted from the rotor of the motor to the high-spe
Learn More

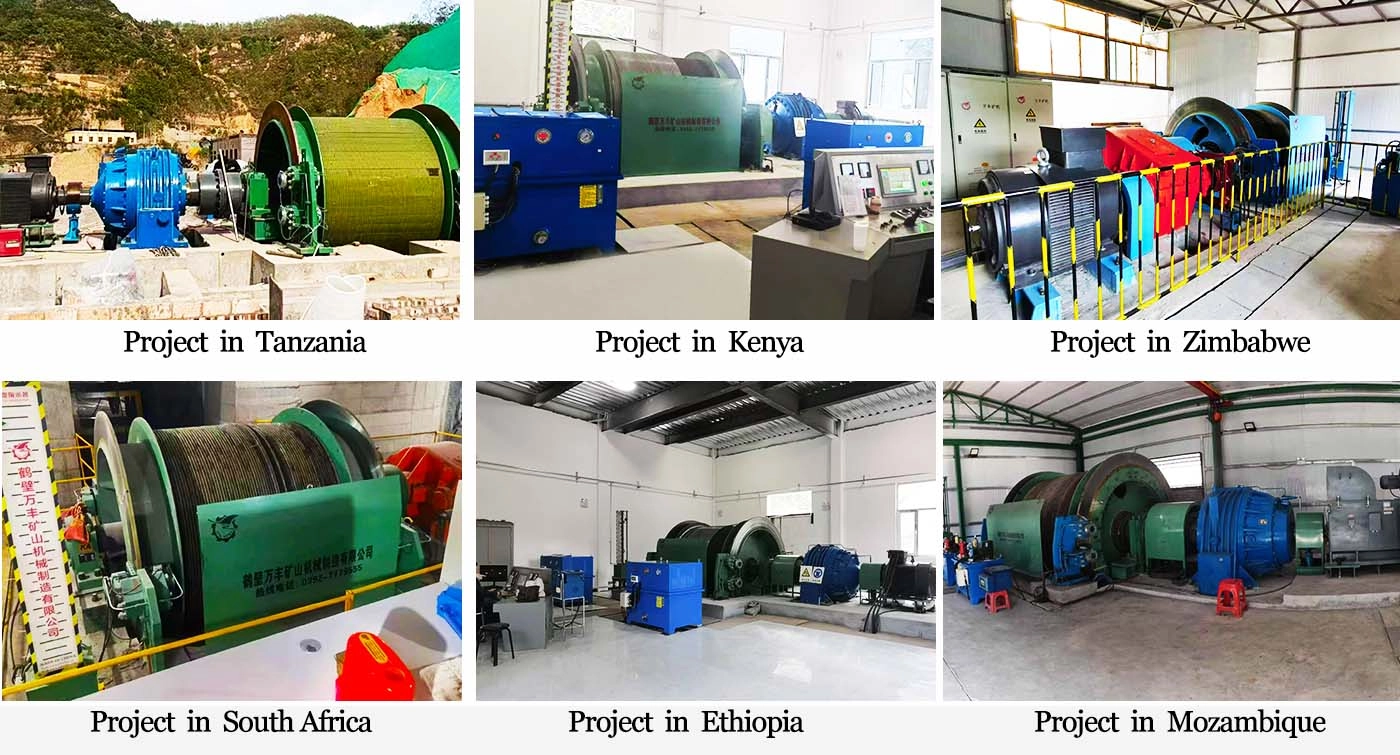

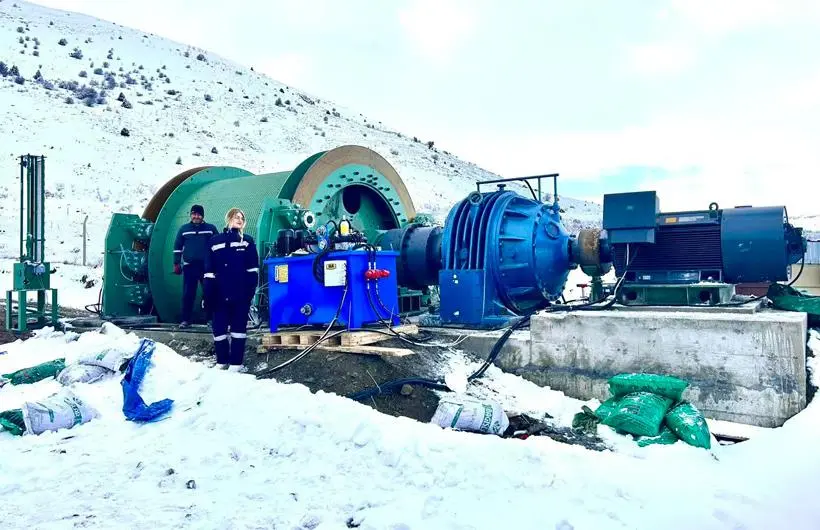

Product application scope

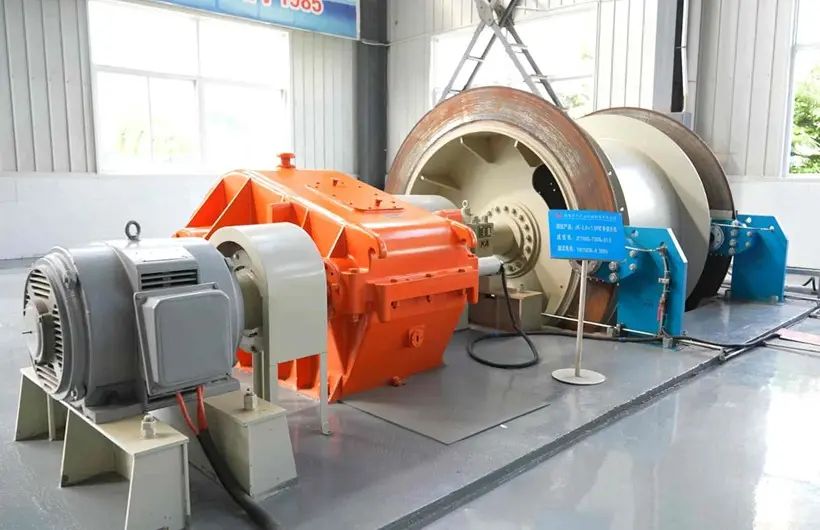

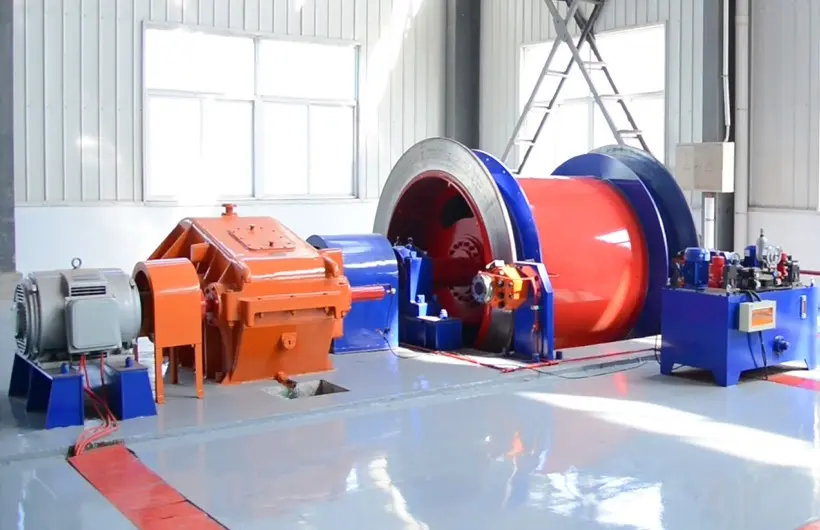

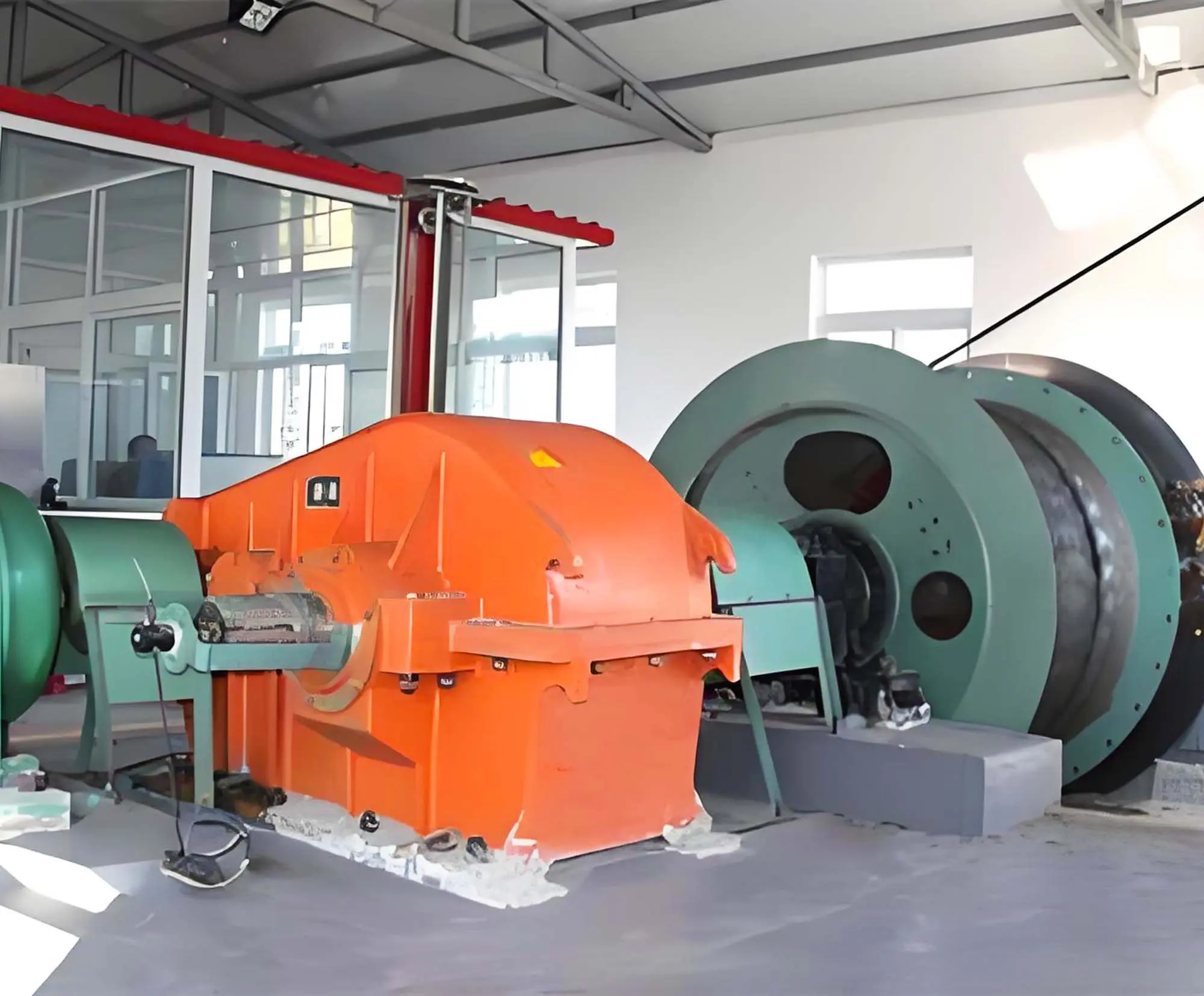

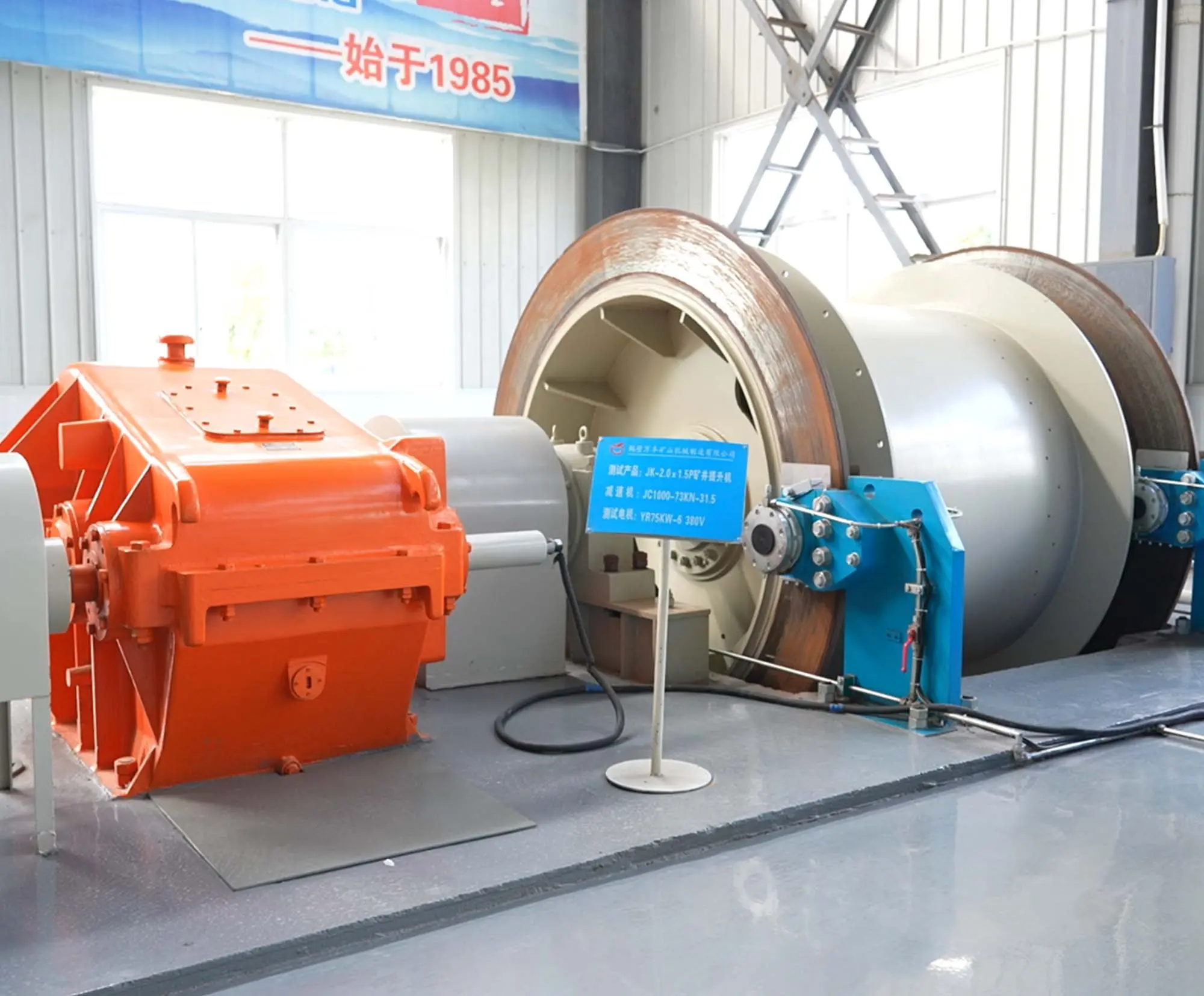

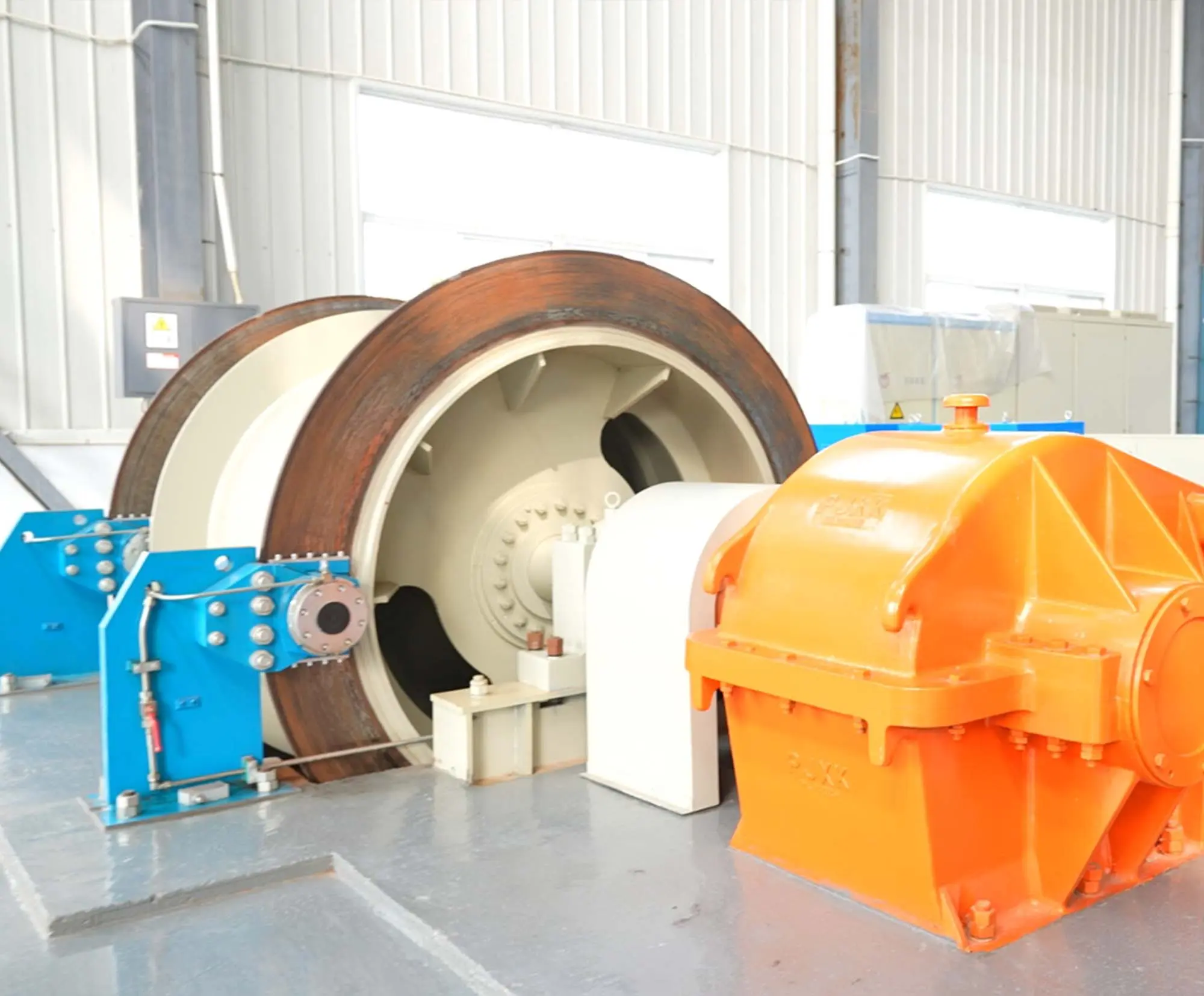

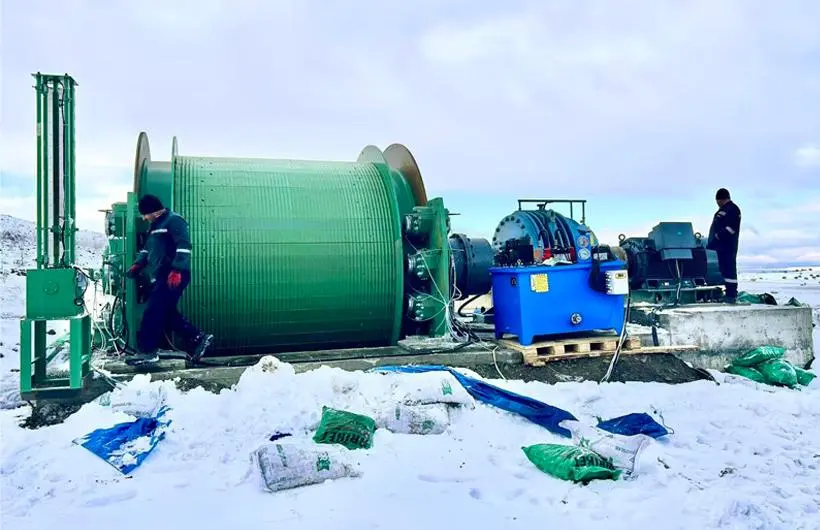

The JK and 2JK series single-rope winding type mine hoists are mainly used for lifting coal, materials, personnel and lowering materials and equipment in vertical or inclined shafts of coal mines, metal mines and non-metal mines. They can also be used for other traction transportation purposes.

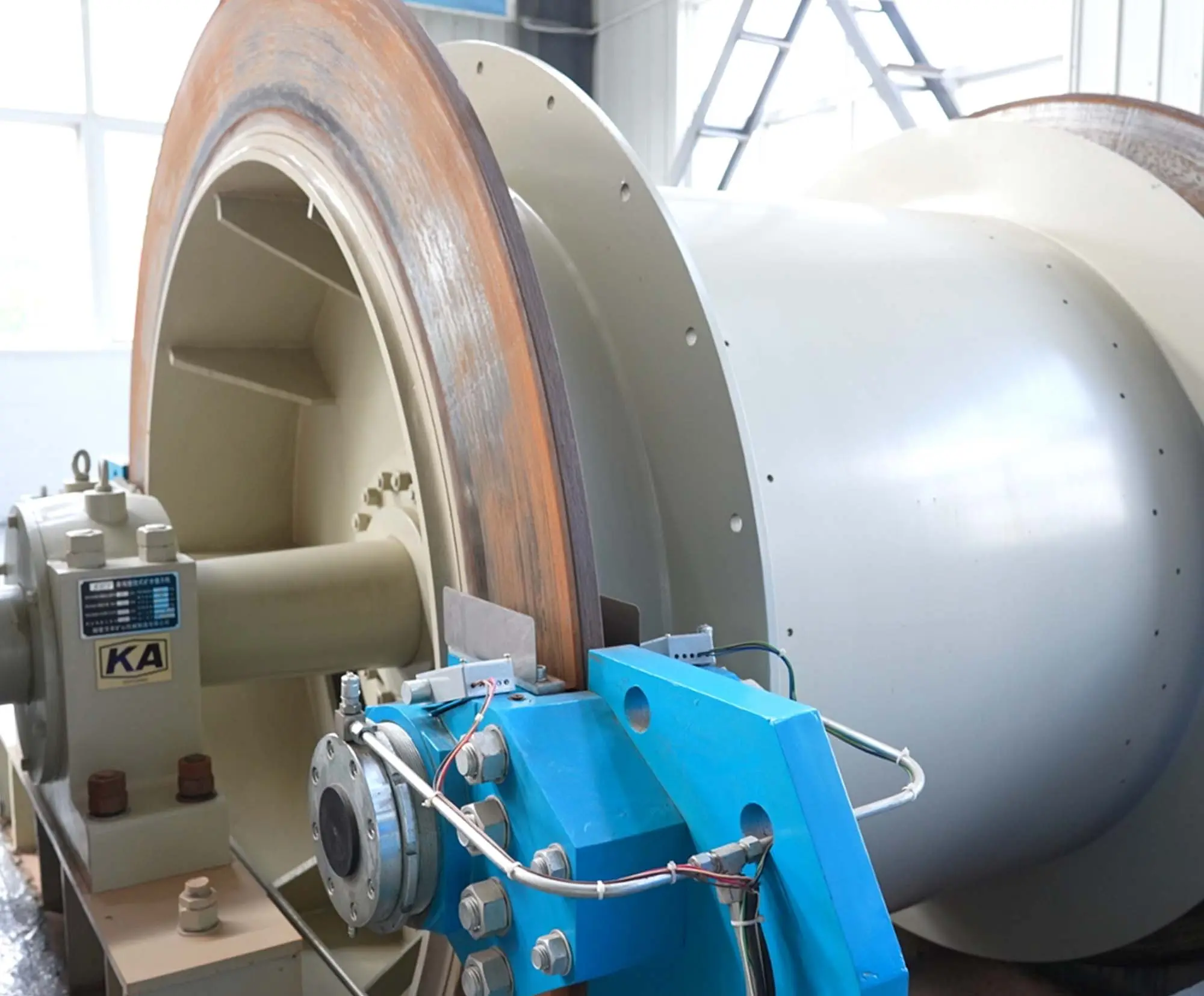

The motor transmits power to the drum wound with steel wire rope through the reducer to achieve the lifting and lowering of the container. Speed regulation is achieved through electrical control; The disc brake is braked by hydraulic and electrical control. Through various position indication systems, the depth indication of the lifting container is achieved; The monitoring and protection of the entire machine are achieved through a combined mechanical, electrical and hydraulic control system composed of various transmitters and control components. The information transmission inside and outside the hoist is realized through computer and network technologies.

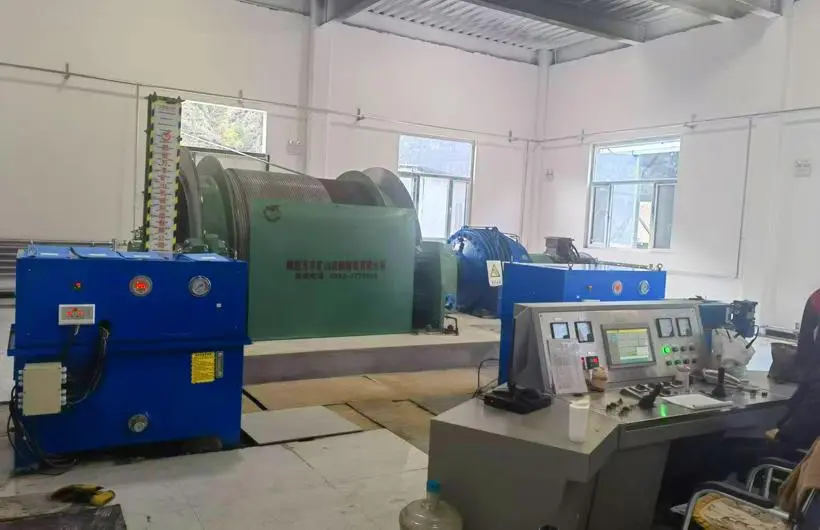

①in a machine room with an air temperature ranging from 0℃ to 40℃, a relative humidity not exceeding 85%(when the ambient temperature is 20℃ ± 5℃), and an altitude not exceeding 1000m. It must be able to prevent liquids from entering the electrical interior, operate in an environment free from severe vibration, jolting, and corrosive gases.
②When the altitude exceeds 1000m, the air cooling effect and the decrease in dielectric strength need to be taken into account. The selected electrical equipment should be designed or used in accordance with the agreement between the manufacturer and the user.
③The working environment temperature is 0℃ to 40℃.
(where rope shifts from lower to upper layer, approx. 1/4 rope length) must be inspected regularly. The rope position must be shifted by 1/4 turn quarterly.
(2) Overloading is strictly prohibited during operation!
(3) Overspeeding and coasting during power failure are strictly prohibited!
(4) For inclined shaft applications:
Main Technical Parameters
| model | JK-2×1.5 P | JK-2×1.8 P | JK-2.5×2.0 P | JK-2.5×2.3 P | ||
| roll | Number | mm | one | one | one | one |
| Diameter | 2000 | 2000 | 2500 | 2500 | ||
| Width | 1500 | 1800 | 2000 | 2300 | ||
| Center distance between two rolls of bamboo slips | — | — | — | — | ||
| wirerope | Maximum static tension | KN | 60 | 60 | 90 | 90 |
| Maximum static tension difference | — | — | — | — | ||
| wirerope | Maximum diameter | mm | 25 | 25 | 31 | 31 |
| Minimum total tensile strength | KN | 396.5 | 396.5 | 621 | 621 | |
| lifting speed | m/s | 5.2 | 5.2 | 4.9 | 4.9 | |
| Raise height or transport length | A layer of wrapping | m | 295 | 366 | 403 | 473 |
| Two layer wrapping | 586 | 730 | 802 | 944 | ||
| Three layer winding | 914 | 1132 | 1245 | 1460 | ||
| motor | Maximum power calculation value | KW | 180 | 180 | 320 | 320 |
| rotational speed | r/min | 1000 | 1000 | 750 | 750 | |
| reducer | model | JC-1000 | JC-1000 | JC-1230 | JC-1230 | |
| speed ratio | 20.0-31.5 | 31.5 | 20.0-31.5 | 31.5 | ||
| Lift weight (excluding electrical components) | Kg | 21200 | 26390 | 28500 | 37570 | |
| Dimensions of the elevator (length x width x height) | mm | 6856x3234x2600 | 7516x3234x2600 | 8023x3610x3100 | 8323x3610x2600 | |
| Rotating part displacement mass excluding motor | Kg | 5600 | 5800 | 11150 | 11450 | |
| Note: (1) For lifting personnel or materials in the vertical shaft, 1 floor; Specially designed for lifting materials, 2 layers; |
||||||
| (2) Two floors for lifting personnel or lifting personnel and materials in inclined shafts and alleys; For lifting materials, there are 3 layers. | ||||||
| (3) The ratio of the diameter of the crown wheel, active friction wheel, guide wheel, or the minimum diameter of the winding part on the drum to the diameter of the thickest steel wire in the steel wire rope shall not be less than 1200; | ||||||
