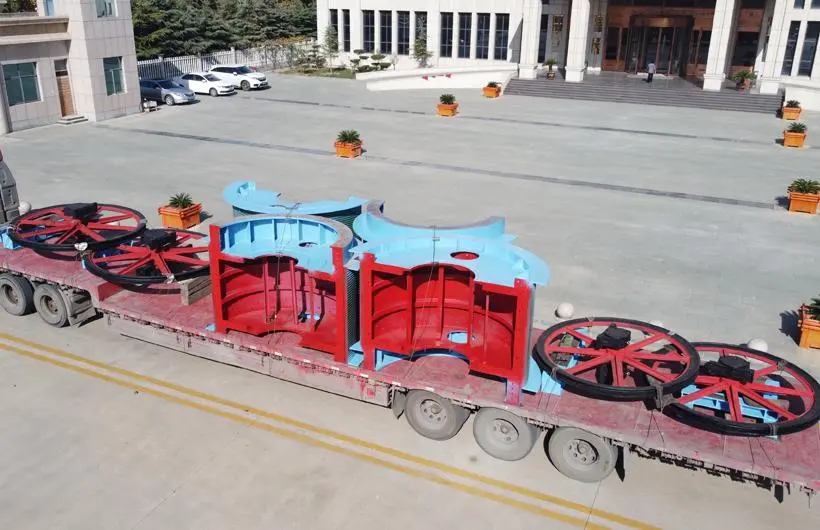

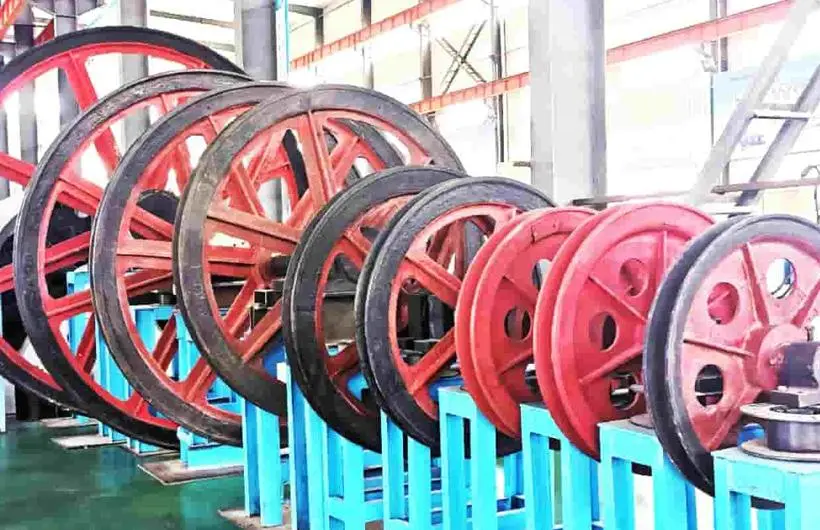

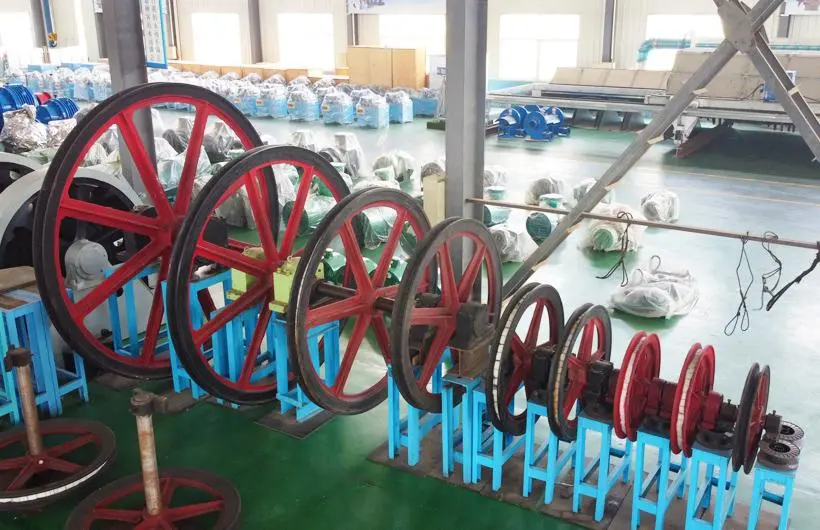

head sheave

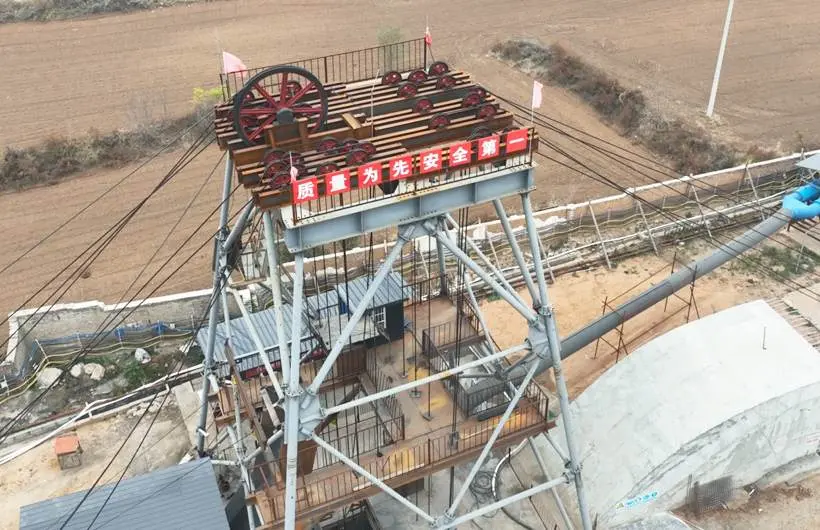

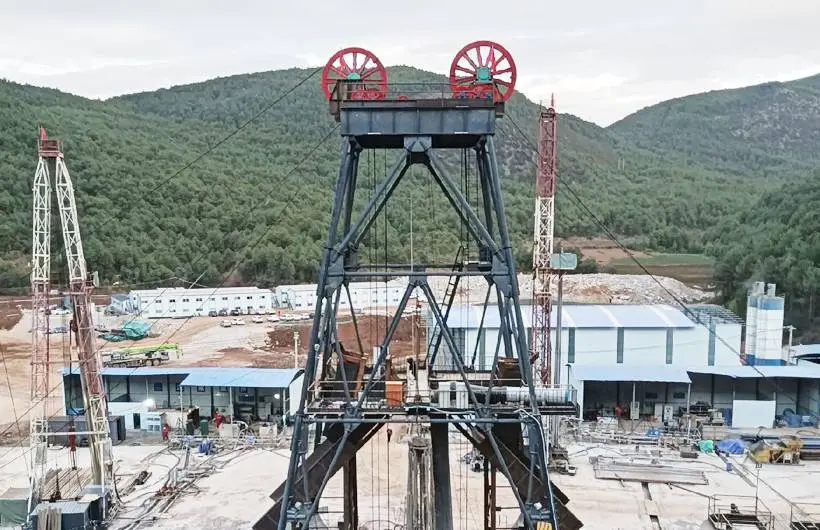

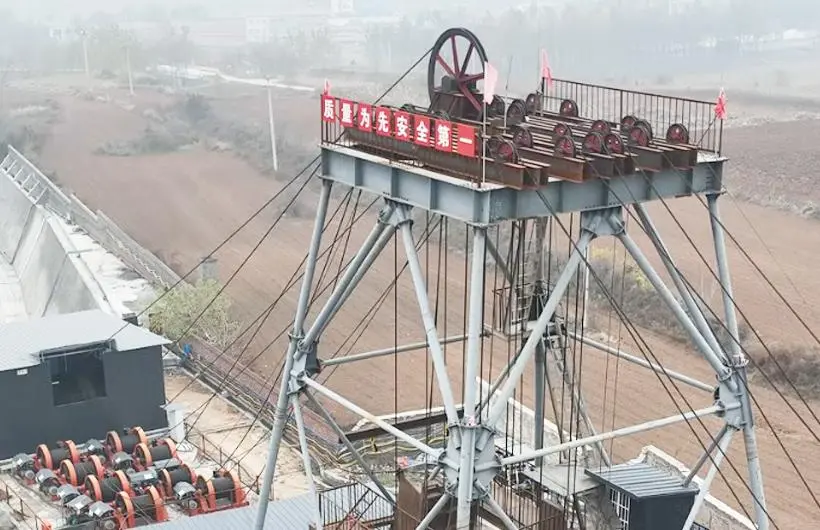

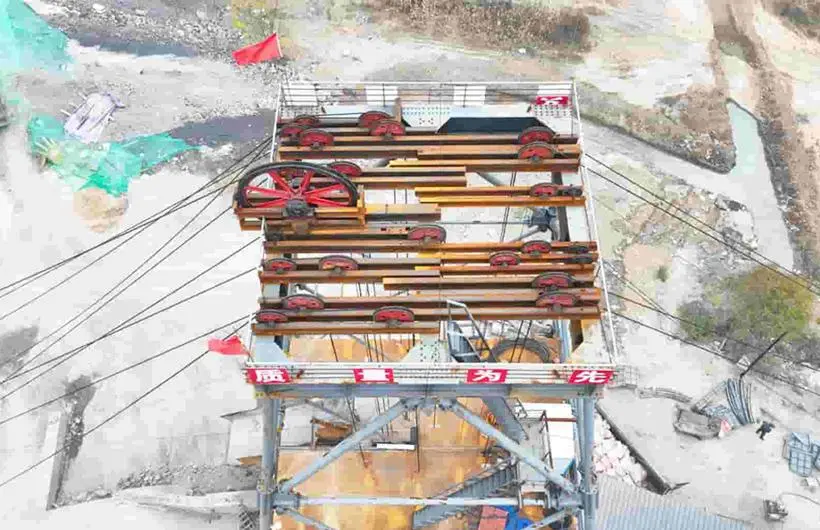

The head sheave is a fixed pulley at the top of the mine shaft frame that adjusts the direction of the wire rope. Its function is to support the wire rope connecting the hoist drum and the hoist container, and to guide the wire rope in a different direction. There are three types of sky sheaves: floating sky sheave, fixed sky sheave above the shaft, and fixed sky sheave for drilling and underground. The types of wire ropes that go with the sky sheave include phosphate-coated wire rope, galvanized wire rope, or smooth wire rope.
The head sheave is a fixed pulley at the top of the mine shaft frame that adjusts the direction of the wire rope. Its function is to support the wire rope connecting the hoist drum and the hoist container, and to guide the wire rope in a different direction. There are three types of sky sheaves: floating sky sheave, fixed sky sheave above the shaft, and fixed sky sheave for drilling and underground. The types of wire ropes that go with the sky sheave include phosphate-coated wire rope, galvanized wire rope, or smooth wire rope.
| Ordinal number |
Model | Maximum diameter of wire rope |
Single wire rope allows maximum static tension kN(t) | Main dimensions | Unit number | Bearing block bolthole Slze Ф*A*B |
weight | ||||||||||
| Trunnion d(H9/d9) |
journal d1(H9/f9) |
The wheel diameter D |
Outer diameter D1 |
Shaft Seat from |
Axial length L |
Center for high H |
The rope round |
Shaft sleeve |
shaft | Retaining ring |
Bearing | ||||||
| 1 | MZS2.1-0-1*0.5 | 23 | 50(5) | 90 | 70 | 500 | 565 | 280 | 430 | 90 | 1-1.1 | 2--1 | 3-1.1 | 4--1 | 5--1 | φ26*70*220 | 130 |
| 2 | MZS2.1-0-1*0.65 | 31 | 100(10) | 100 | 85 | 650 | 775 | 340 | 490 | 100 | 1-1.2 | 2--2 | 3-1.2 | 4--2 | 5--2 | φ26*70*250 | 230 |
| 3 | MZS2.1-0-1*0.8 | 40 | 160(16) | 120 | 100 | 800 | 960 | 400 | 560 | 110 | 1-1.3 | 2--5 | 3-1.3 | 4--3 | 5--3 | φ26*80*280 | 382 |
| 4 | MZS2.1-0-1*1.05 | 52 | 250(25) | 150 | 120 | 1050 | 1260 | 460 | 620 | 120 | 1-1.4 | 2--8 | 3-1.4 | 4--4 | 5--4 | φ26*80*300 | 670 |
| 5 | MZS2.1-0-1*1.25 | 60.5 | 400(40) | 180 | 140 | 1250 | 1495 | 520 | 680 | 140 | 1-1.5 | 2--10 | 3-1.5 | 4--5 | 5--5 | φ26*80*330 | 1088 |
| 6 | MZS2.1-0-1*0.8W | 29 | 100(10) | 120 | 85 | 800 | 920 | 400 | 550 | 100 | 1-1.6 | 2--4 | 3-1.6 | 4--3 | 5--2 | φ26*70*250 | 310 |
| 7 | MZS2.1-0-1*1.05W | 35.5 | 160(16) | 150 | 100 | 1050 | 1200 | 400 | 560 | 110 | 1-1.7 | 2--7 | 3-1.7 | 4--4 | 5--3 | φ26*80*280 | 500 |
