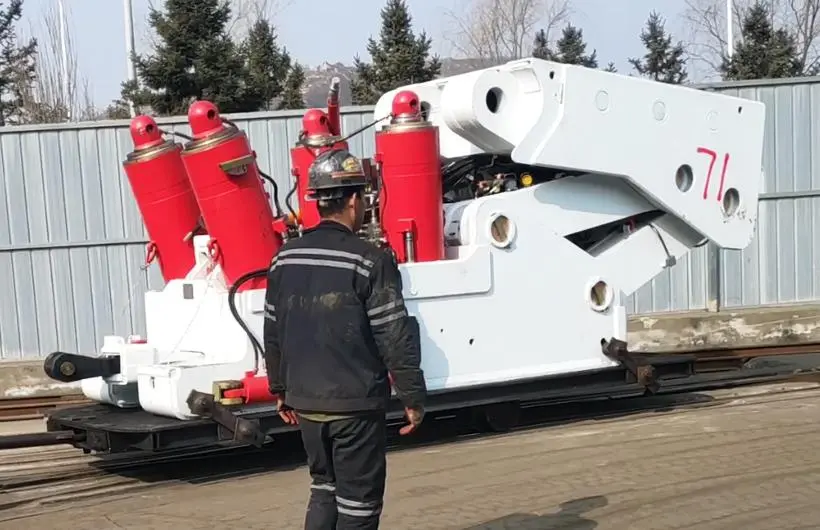

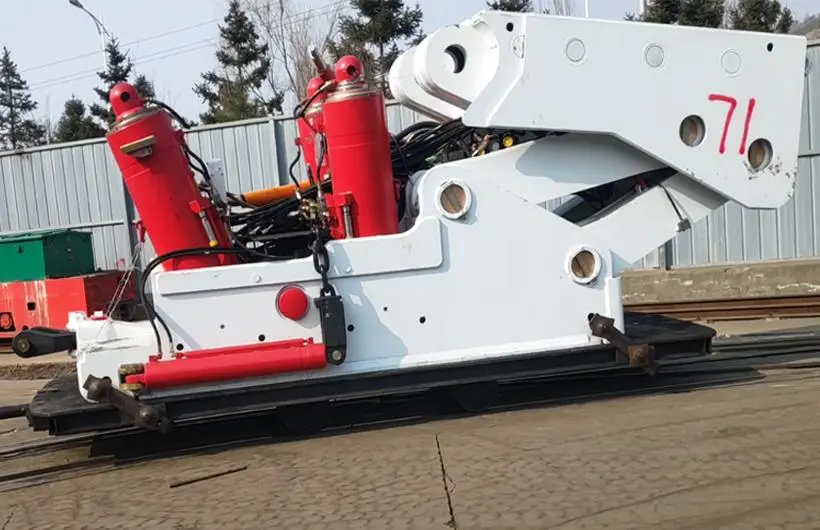

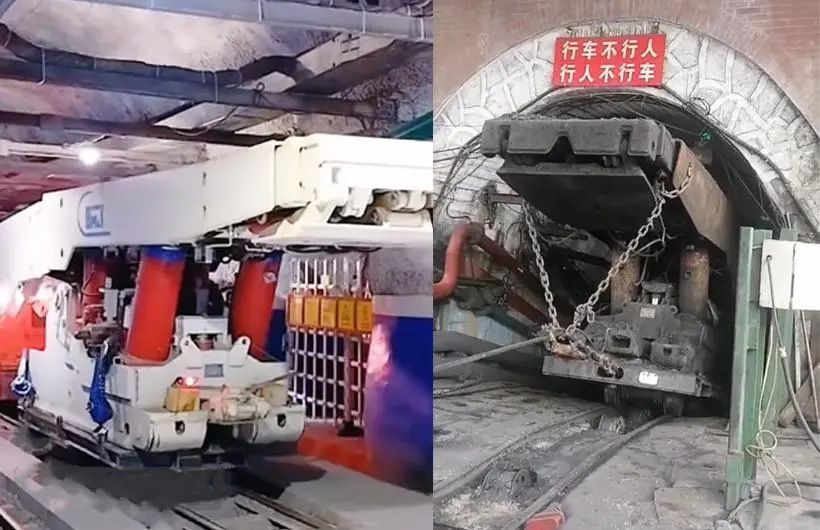

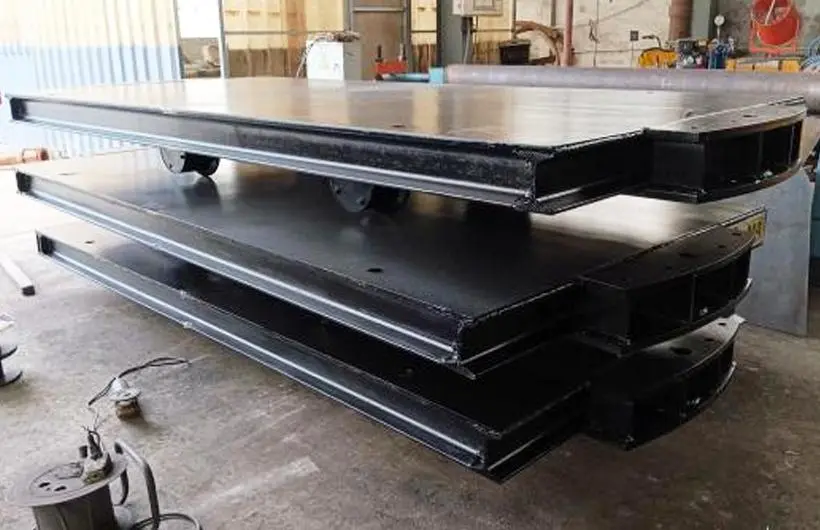

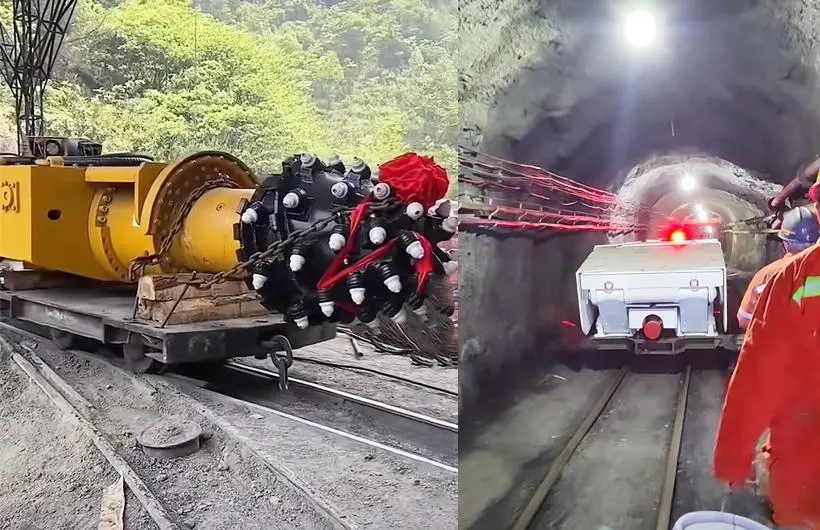

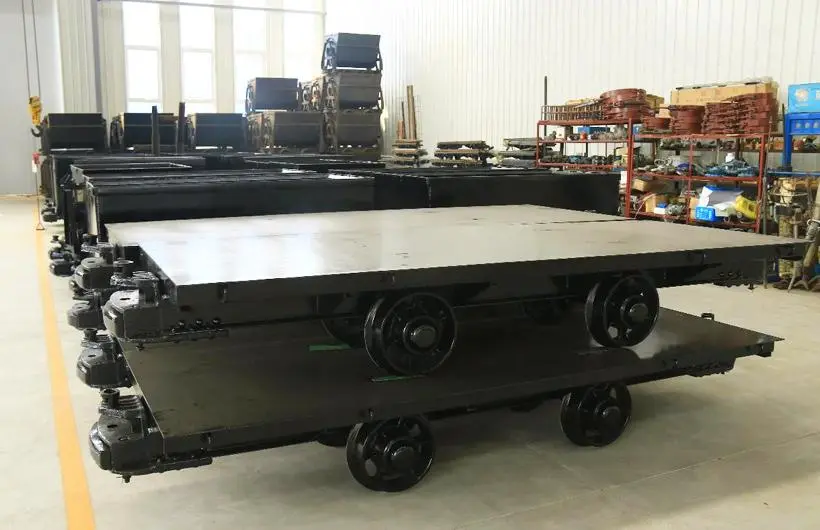

The mining flatbed truck is a mining conveying tool with heavy load, simple structure and low cost. It is mainly used to transport various equipment in the mine. It is widely used in underground mines, transportation equipment along underground tunnels and surface industrial sites, etc. It is mainly welded with steel plate + steel, and uses 8 sets of bearings, all built-in inside the box structure, which can effectively avoid dust erosion, extend service life, and facilitate maintenance. It has the advantages of easy disassembly and assembly, strong load-bearing capacity, long service life, and small deformation of the table.
The mining flatbed truck is a mining conveying tool with heavy load, simple structure and low cost. It is mainly used to transport various equipment in the mine. It is widely used in underground mines, transportation equipment along underground tunnels and surface industrial sites, etc. It is mainly welded with steel plate + steel, and uses 8 sets of bearings, all built-in inside the box structure, which can effectively avoid dust erosion, extend service life, and facilitate maintenance. It has the advantages of easy disassembly and assembly, strong load-bearing capacity, long service life, and small deformation of the table.
| flat-deck mine car Technical Parameters | ||||||||||
| model | Loading capacity（T） | gauge（mm） | Dimensions（mm） | Wheelbase（C) | Wheel diameter(D) | Traction high(H) | Traction（KN) | Deadweight | ||
| long | Width | high | ||||||||
| MPC2-6 | 2 | 600 | 2000 | 880 | 410 | 550 | 300 | 320 | 60 | ≤490 |
| MPC3-6 | 3 | 600 | 2400 | 1050 | 415 | 750 | 300 | 320 | 60 | ≤530 |
| MPC5-6 | 5 | 600 | 3450 | 1200 | 480 | 1100 | 350 | 320 | 60 | ≤900 |
| MPC5-9 | 5 | 900 | 3450 | 1320 | 480 | 1100 | 350 | 320 | 60 | ≤910 |
| MPC5-9A | 5 | 900 | 2100 | 1150 | 480 | 600 | 350 | 320 | 60 | ≤780 |
| MPC10-6 | 10 | 600 | 3350 | 1400 | 342 | 1000 | 220 | 270 | 60 | ≤880 |
| MPC13-6 | 13 | 600 | 3350 | 1400 | 342 | 1000 | 220 | 270 | 60 | ≤1015 |
| MPC15-9 | 15 | 900 | 3600 | 1300 | 406 | 1100 | 350 | 320 | 60 | ≤1320 |
| MPC18-6 | 18 | 600 | 3350 | 1400 | 346 | 1000 | 220 | 272 | 60 | ≤1132 |
| MPC20-6 | 20 | 600 | 3200 | 1380 | 450 | 1100 | 350 | 320 | 60 | ≤1600 |
| MPC26-6 | 26 | 600 | 2400 | 1460 | 390 | 1100 | 240 | 280 | 60 | ≤1133 |
| MPC30-9 | 30 | 900 | 4000 | 1350 | 418 | 1300 | 350 | 320 | 60 | ≤2020 |
| MPC35-9 | 35 | 900 | 3520 | 1350 | 410 | 1200 | 350 | 320 | 60 | ≤2286 |
| MPC40-9 | 40 | 900 | 3600 | 1300 | 406 | 1200 | 350 | 340 | 60 | ≤2047 |
| MPC50-6 | 50 | 600 | 3450 | 1400 | 438 | 1300 | 350 | 175 | 60 | ≤2450 |
| MPC50-9 | 50 | 900 | 3450 | 1400 | 438 | 1300 | 350 | 175 | 60 | ≤2550 |
| MPC55-6 | 55 | 600 | 3450 | 1400 | 438 | 1300 | 350 | 175 | 60 | ≤2522 |
| MPC55-9 | 55 | 900 | 3450 | 1400 | 438 | 1300 | 350 | 175 | 60 | ≤2630 |
